Home >> Buick >> 2011 >> Regal L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Windows

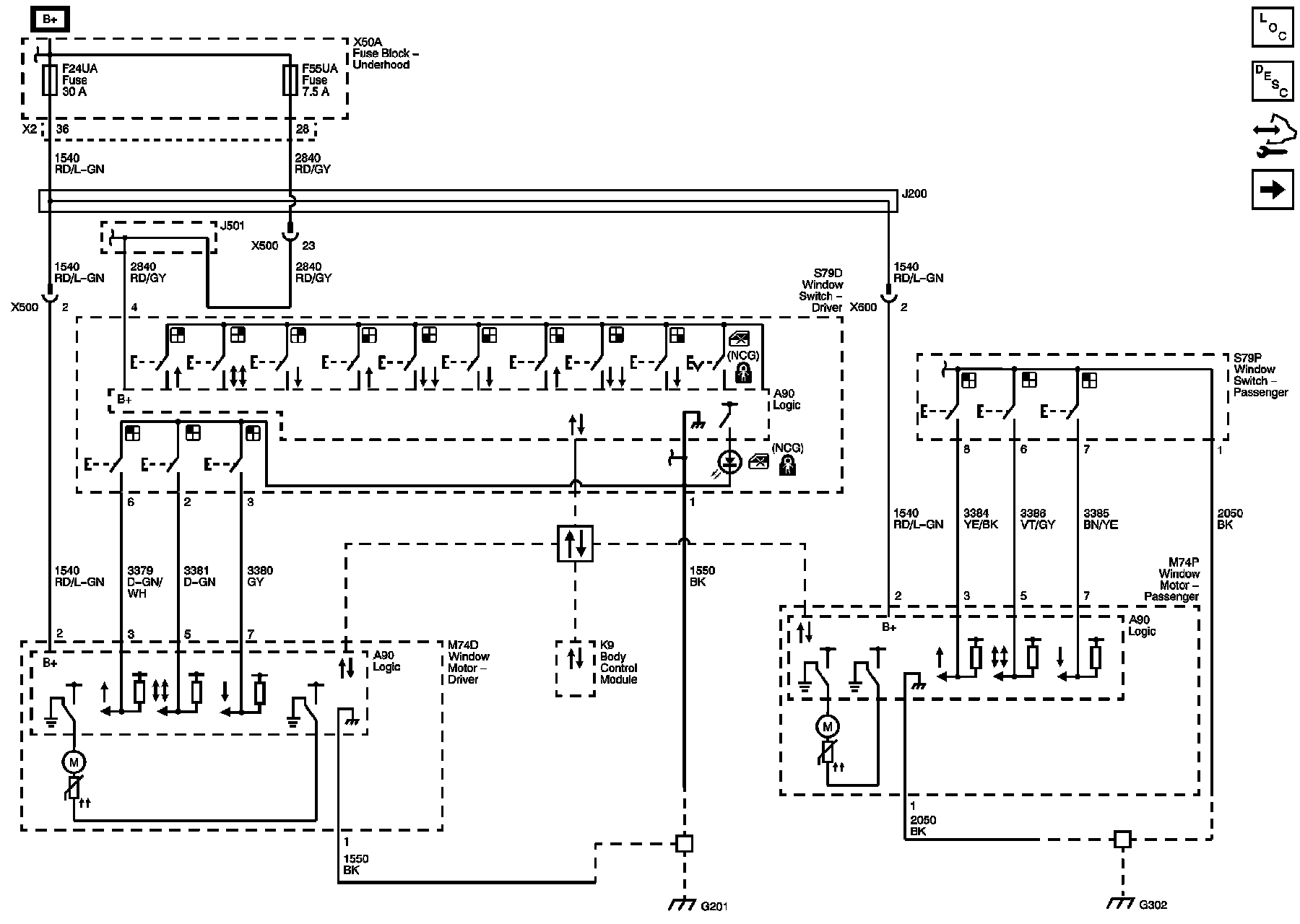

Moveable Window Schematics

Window Switches and Motors - Front Doors





Window Switches and Motors - Rear Doors
