A26 HVAC Controls
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

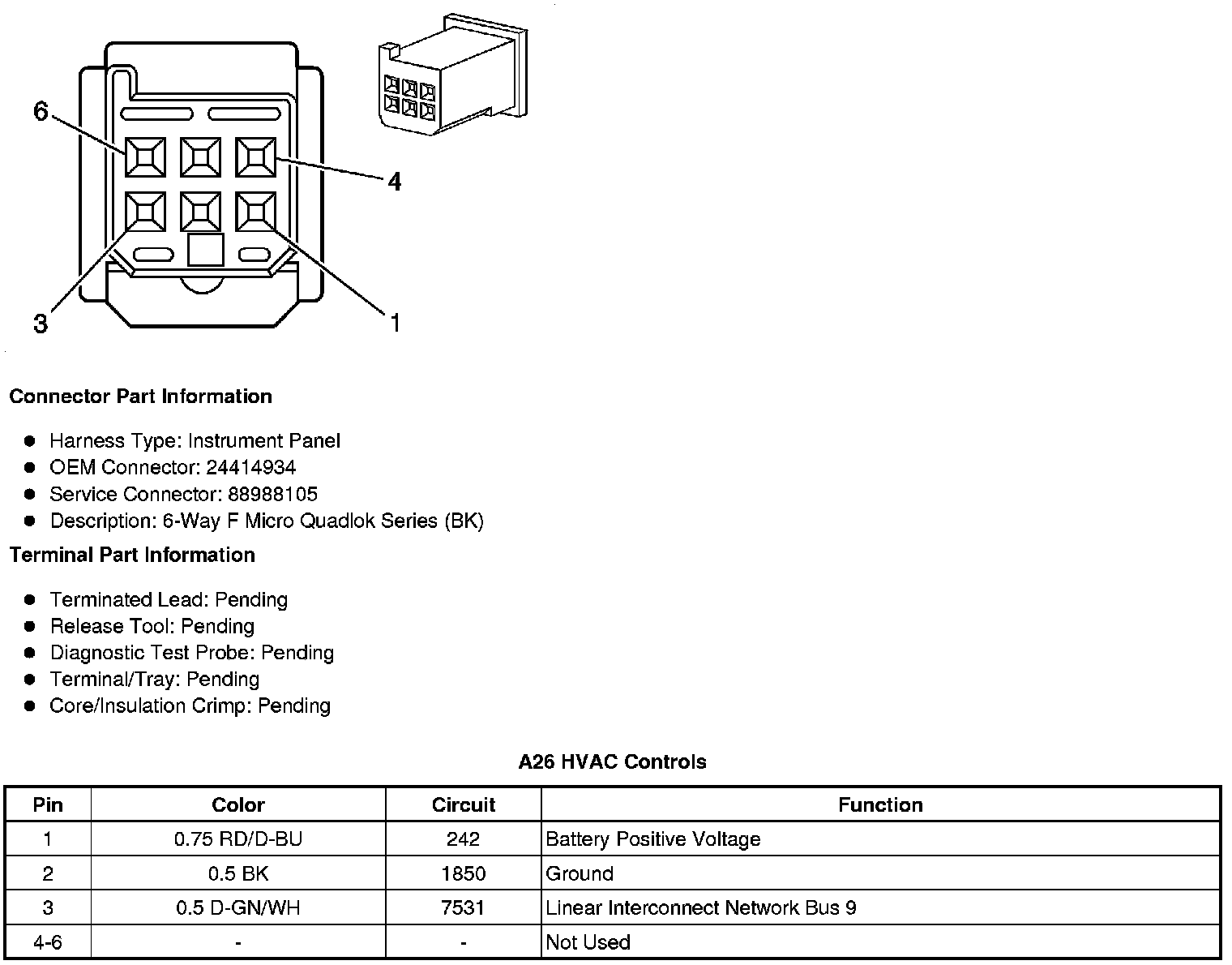

A26 HVAC Controls
Component Connector End Views
A26 HVAC Controls
