Radiator Support Components

Front of Vehicle/Engine Compartment Component Views

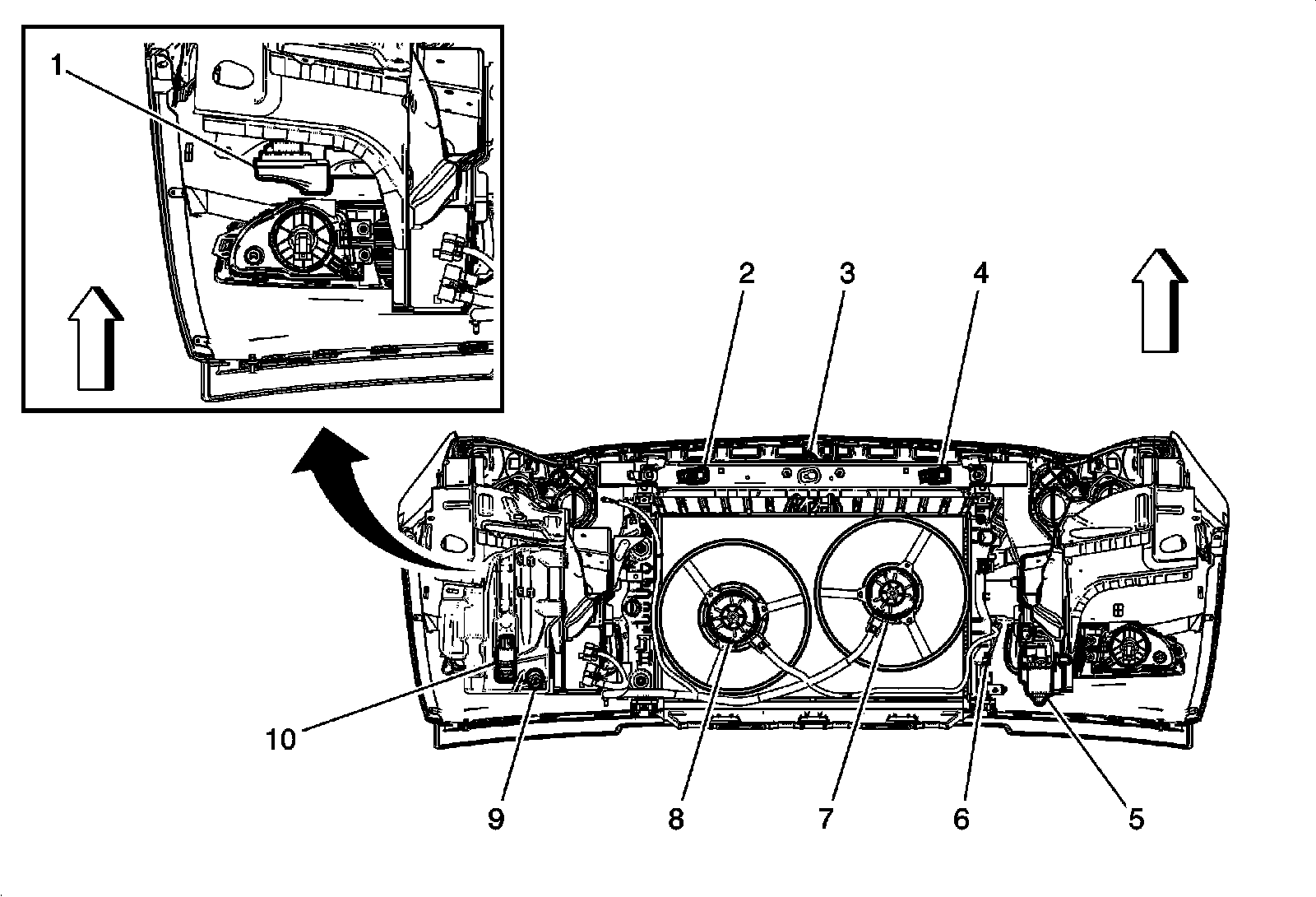

Radiator Support Components




1 - P13 Horn Assembly
2 - B59L Front Impact Sensor - Left
3 - B55 Hood Ajar Switch
4 - B59R Front Impact Sensor - Right
5 - M9 Brake Booster Pump Motor
6 - B1 A/C Refrigerant Pressure Sensor
7 - G10R Cooling Fan Motor - Right
8 - G10L Cooling Fan Motor - Left
9 - B118 Windshield Washer Fluid Level Sensor
10 - G24 Windshield Washer Pump
