Headliner Components

Passenger Compartment/Roof Component Views

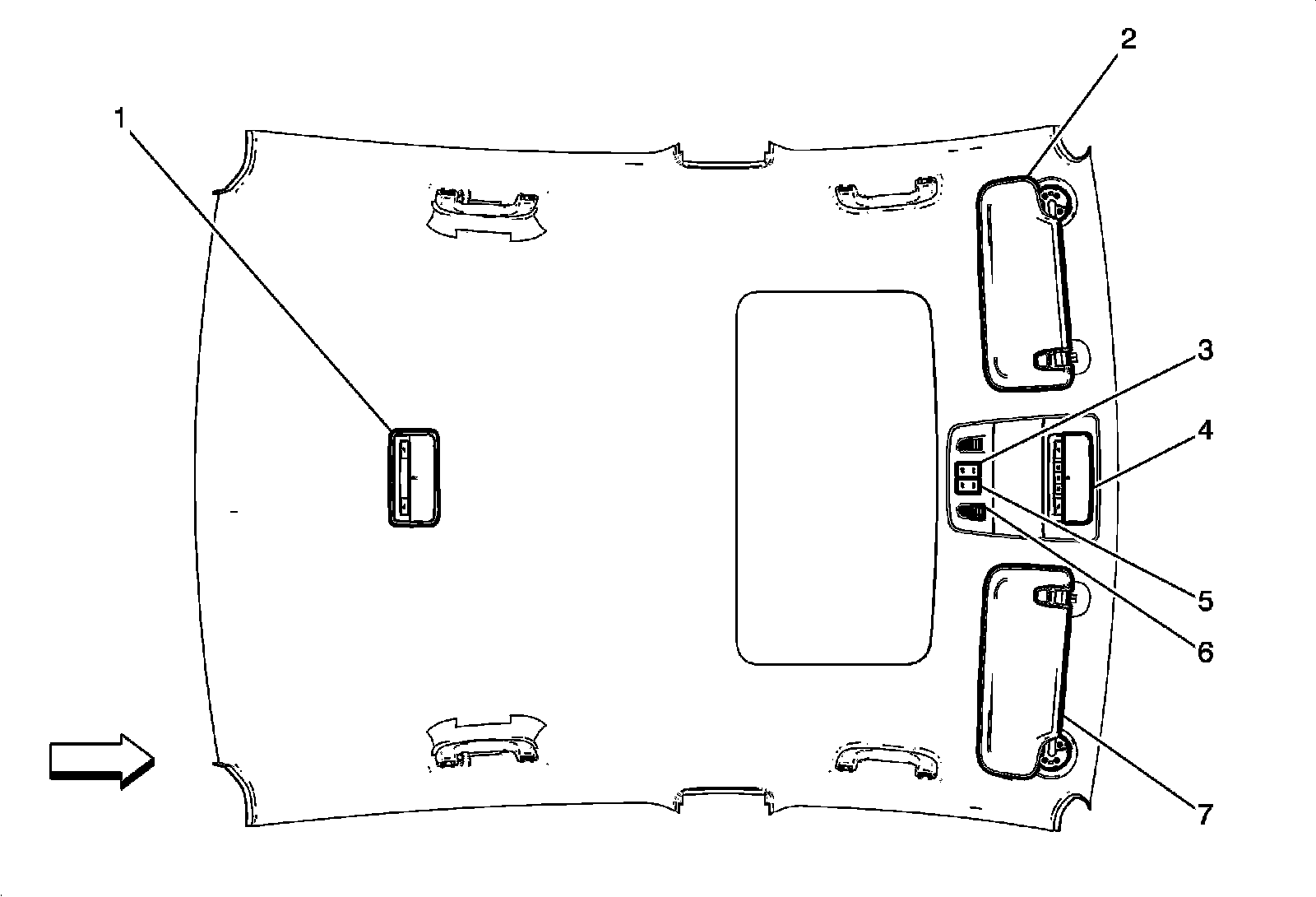

Headliner Components




1 - E37R Dome/Reding Lamps - Rear
2 - A3R Sunshade - Right
3 - S88 Sunroof Tilt Switch (CF5)
4 - E37E Dome/Reding Lamps - Front Overhead Console
5 - S72 Sunroof Switch (CF5)
6 - B24 Cellular Phone Microphone
7 - A3L Sunshade - Left
