Absolute Pressure Sensor: Locations
Front of Vehicle/Engine Compartment Component Views

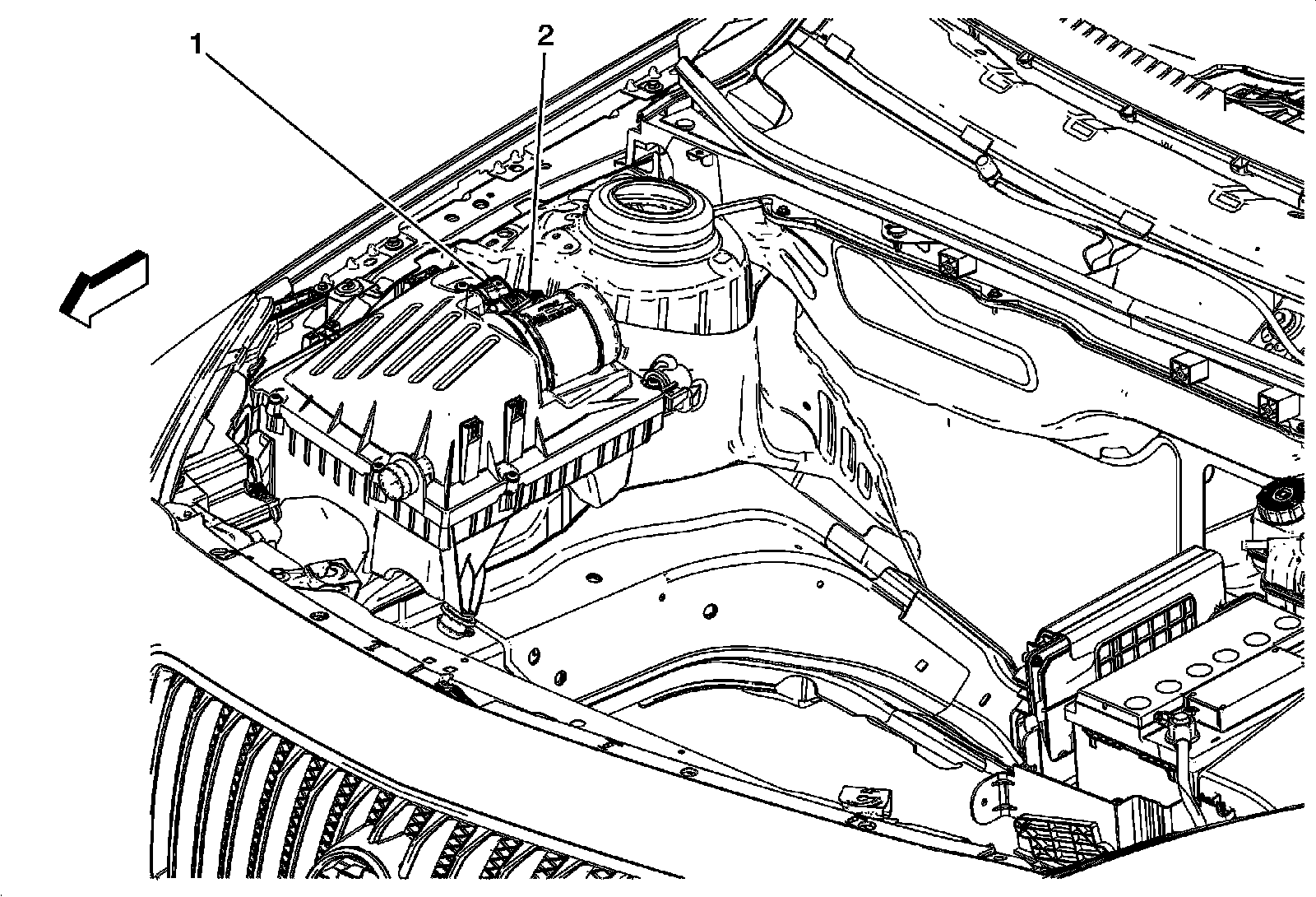

Right Side of Engine Compartment Components
1 - B192 Throttle Inlet Absolute Pressure Sensor
2 - B75B Mass Air Flow/Intake Air Temperature Sensor
Front of Vehicle/Engine Compartment Component Views
Right Side of Engine Compartment Components
1 - B192 Throttle Inlet Absolute Pressure Sensor
2 - B75B Mass Air Flow/Intake Air Temperature Sensor
