Front of Engine Components

Powertrain Component Views

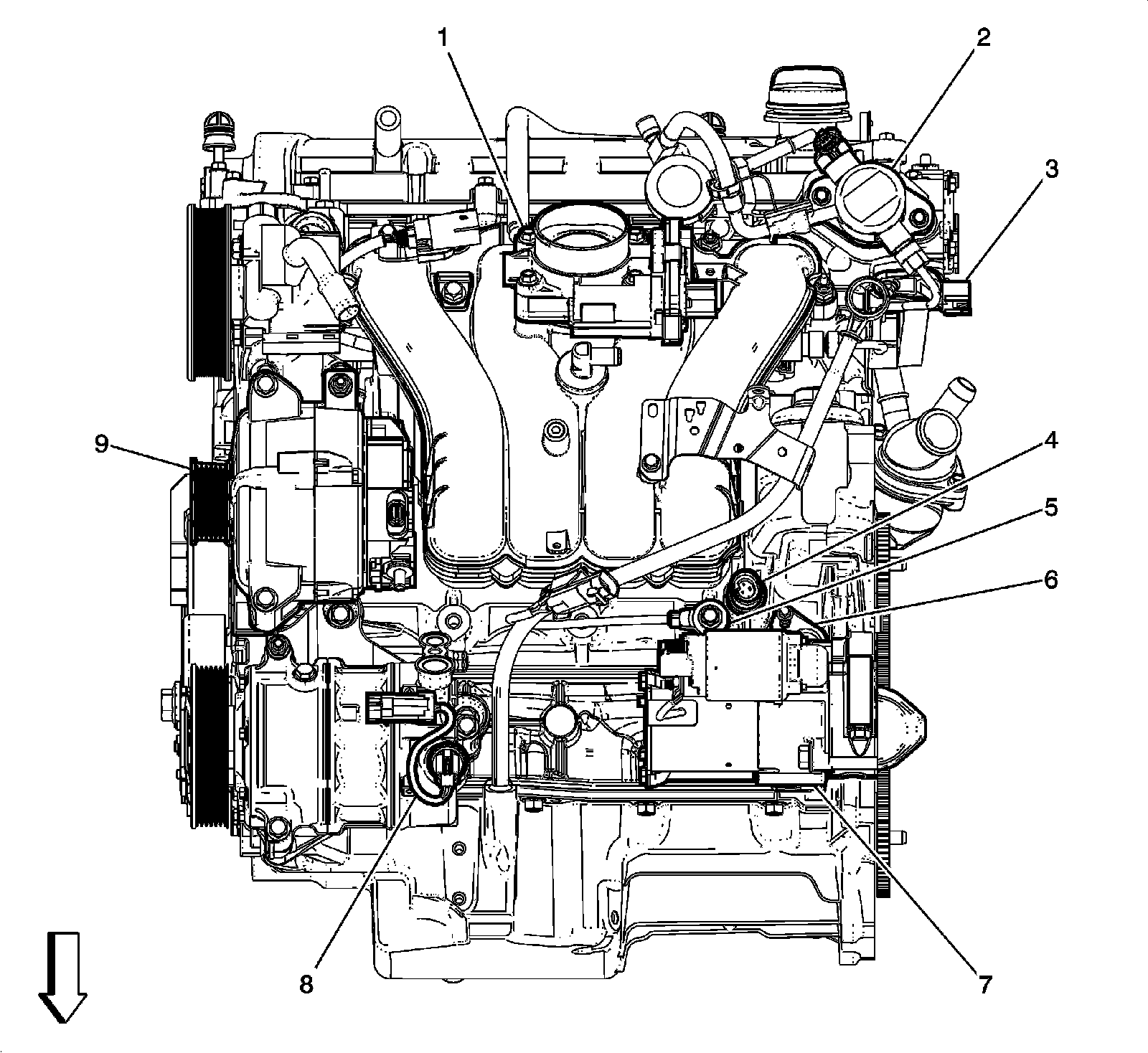

Front of Engine Components (LAF 1 of 2)




1 - Q38 Throttle Body
2 - G18 High Pressure Fuel Pump
3 - B23F Camshaft Position Sensor - Intake
4 - B37 Engine Oil Pressure Switch
5 - B68 Knock Sensor
6 - B26 Crankshaft Position Sensor
7 - M64 Starter Motor
8 - Q46 A/C Compressor Solenoid Valve
9 - G13 Generator
