Body Control Module: Locations

Instrument Panel/Center Console Component Views

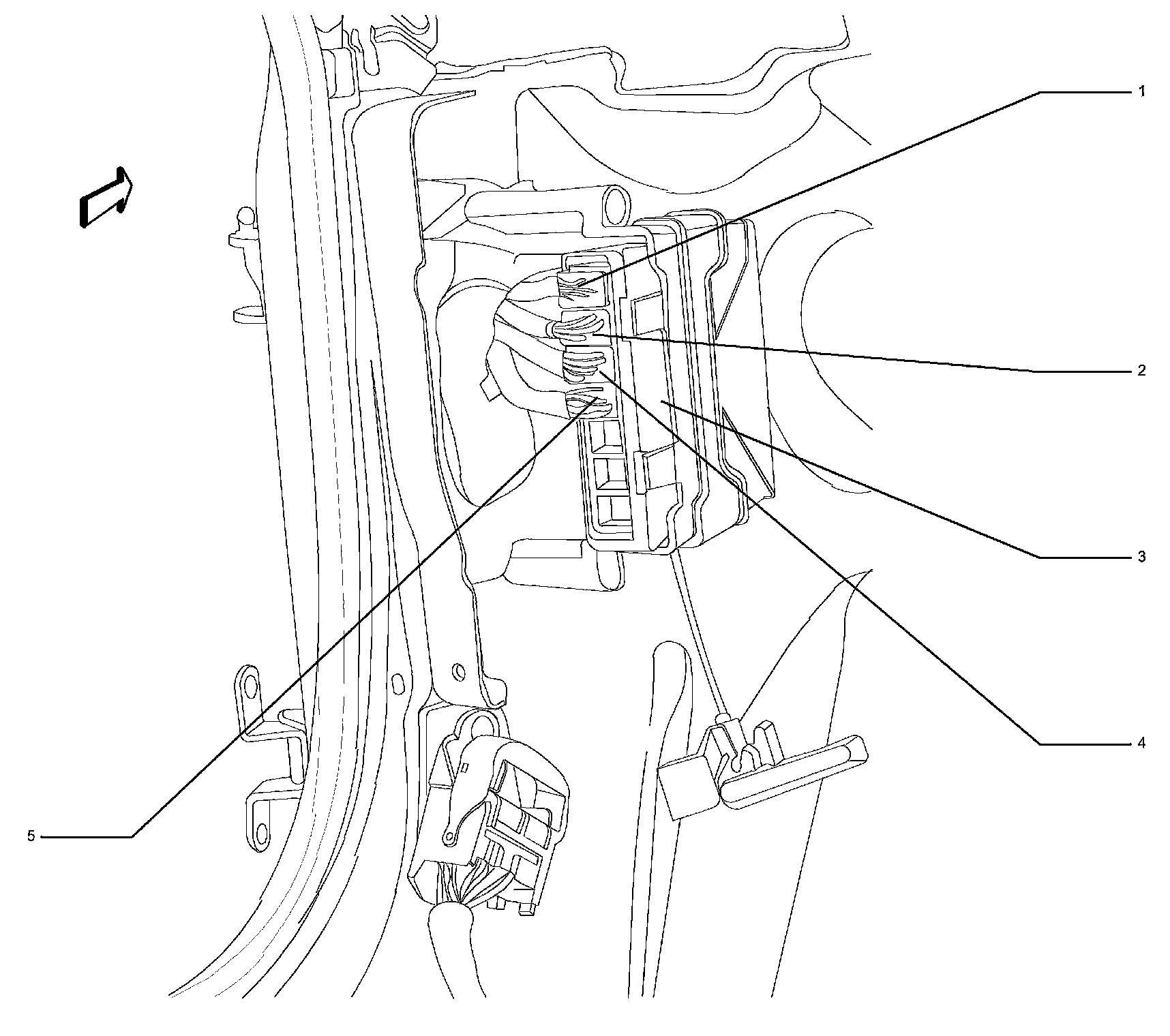

Left Side of the I/P Components (2 of 2)




1 - K9 Body Control Module X7
2 - K9 Body Control Module X6
3 - K9 Body Control Module X5
4 - K9 Body Control Module
5 - K9 Body Control Module X4
