Keyless Entry Module: Locations

Instrument Panel/Center Console Component Views

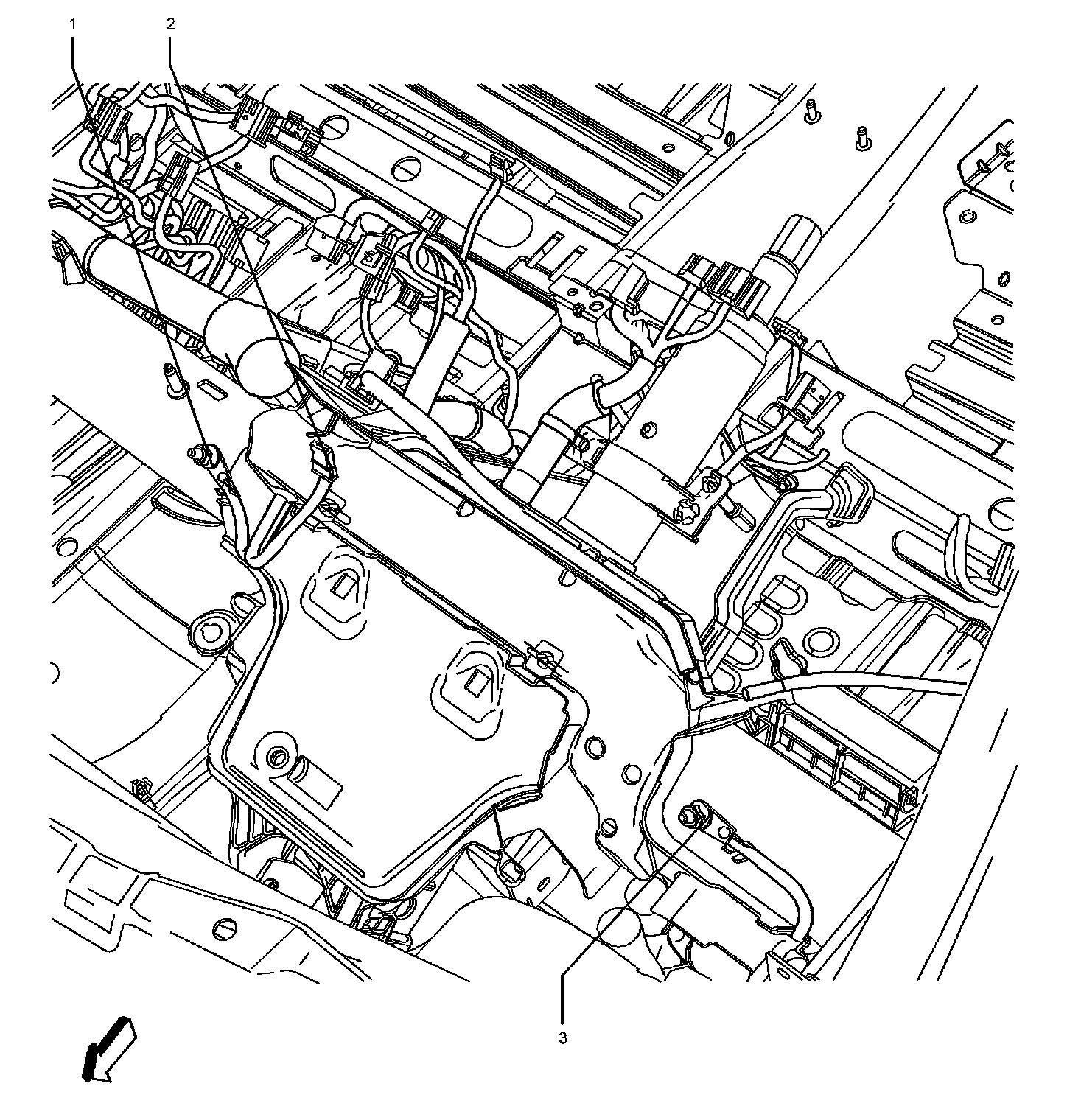

Left Side of the I/P Components (1 of 2)




1 - G206 Cross Member, Instrument Panel, Driver Side
2 - K84 Remote Function Receiver Module
3 - G203 Cross Member, Instrument Panel, Left
