Power, Ground, Data Communications And Subsystem References (1 Of 4)

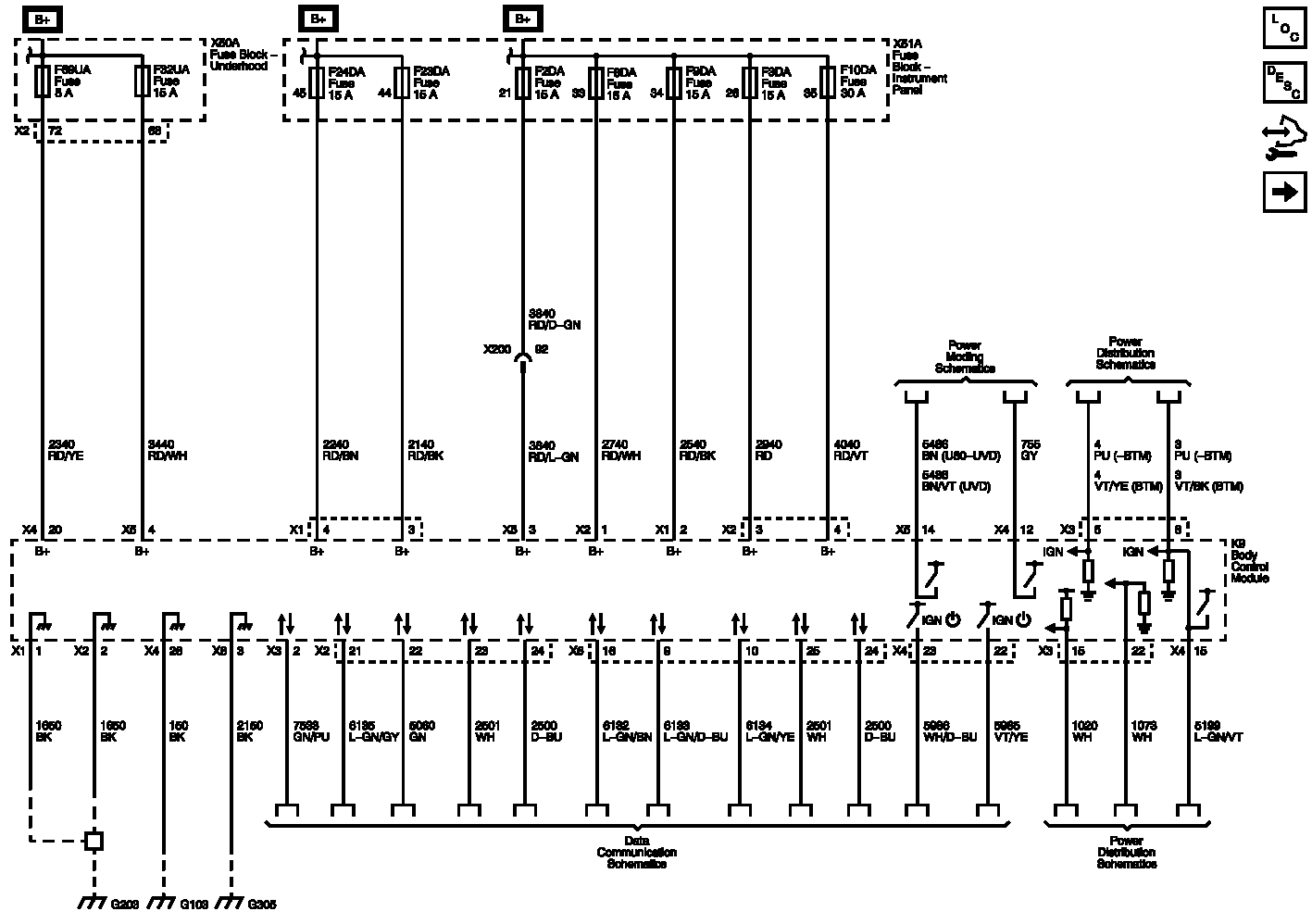

Fig 1: Power, Ground, Data Communications And Subsystem References (1 Of 4) Wiring Schematic
GM2577780Courtesy of GENERAL MOTORS COMPANY
