Ignition Lock Key Transmitter Antenna Replacement - Floor Console

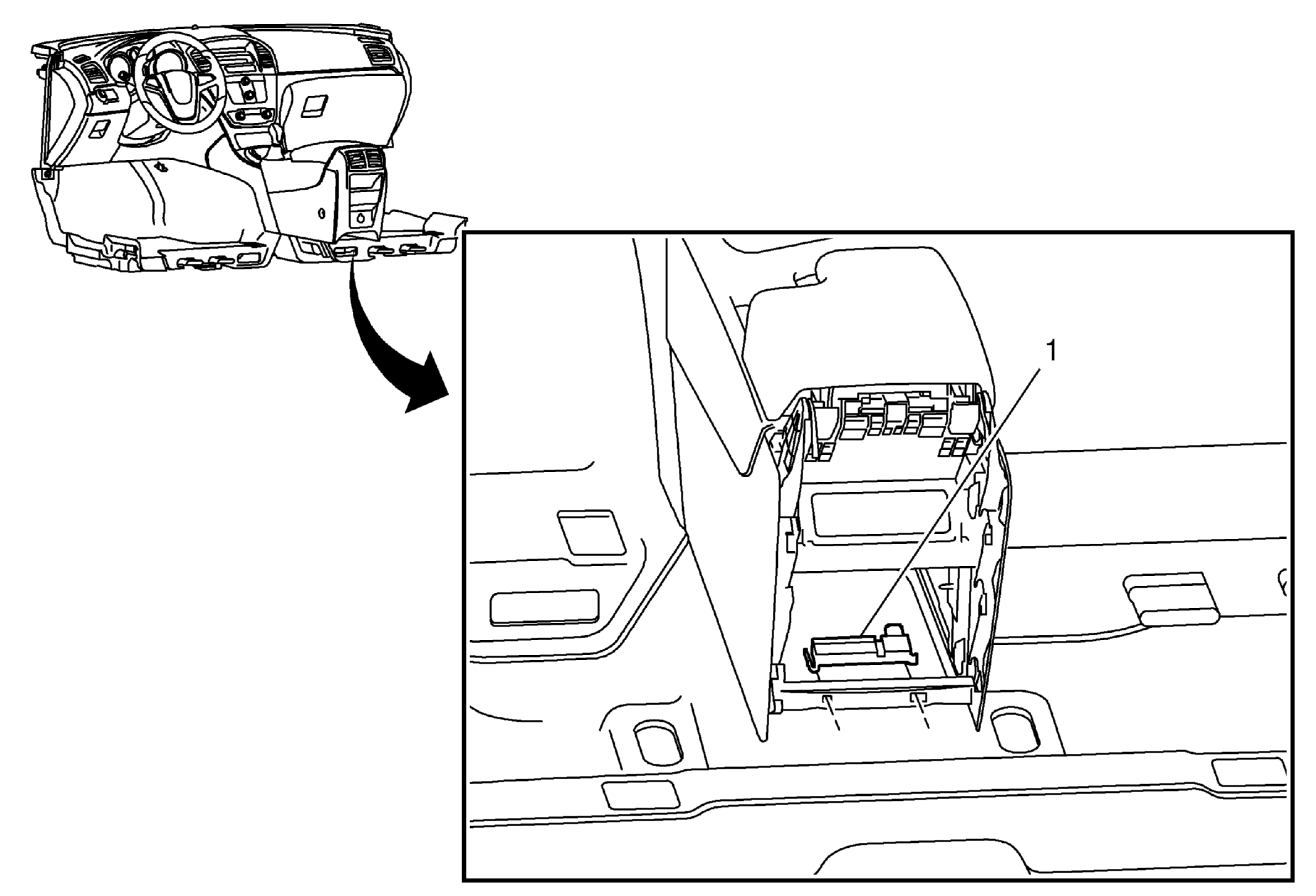

Fig 1: Ignition Lock Key Transmitter Antenna - Floor Console

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console rear cover. Refer to Front Floor Console Rear Cover Replacement .
1	Ignition Lock Key Transmitter Antenna- Floor Console Procedure Clip out the two fixing points. Disconnect the wiring harness connector of ignition lock key transmitter antenna. Remove the ignition lock key transmitter antenna.

Callout

Component Name

Preliminary Procedure
Remove the front floor console rear cover. Refer to Front Floor Console Rear Cover Replacement .

Ignition Lock Key Transmitter Antenna- Floor Console

Procedure

Clip out the two fixing points.
Disconnect the wiring harness connector of ignition lock key transmitter antenna.
Remove the ignition lock key transmitter antenna.
