Keyless Entry Control Module Replacement
Courtesy of GENERAL MOTORS COMPANY Keyless Entry Control Module Replacement

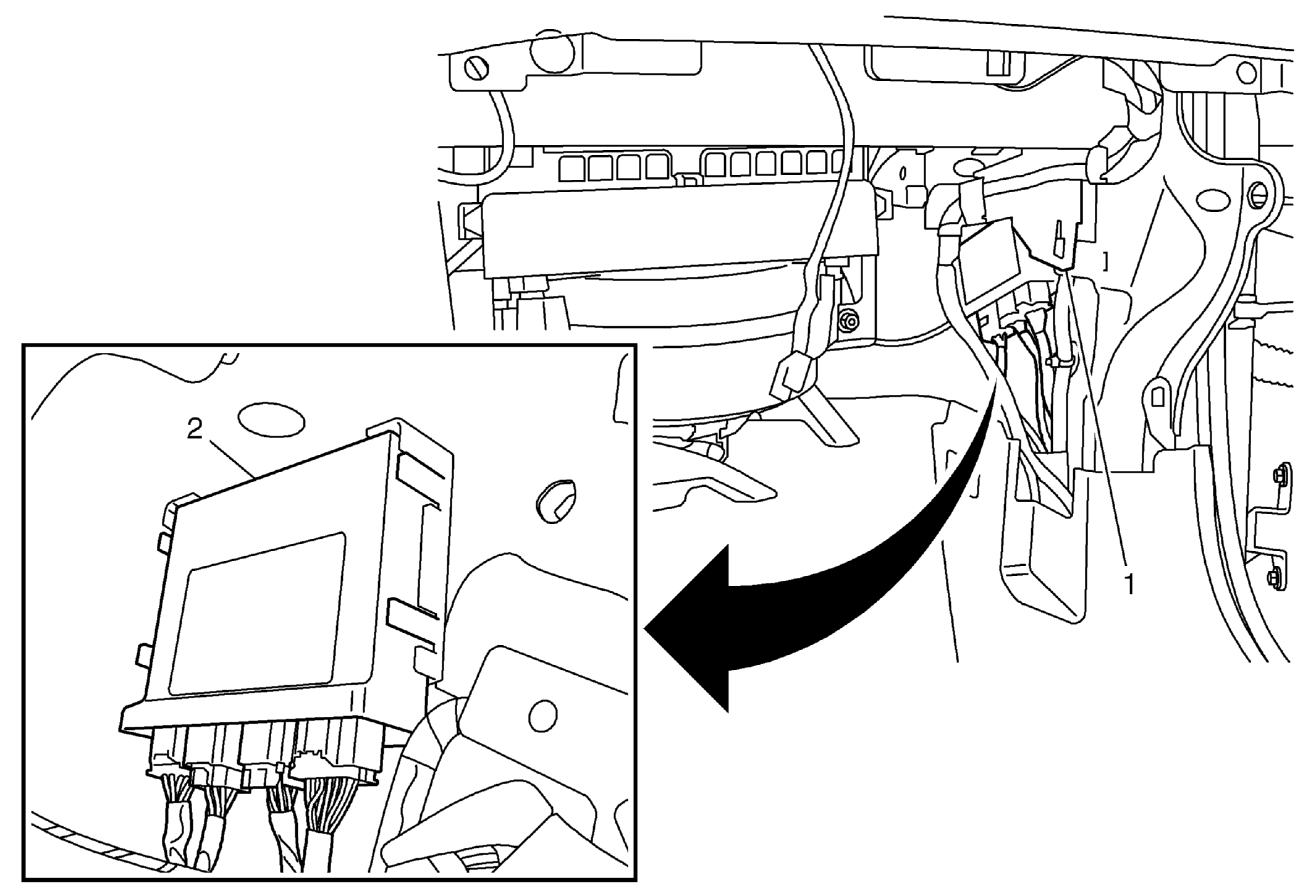

| Callout |
Component Name |
|
Preliminary Procedures
- Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection
.
- Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement
.
|
| 1 |
Wiring Harness Bracket
Procedure
Release the wiring harness bracket. |
| 2 |
Keyless Entry Control Module Procedure
- Disconnect the wiring harness connectors.
- Clip out the fixing points from the keyless entry control module.
- Remove the keyless entry control module.
- After repairs, for programming and set up information. Refer to Control Module References
.
|
