Remote Control Door Lock Receiver Replacement

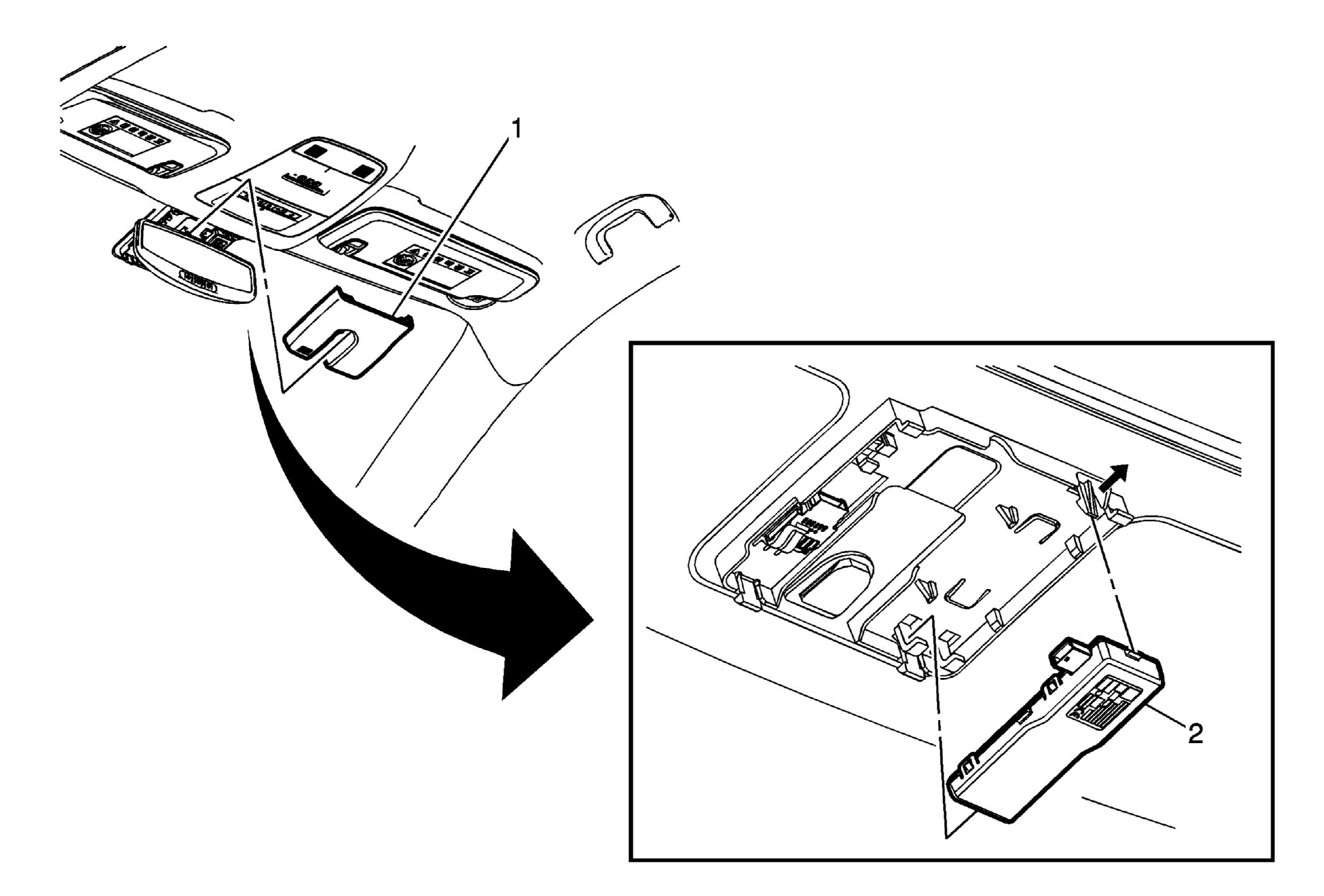

Fig 1: Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Windshield Outside Moisture Sensor Cover Procedure Unsnap the cover from the windshield.
2	Remote Control Door Lock Receiver Assembly Procedure Disconnect the electrical connector. Unsnap the receiver from the inside rear view mirror cover bracket.

Callout

Component Name

Windshield Outside Moisture Sensor Cover
Procedure
Unsnap the cover from the windshield.

Remote Control Door Lock Receiver Assembly

Procedure
