Outside Rearview Mirror Replacement

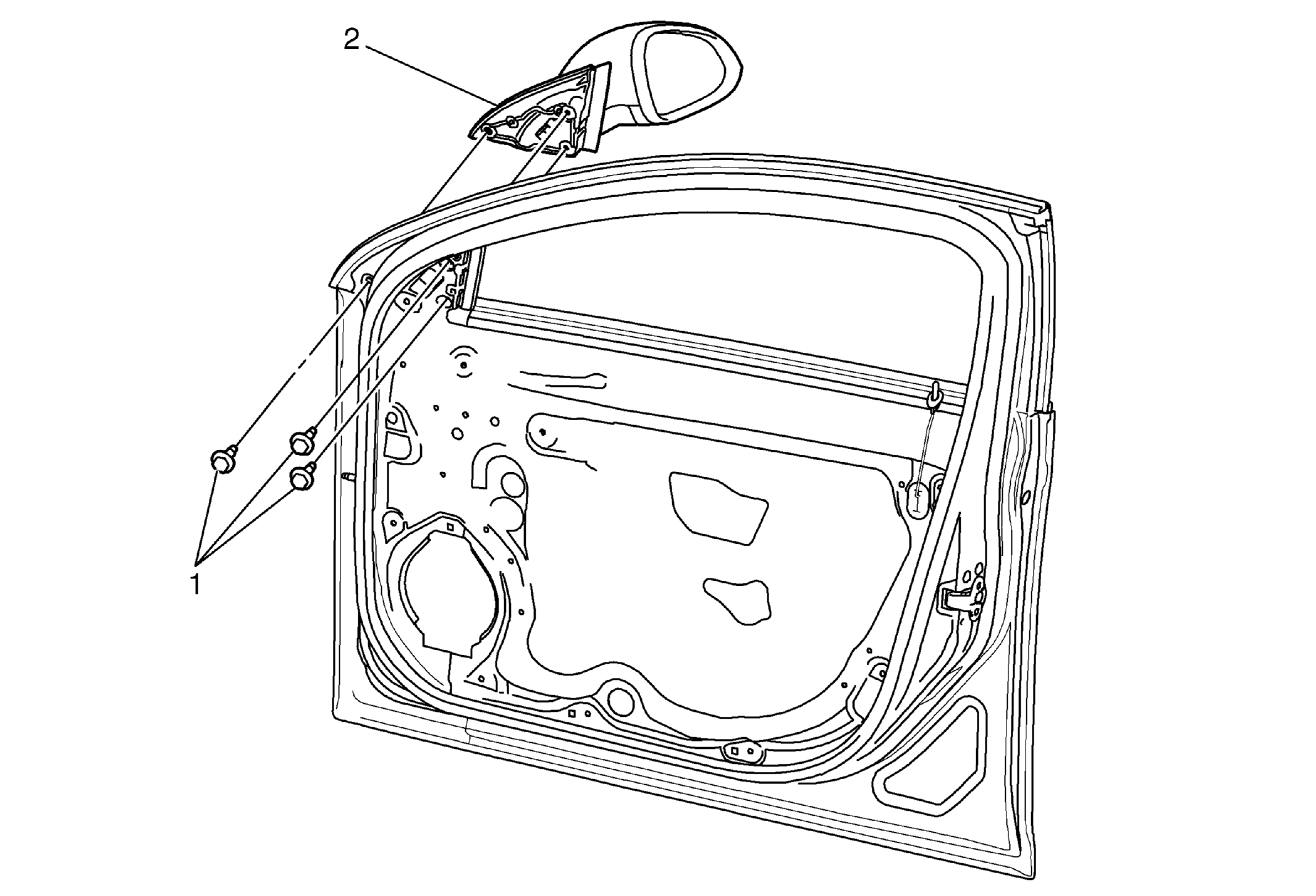

Fig 1: Outside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Outside Rearview Mirror Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Disconnect the mirror electrical connector. Tighten 9 N.m (80 lb in)
2	Outside Rearview Mirror Assembly TIP: The mirror assembly must be ordered and assembled prior to being installed to the vehicle.
