Installation Procedure

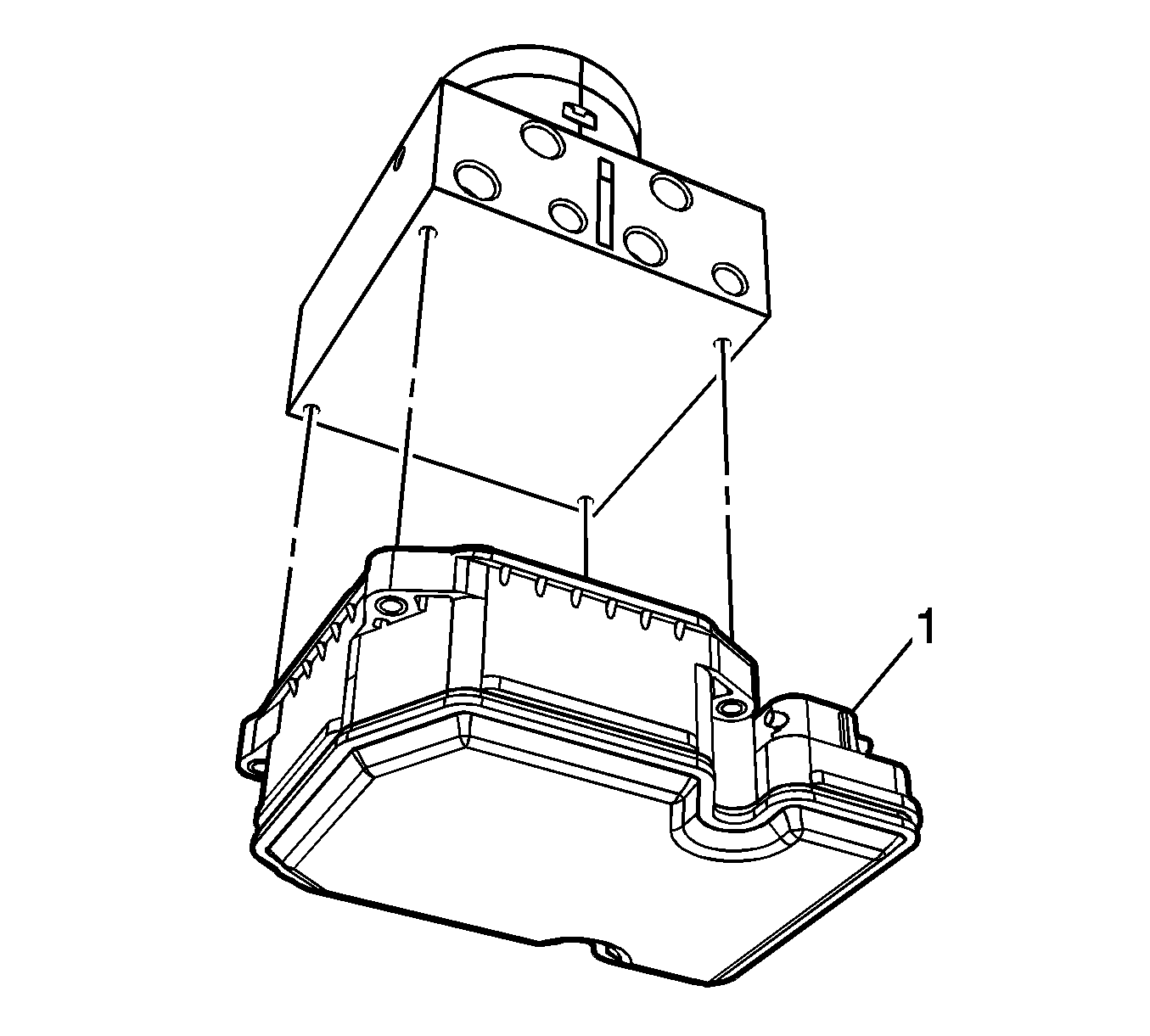

    Fig 1: EBCM And Brake Pressure Modulator Valve (BPMV)
    GM2330145Courtesy of GENERAL MOTORS COMPANY
  1. Install the EBCM (1) to the BPMV.

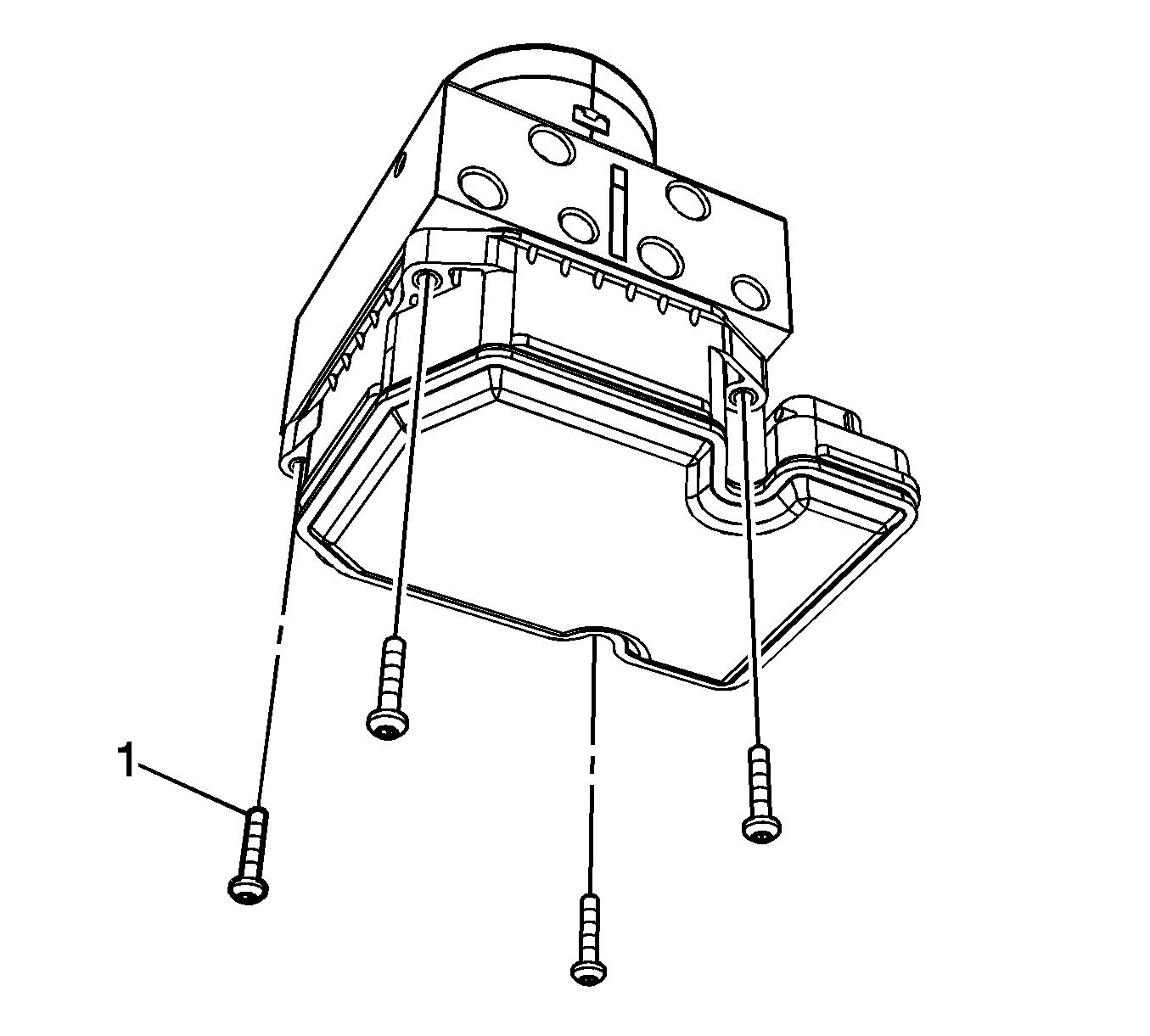

    2. Fig 2: Electronic Brake Control Module (EBCM) And Bolts
    GM2330143Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the EBCM bolts (1) and tighten to 3 N.m (26 lb in),
  3. Install the electronic brake and traction control module with brake pressure modulator valve assembly. Refer to Electronic Brake and Traction Control Module with Brake Pressure Modulator Valve Replacement .
  4. Program the EBCM. Refer to Control Module References .
