Installation Procedure

  1. Install the EBCM. Refer to Electronic Brake Control Module Replacement .

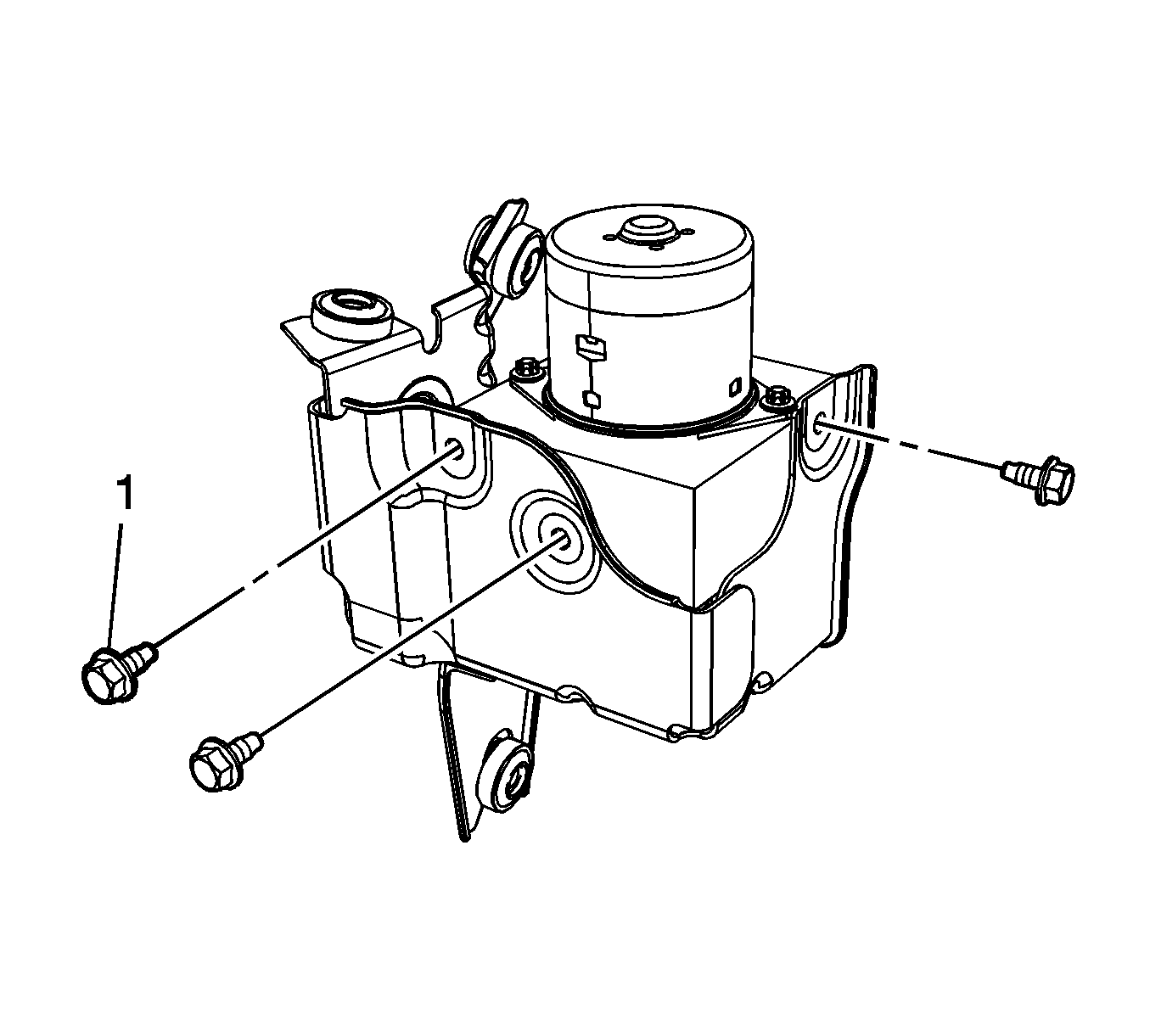

    2. Fig 1: Electronic Brake And Traction Control Module, Assembly Bracket And Bolts
    GM2330156Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the electronic brake and traction control module with brake pressure modulator valve assembly bracket bolts (1) and tighten to 10 N.m (89 lb in).

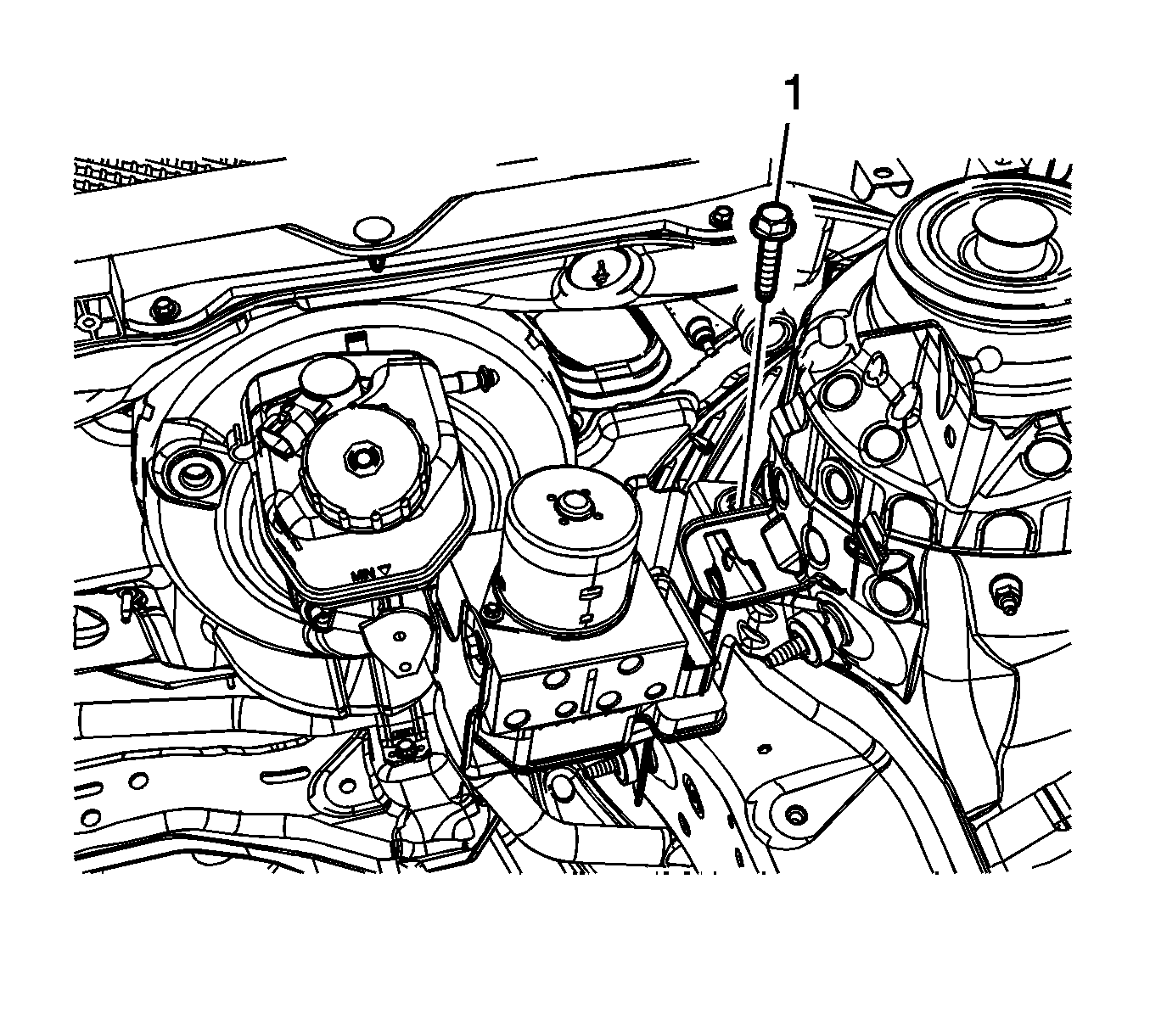

    3. Fig 2: Brake Pressure Modulator Valve Assembly Bolt
    GM2330154Courtesy of GENERAL MOTORS COMPANY
  3. Install the electronic brake and traction control module with brake pressure modulator valve assembly.
  4. Install the electronic brake and traction control module with brake pressure modulator valve assembly bolt (1) and tighten to 20 N.m (15 lb ft).

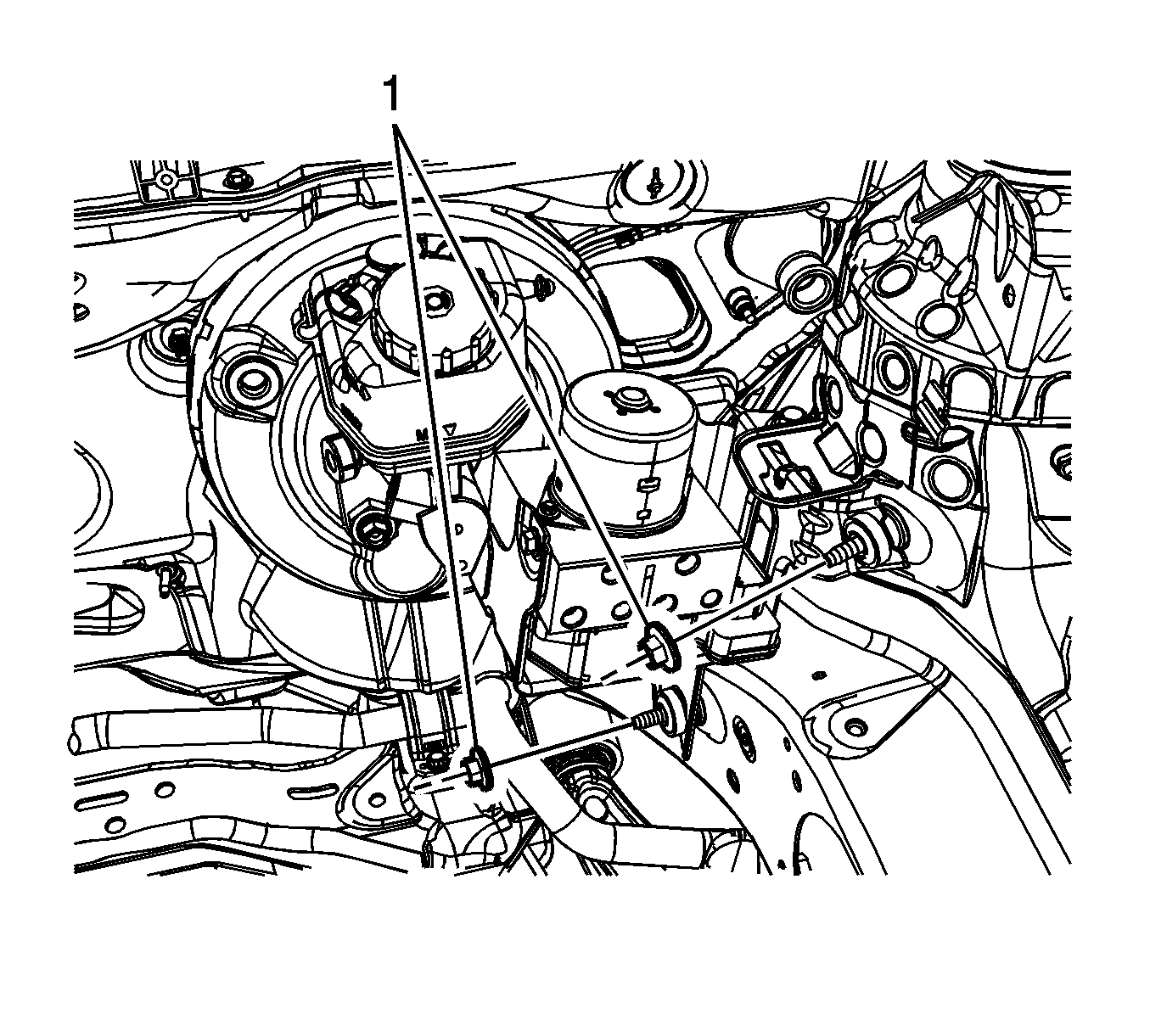

    5. Fig 3: Brake Pressure Modulator Valve Assembly Nuts
    GM2330152Courtesy of GENERAL MOTORS COMPANY
  5. Install the electronic brake and traction control module with brake pressure modulator valve assembly nuts (1) and tighten to 20 N.m (15 lb ft).

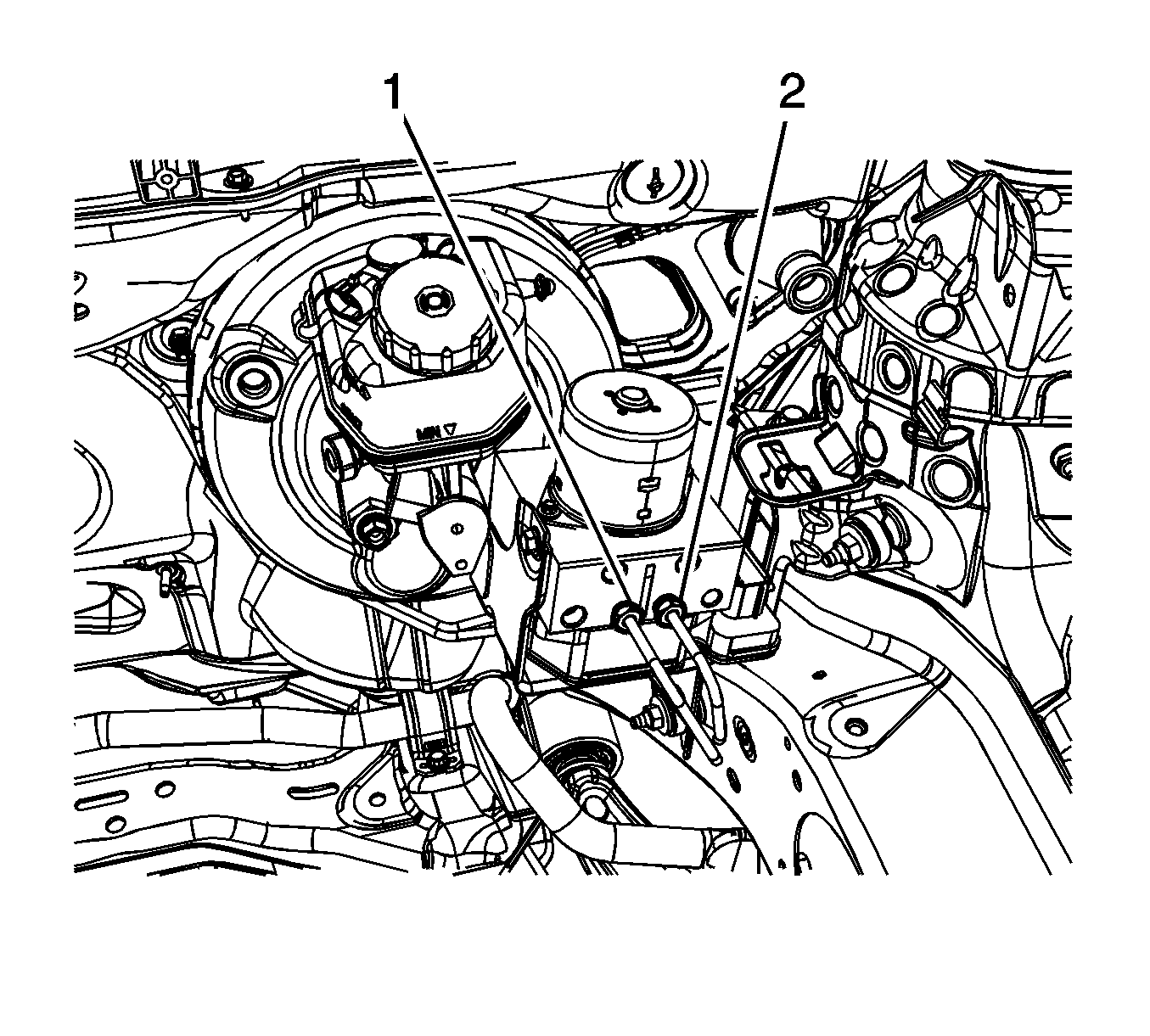

    6. Fig 4: Left Rear Brake Pipe Fitting
    GM2330151Courtesy of GENERAL MOTORS COMPANY
  6. Install the left rear brake pipe fitting (1) and tighten to 18 N.m (13 lb ft).
  7. Install the right rear brake pipe fitting (2) and tighten to 18 N.m (13 lb ft).

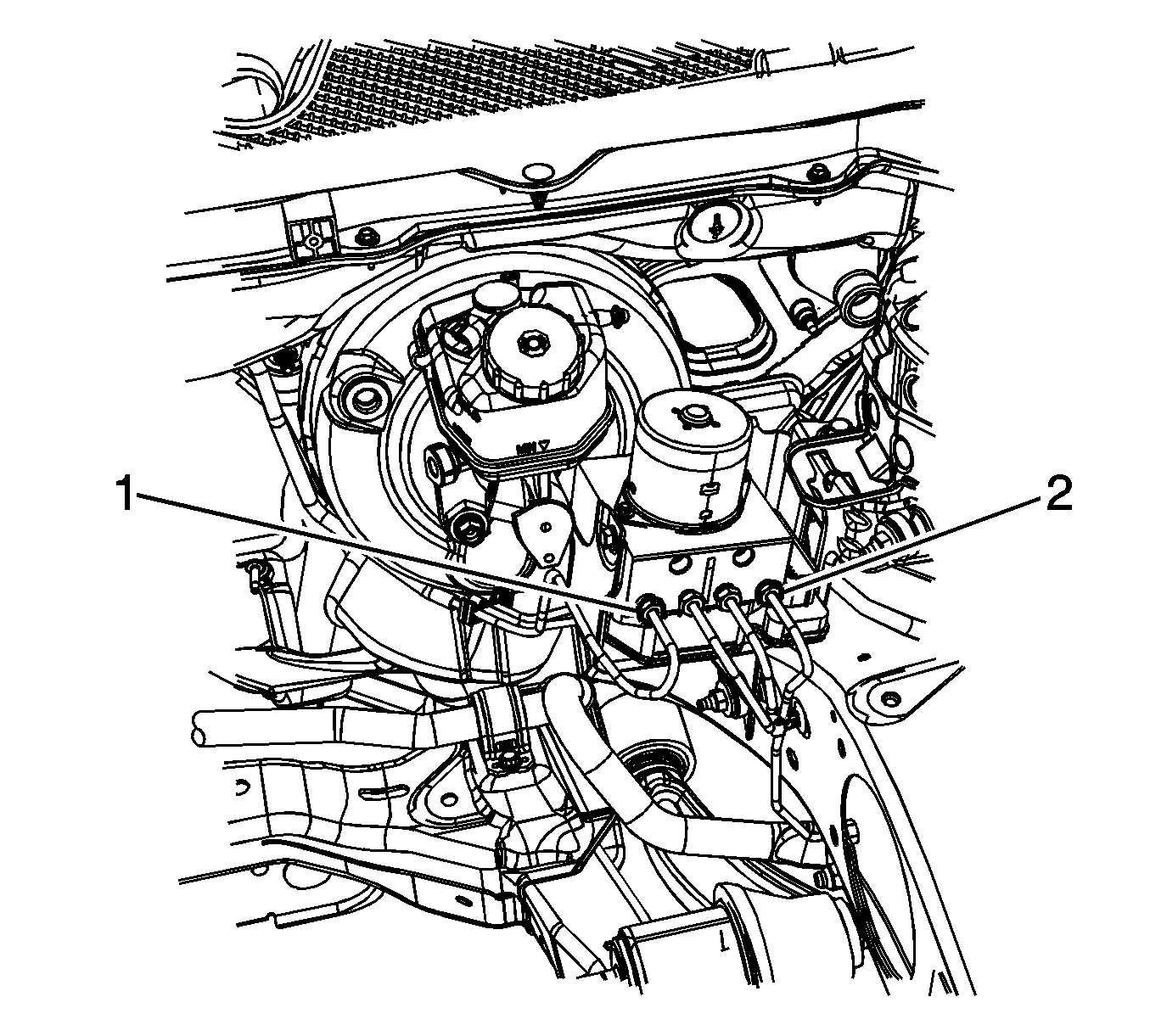

    8. Fig 5: Right Front Brake Pipe Fitting
    GM2330149Courtesy of GENERAL MOTORS COMPANY
  8. Install the right front brake pipe fitting (1) and tighten to 18 N.m (13 lb ft).
  9. Install the left front brake pipe fitting (2) and tighten to 18 N.m (13 lb ft).

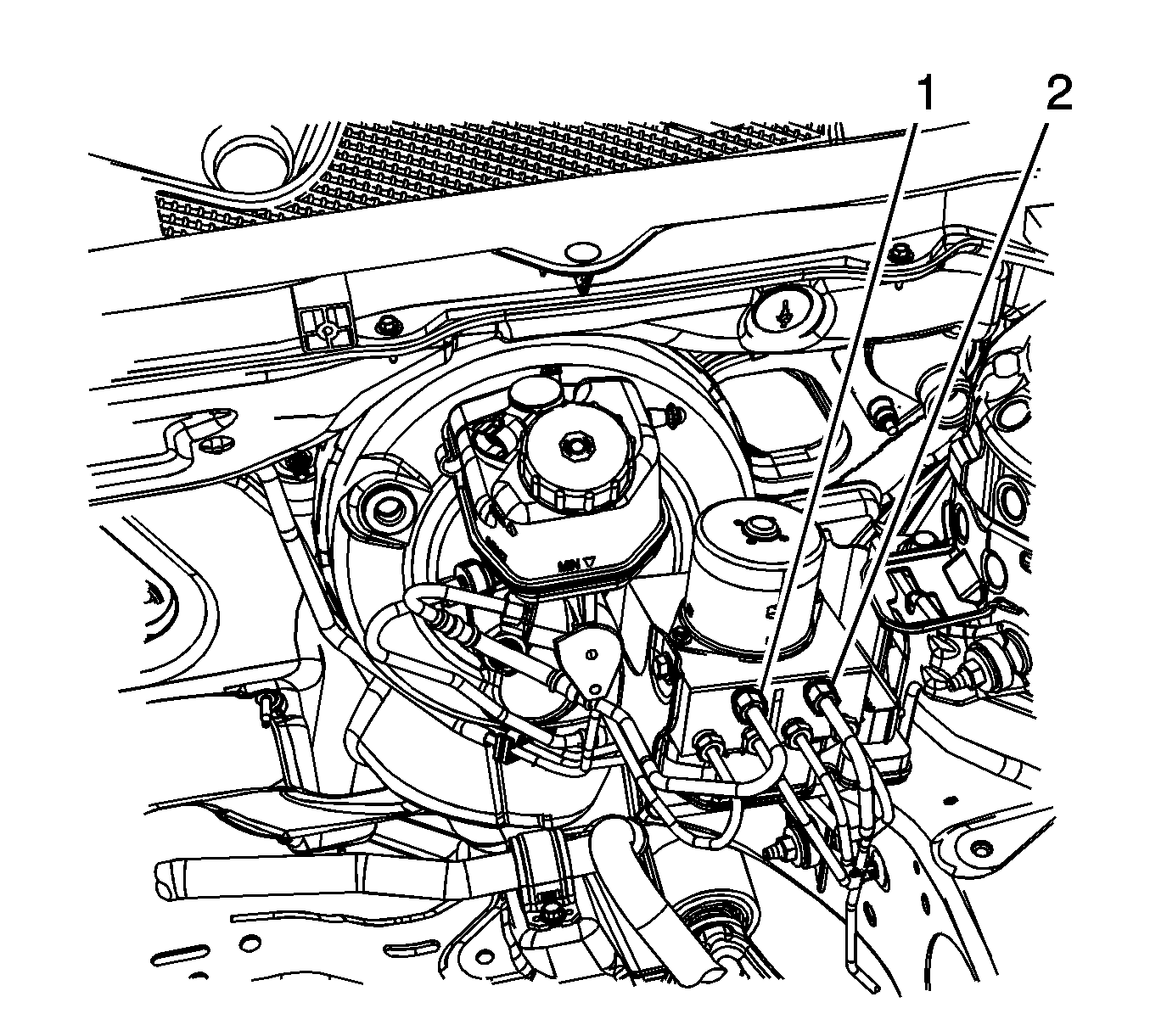

    10. Fig 6: Master Cylinder Primary Brake Pipe Fitting
    GM2330147Courtesy of GENERAL MOTORS COMPANY
  10. Install the master cylinder primary brake pipe fitting (1) and tighten to 18 N.m (13 lb ft).
  11. Install the master cylinder secondary brake pipe fitting (2) and tighten to 18 N.m (13 lb ft).
  12. Connect the EBCM electrical connector.
  13. Install the radiator surge tank. Refer to Radiator Surge Tank Replacement .
  14. Connect the brake fluid level sensor electrical connector.
  15. Install the battery tray. Refer to Battery Tray Replacement .
  16. Program the EBCM. Refer to Control Module References .
  17. Bleed the antilock brake system. Refer to Antilock Brake System Automated Bleed .
  18. Perform the Diagnostic System Check - Vehicle .
  19. Calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .
  20. Center the steering angle sensor. Refer to Steering Angle Sensor Centering .
