Module Power, Ground, Subsystem References and Brake Applied Signal

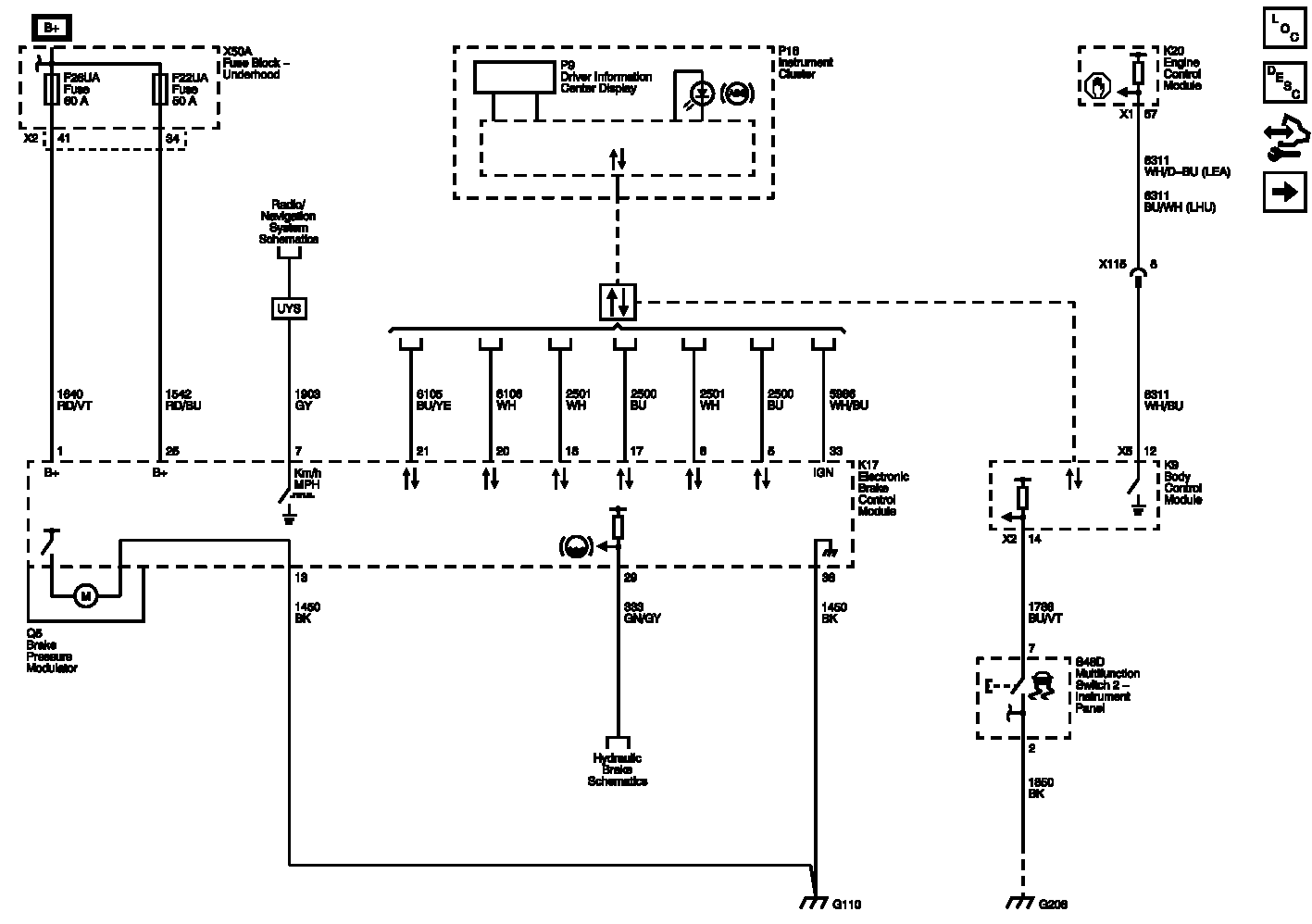

Fig 1: Module Power, Ground, Subsystem References and Brake Applied Signal Wiring Schematic
GM2611362Courtesy of GENERAL MOTORS COMPANY
