Cigarette Lighter Receptacle Replacement

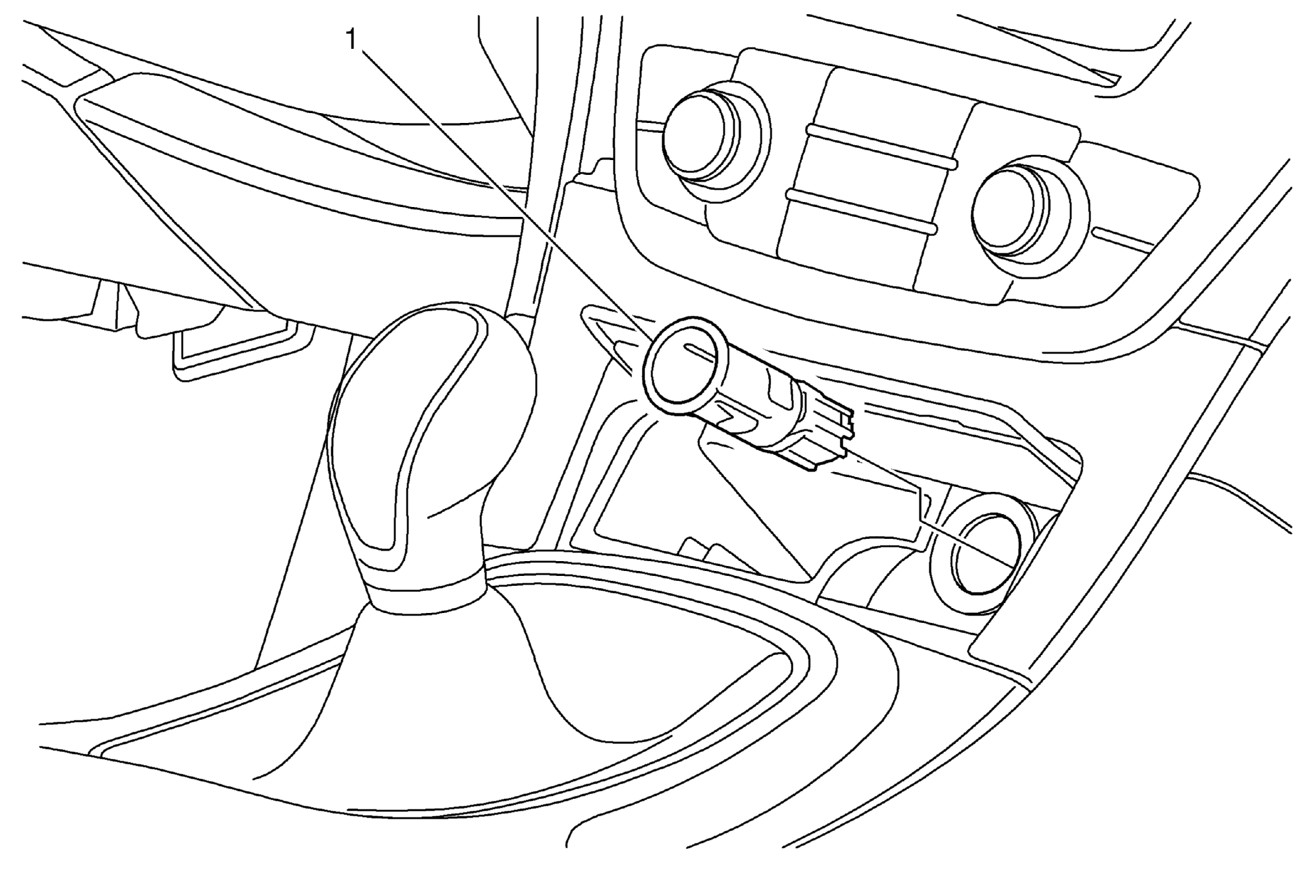

Fig 1: Cigarette Lighter Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Cigarette Lighter Receptacle Procedure Disconnect electrical connectors. Special Tools BO-48871 Cigar Lighter Socket Remover (Side B) For equivalent regional tools, refer to Special Tools .
