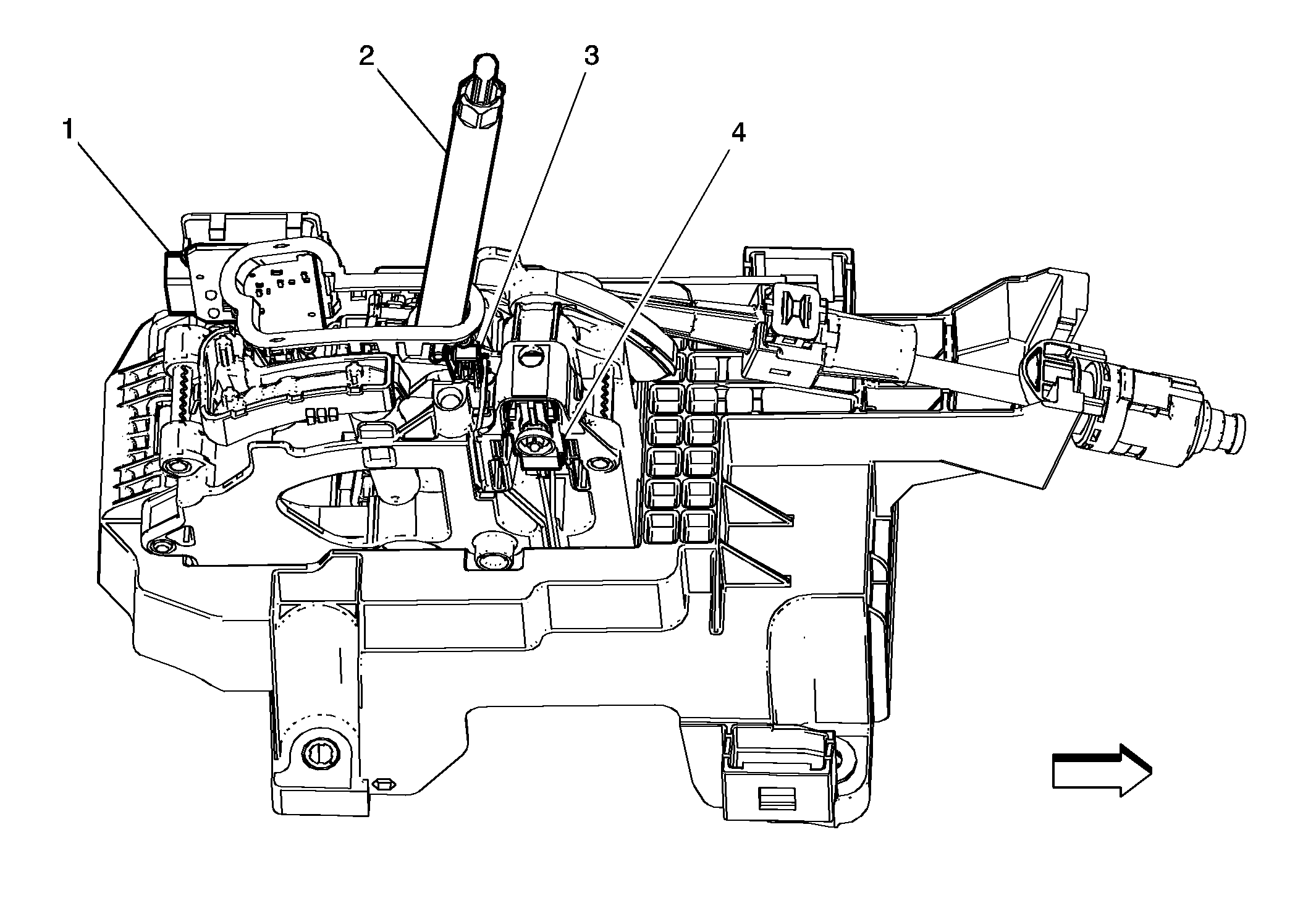

Automatic Transmission Shifter Components

GM2298925Courtesy of
Automatic Transmission Shifter Components

Component Name Callout
S2 Transmission Manual Shift Switch 1
S3 Transmission Shift Lever 2
B81B Park Position Switch 3
M7 Transmission Shift Lock Control Solenoid Actuator 4
