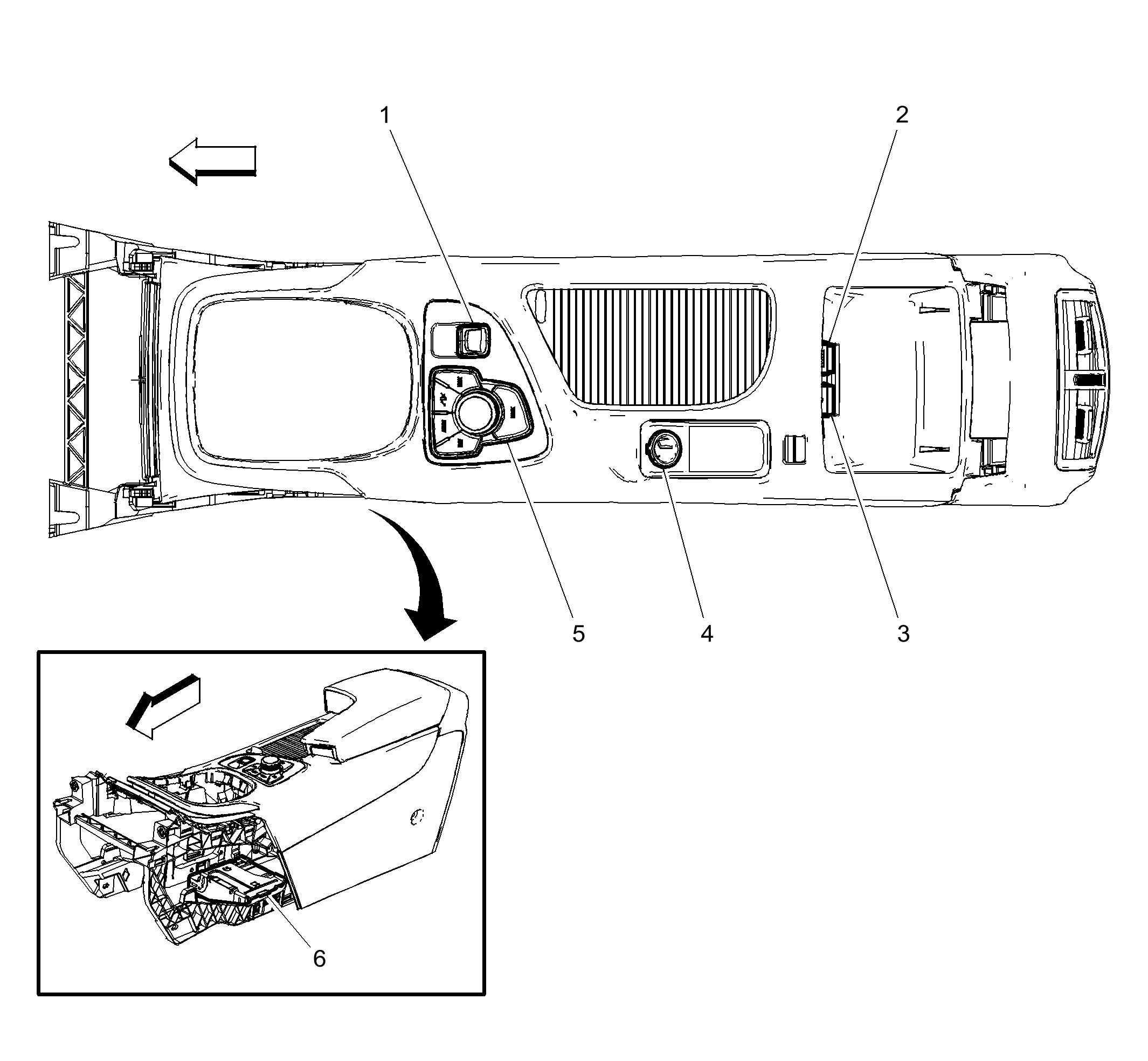

Floor Console Components

GM2530058Courtesy of
Floor Console Components

Component Name Callout
S91 Park Brake Control Switch 1
X92 USB Receptacle 2
X83 Auxiliary Audio Input 3
X80H Accessory Power Receptacle - Center Console 4
S56 Radio Control Multifunction Switch (KRJ) 5
T1 Accessory DC/AC Power Inverter Module (KI6) 6
