HVAC Module Components
HVAC Module Components

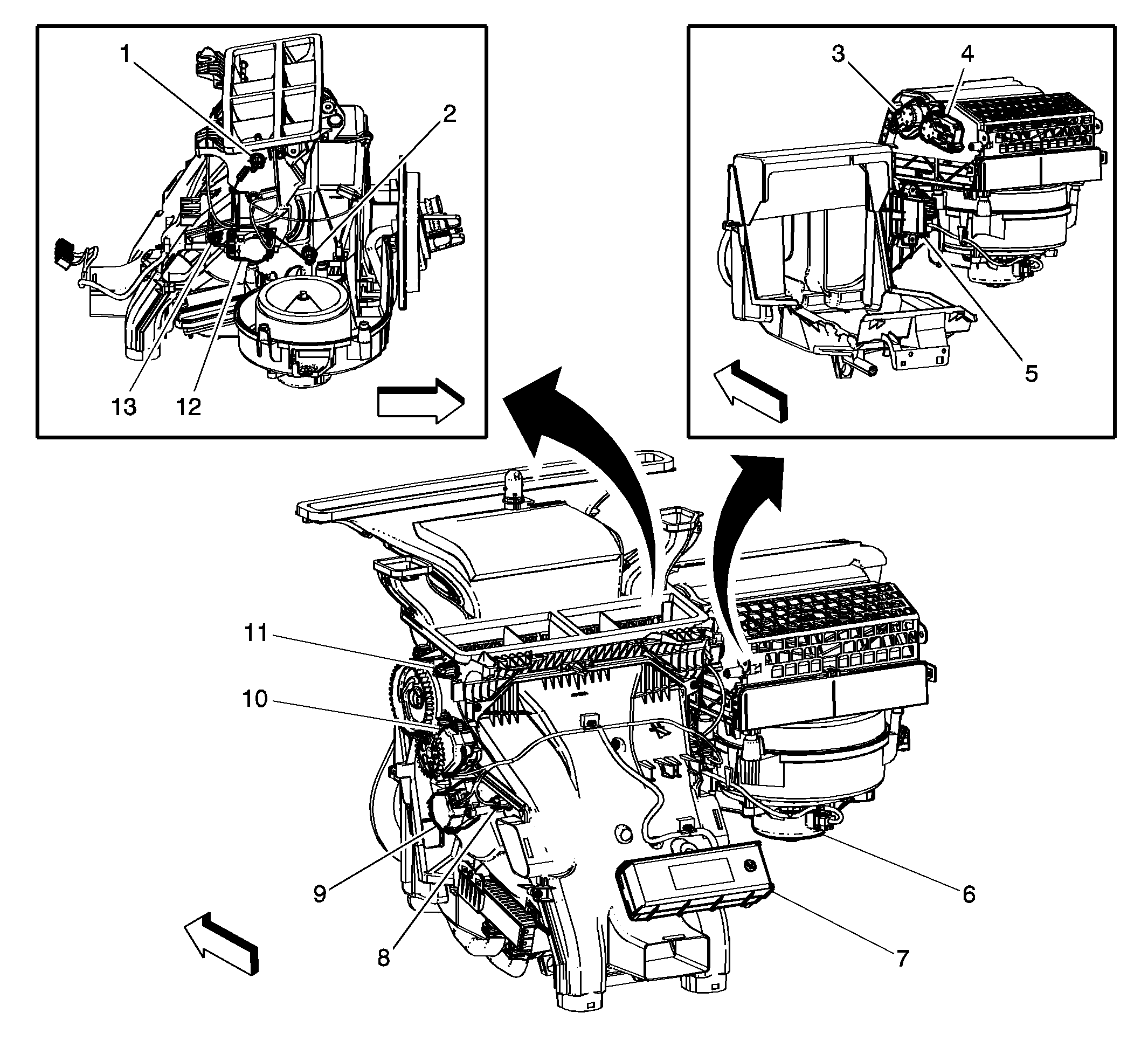

| Component Name | Callout |
|---|---|
| B7J Air Temperature Sensor - Duct Right Upper | 1 |
| B39 A/C Evaporator Temperature Sensor | 2 |
| M4 Air Inlet Door Actuator | 3 |
| M46 Air Recirculation Door Actuator | 4 |
| K8 Blower Motor Control Module | 5 |
| M8 Blower Motor | 6 |
| K33 HVAC Control Module | 7 |
| B7D Air Temperature Sensor - Duct Left Lower | 8 |
| M6L Air Temperature Door Actuator - Left | 9 |
| M37 Mode Door Actuator | 10 |
| B7H Air Temperature Sensor - Duct Left Upper | 11 |
| M6R Air Temperature Door Actuator - Right | 12 |
| B7E Air Temperature Sensor - Duct Right Lower | 13 |
