Steering Column and Wheel Components
 Courtesy of
|

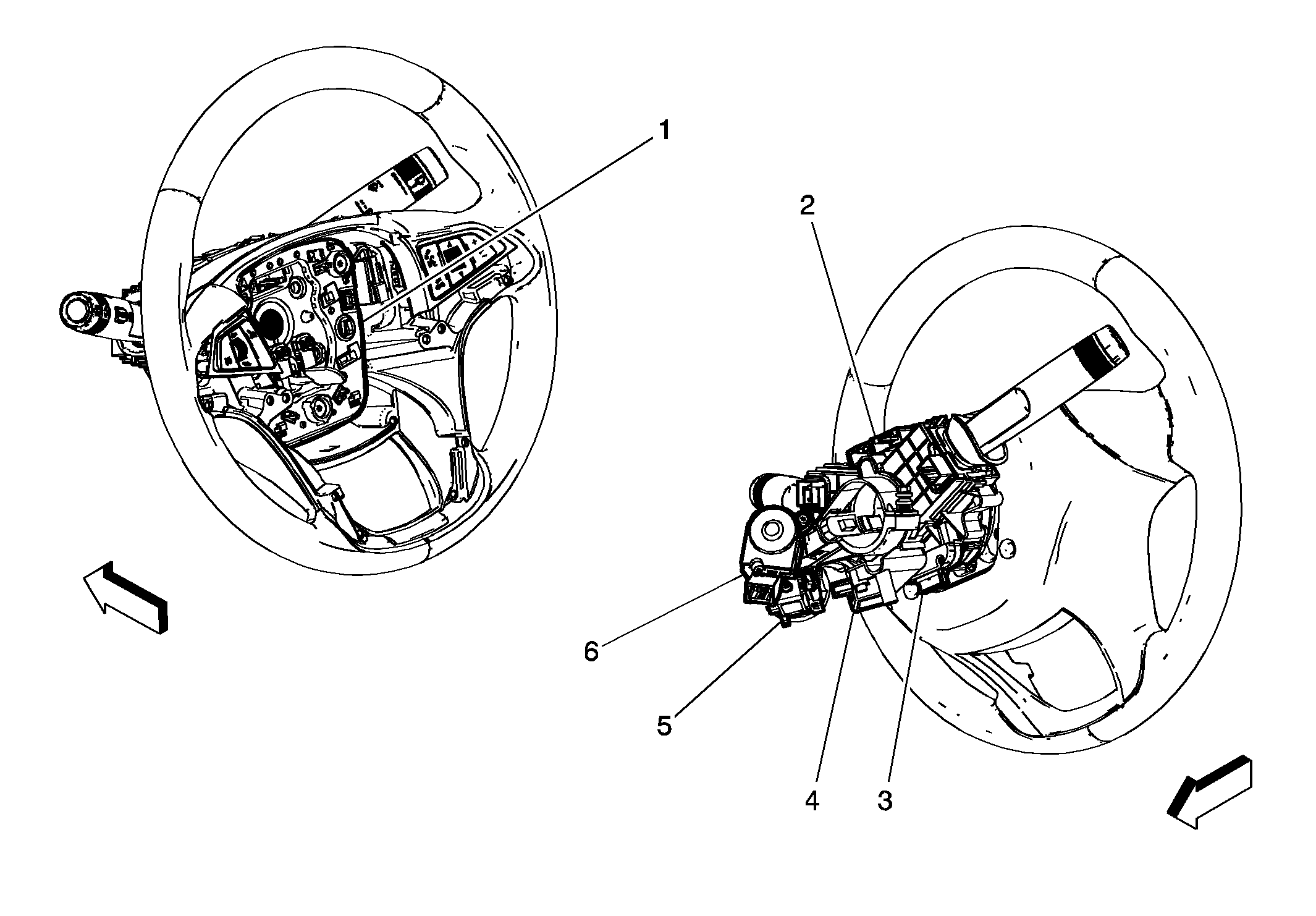

Steering Column and Wheel Components
| Component Name |
Callout |
| S33 Horn Switch |
1 |
| X85 Steering Wheel Air Bag Coil |
2 |
| B99 Steering Wheel Angle Sensor |
3 |
| K89 Immobilizer Control Module |
4 |
| M93 Key Capture Solenoid Actuator (MDK or MH7) |
5 |
| S39 Ignition Switch |
6 |
