Automatic Transmission Components (MH8)

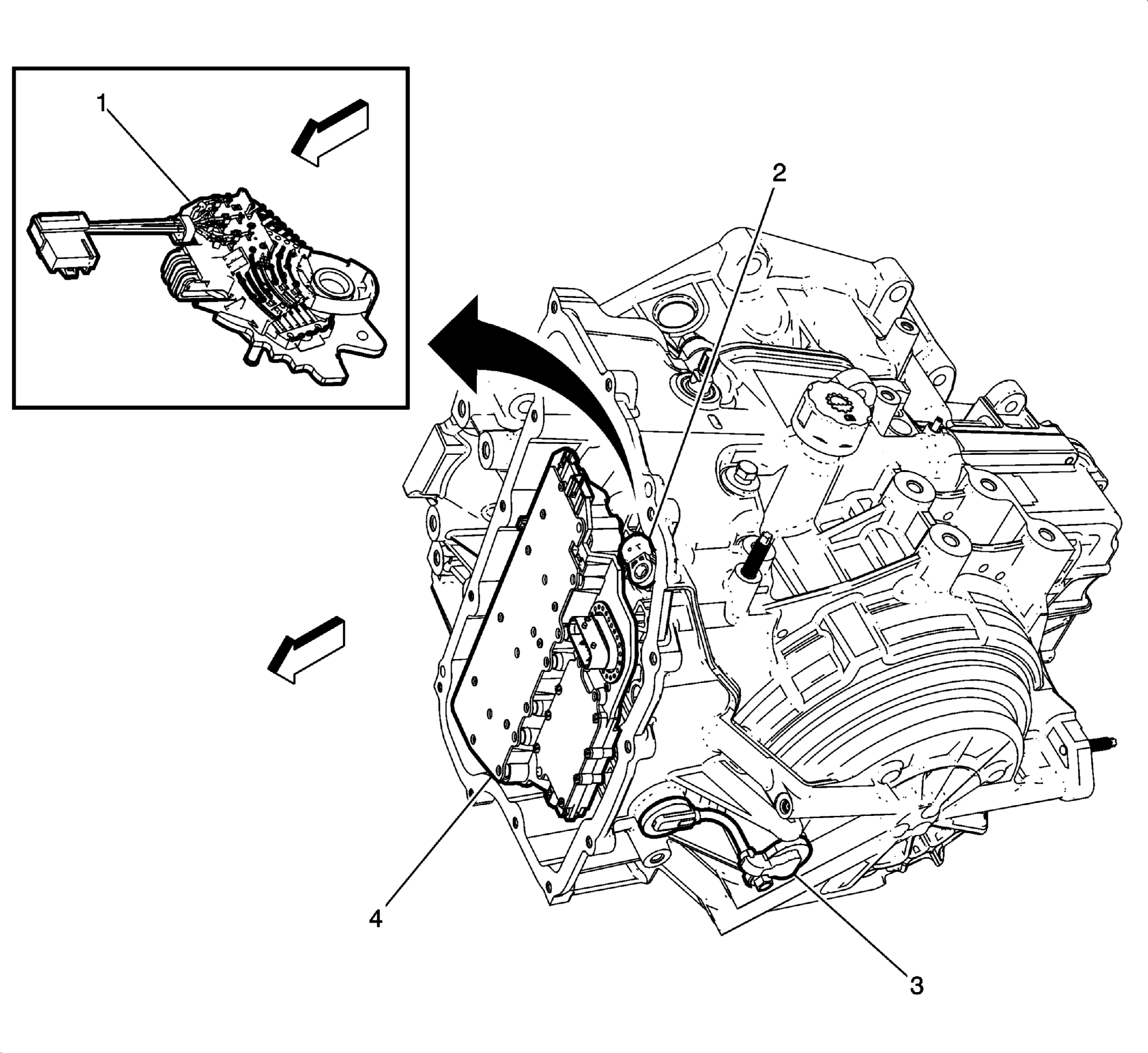

GM2526306Courtesy of
Automatic Transmission Components (MH8)

Component Name Callout
B15 Transmission Internal Mode Switch 1
B14A Transmission Output Shaft Speed Sensor 2
B14C Transmission Input Shaft Speed Sensor 3
Q8 Control Solenoid Valve Assembly 4
