Air Cleaner Assembly Replacement

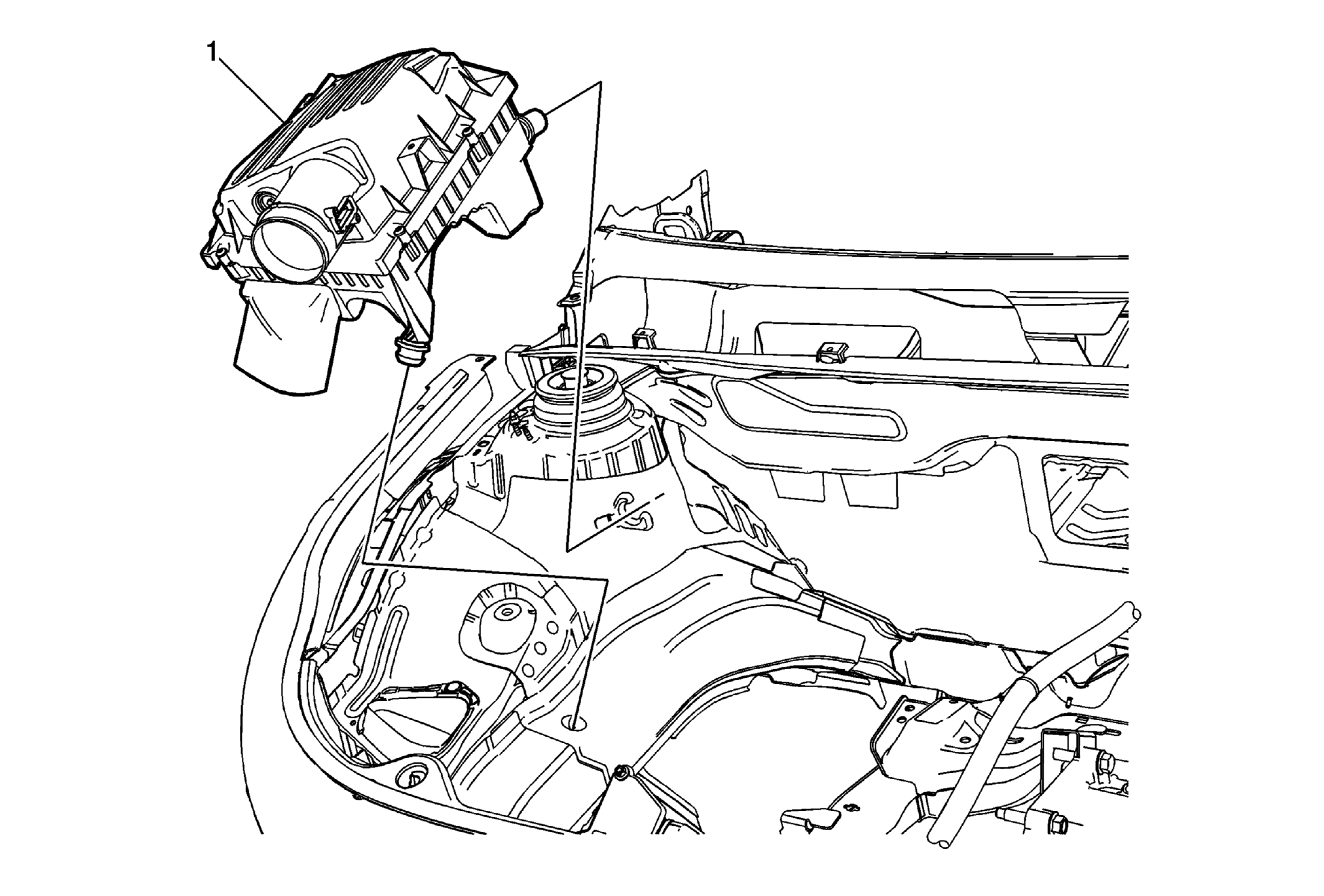

Fig 1: Air Cleaner Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the mass airflow sensor. Refer to Mass Airflow Sensor with Intake Air Temperature Sensor Replacement . Disconnect the outlet duct from the air cleaner assembly. Refer to Air Cleaner Outlet Duct Replacement .
1	Air Cleaner Assembly

Callout

Component Name

Preliminary Procedure

Remove the mass airflow sensor. Refer to Mass Airflow Sensor with Intake Air Temperature Sensor Replacement .
Disconnect the outlet duct from the air cleaner assembly. Refer to Air Cleaner Outlet Duct Replacement .

Air Cleaner Assembly
