Air Cleaner Element Replacement

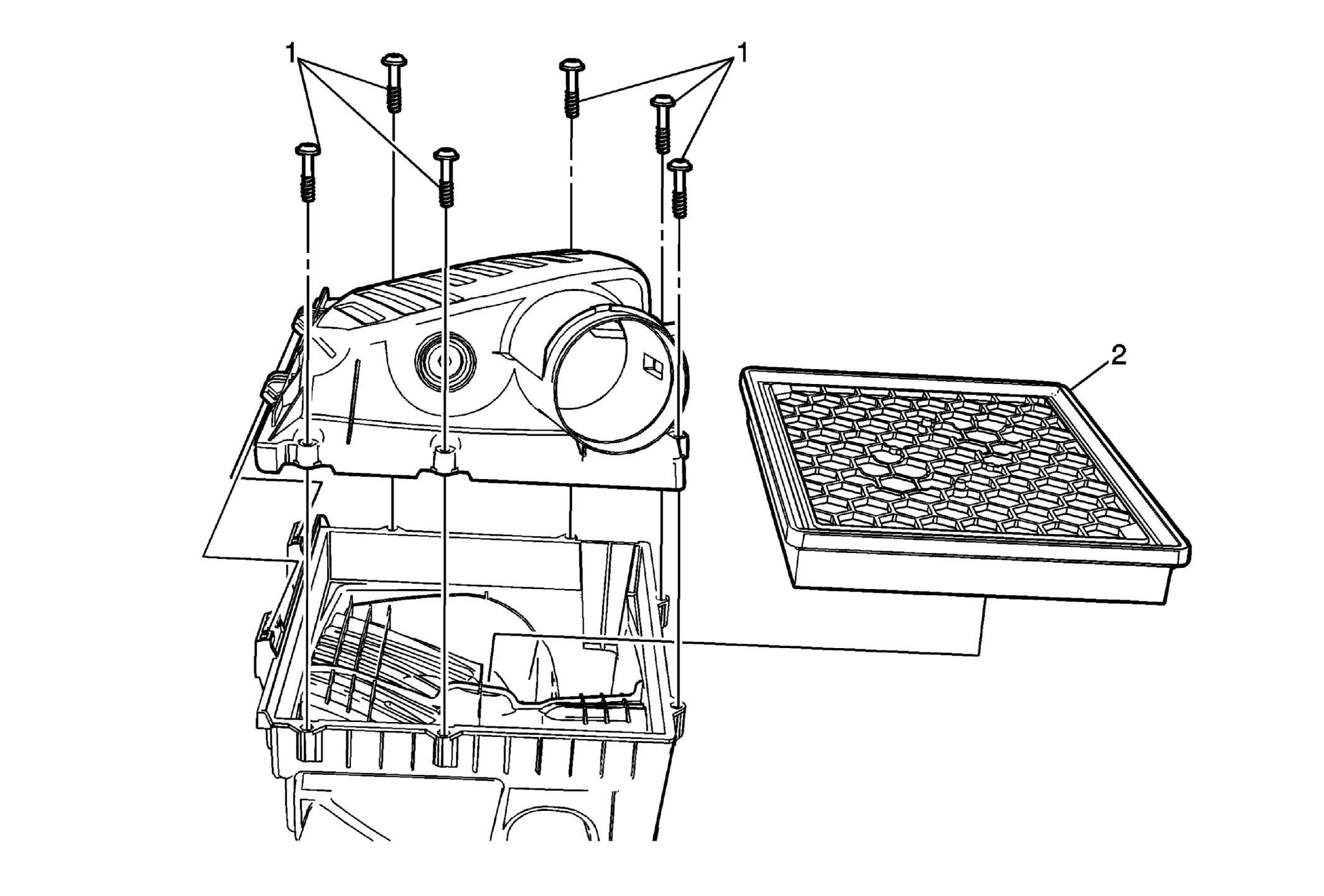

Fig 1: Air Cleaner Element
GM2223877Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Element Replacement

Callout Component Name
1 Air Cleaner Element Fasteners
CAUTION:

Refer to Fastener Caution .


Tighten
5 N.m(44 lb in)
2 Air Cleaner Element
Procedure
Disconnect the mass airflow electrical connector.
