Installation Procedure

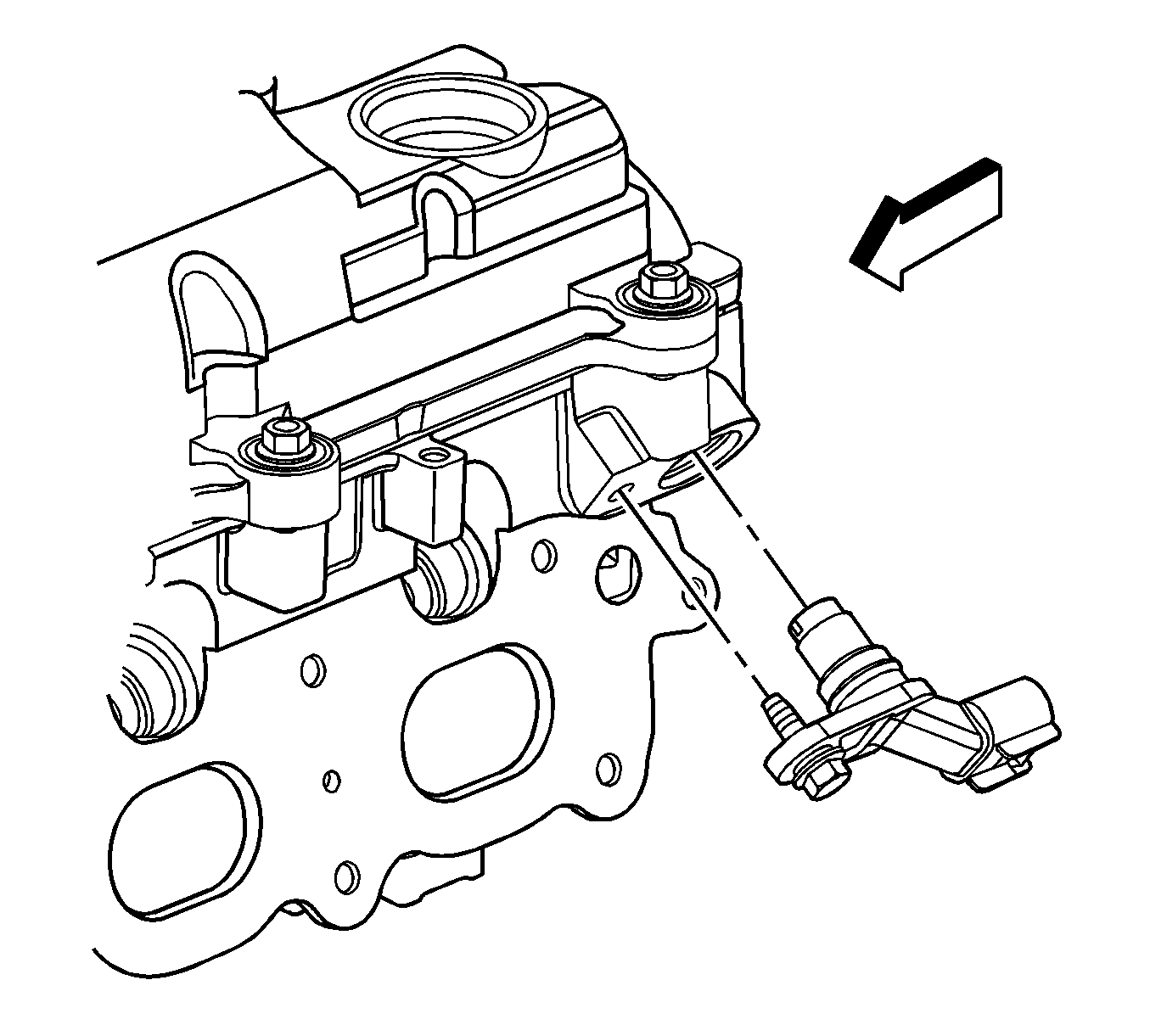

    Fig 1: Identifying CMP Sensor
    GM1578483Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Inspect the intake CMP sensor for damage, replace as necessary.

  1. Lubricate the intake CMP sensor O-ring seal with clean engine oil.
  2. Install the intake CMP sensor.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the intake CMP sensor bolt.

    Tighten

    Tighten the bolt to 10 N.m (89 lb in).

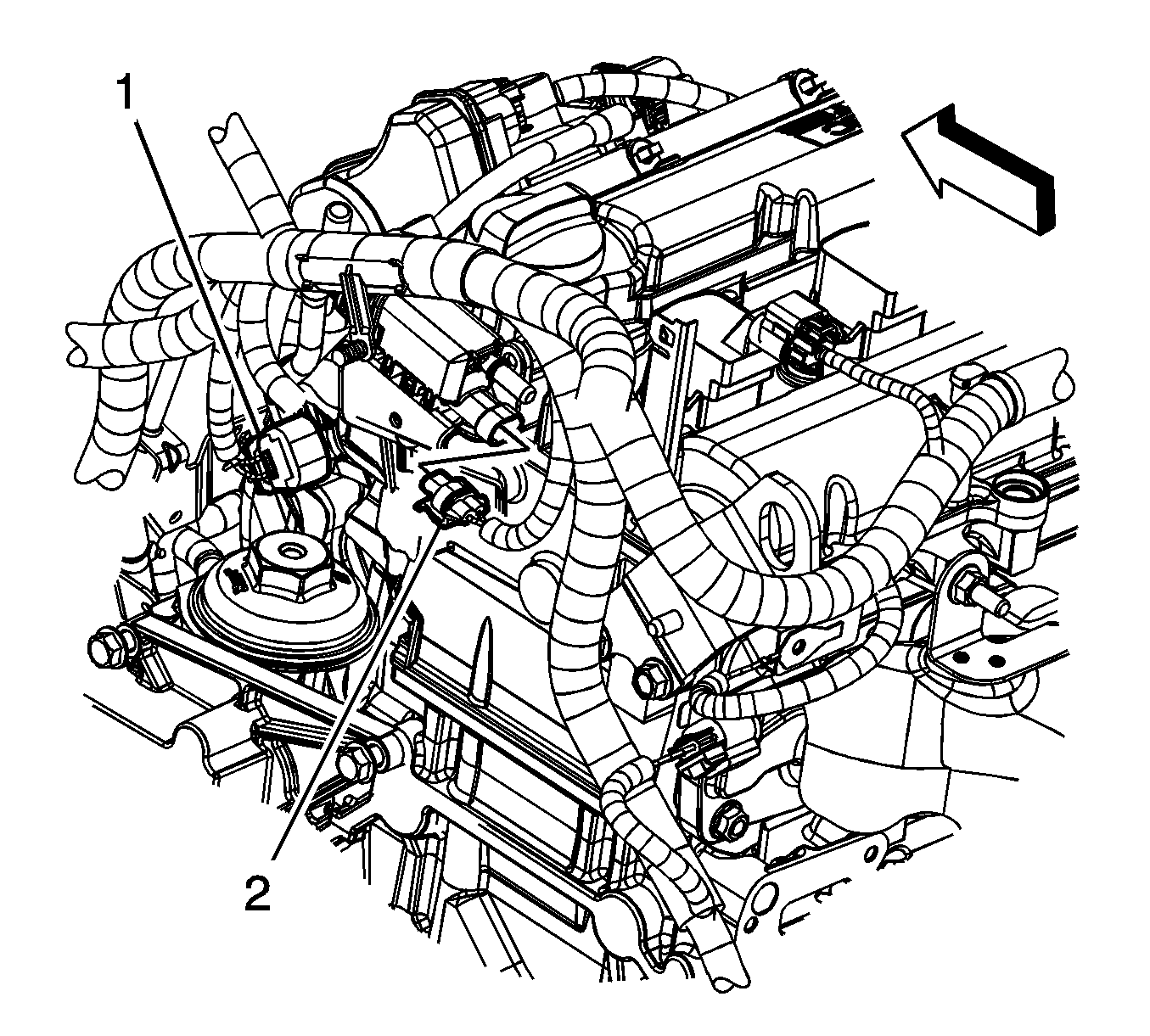

    4. Fig 2: Locating Intake Camshaft Position (Cmp) Sensor And Intake Camshaft Position (Cmp) Sensor Connectors
    GM1815154Courtesy of GENERAL MOTORS COMPANY
  4. Connect the engine wiring harness electrical connector (1) to the intake CMP sensor.
  5. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
  6. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
