Crankshaft Position Sensor Replacement

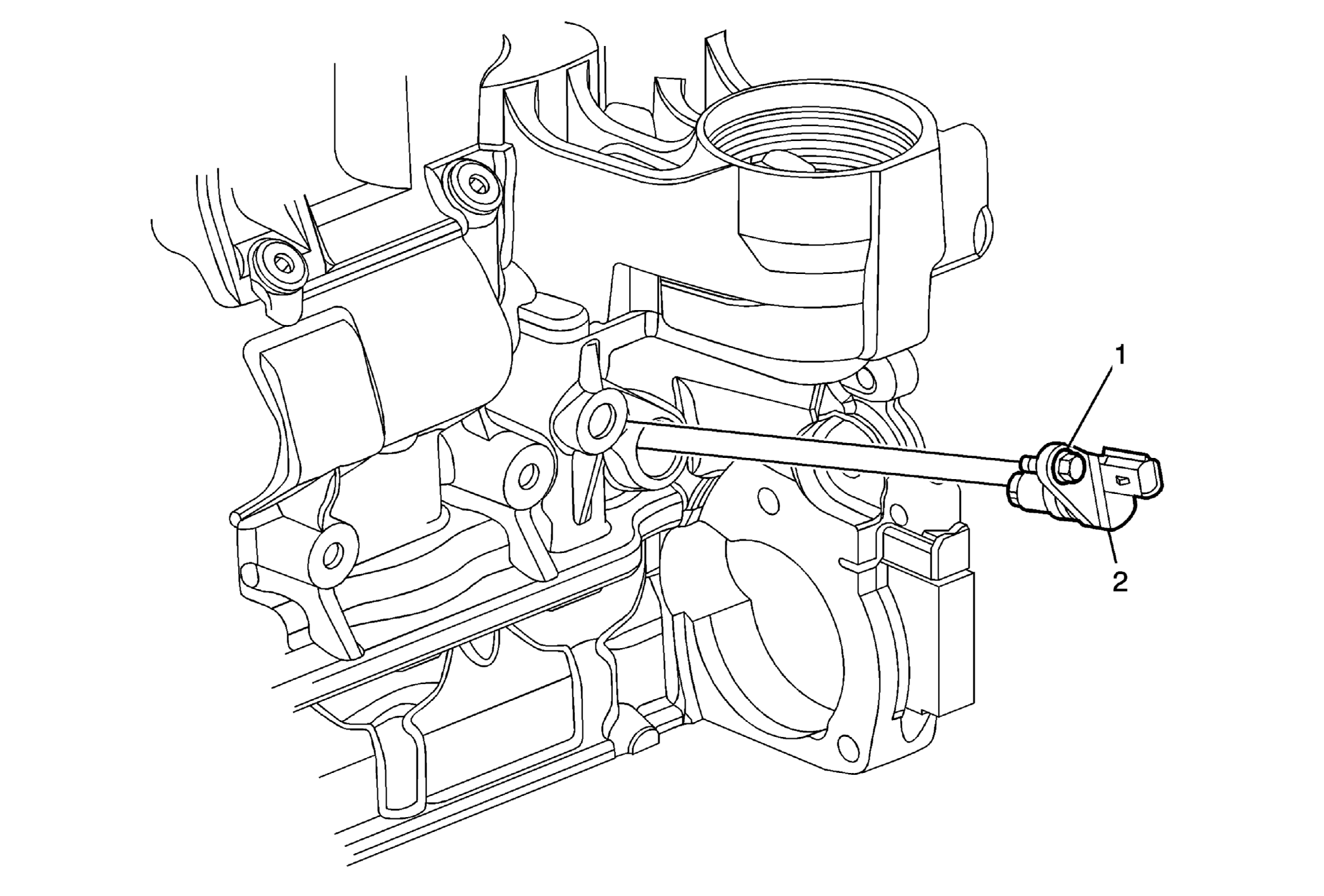

Fig 1: Crankshaft Position Sensor (LE5, LE9 or LAF)
GM2241629Courtesy of GENERAL MOTORS COMPANY
Crankshaft Position Sensor Replacement

Callout Component Name
1 Crankshaft Position Sensor Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Crankshaft Position Sensor
Procedure
Disconnect the electrical connector.
