Installation Procedure

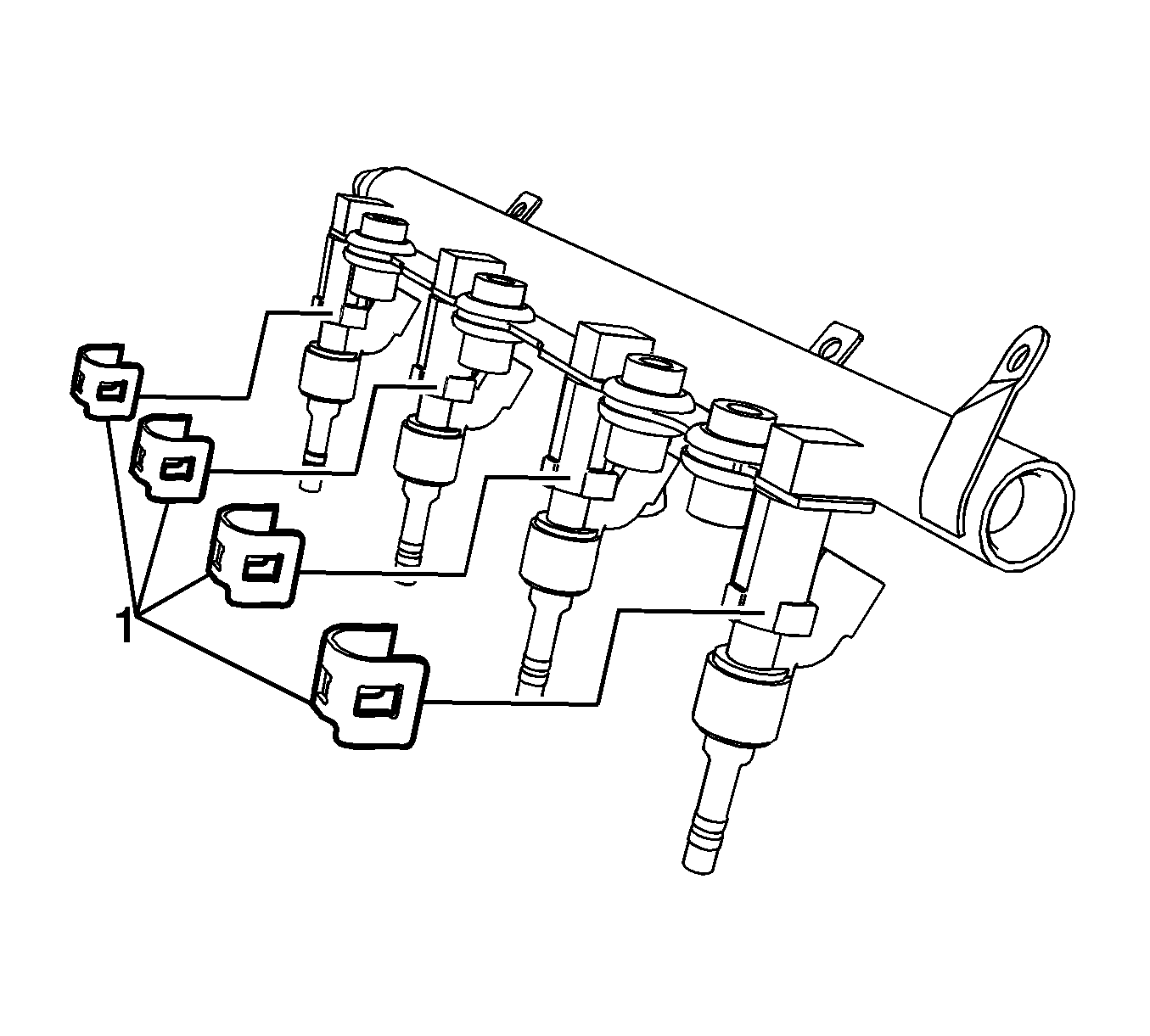

    Fig 1: Fuel Injector Retainers
    GM2242760Courtesy of GENERAL MOTORS COMPANY
  1. Install NEW fuel injector retainers (1).
    2. NOTE:

    The fuel injectors have an alignment feature and must be reinstalled as noted during removal.

  2. Install the fuel injection fuel rail assembly. Refer to Fuel Injection Fuel Rail Assembly Replacement .
