Engine Coolant Temperature Sensor Replacement

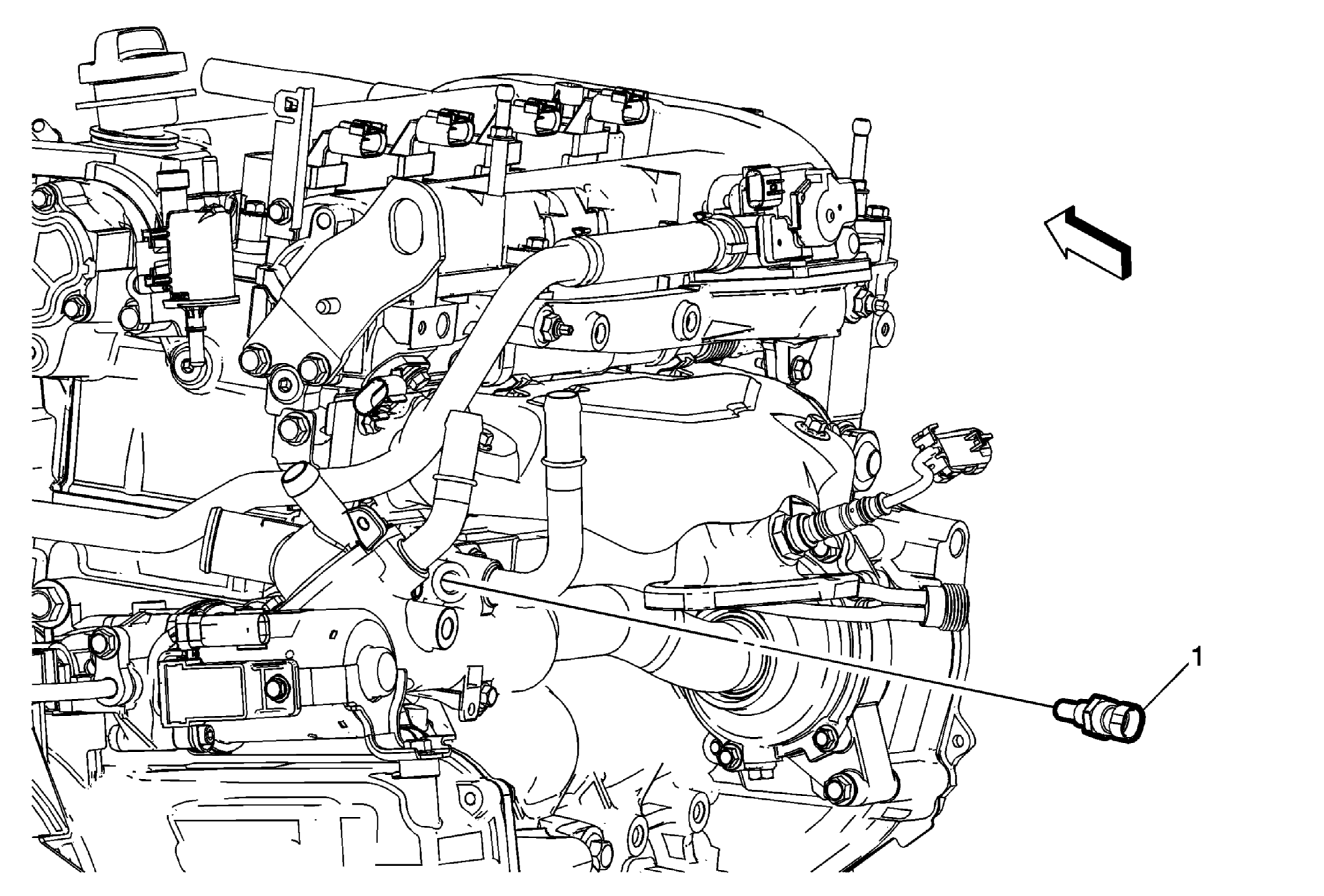

Fig 1: Engine Coolant Temperature Sensor
GM2579100Courtesy of GENERAL MOTORS COMPANY
Engine Coolant Temperature Sensor Replacement

Callout Component Name
1 Engine Coolant Temperature Sensor
CAUTION:

Refer to Fastener Caution .


Procedure
Disconnect the electrical connector.
Tighten
20 N.m (15 lb ft)
