Flexible Fuel Sensor Replacement

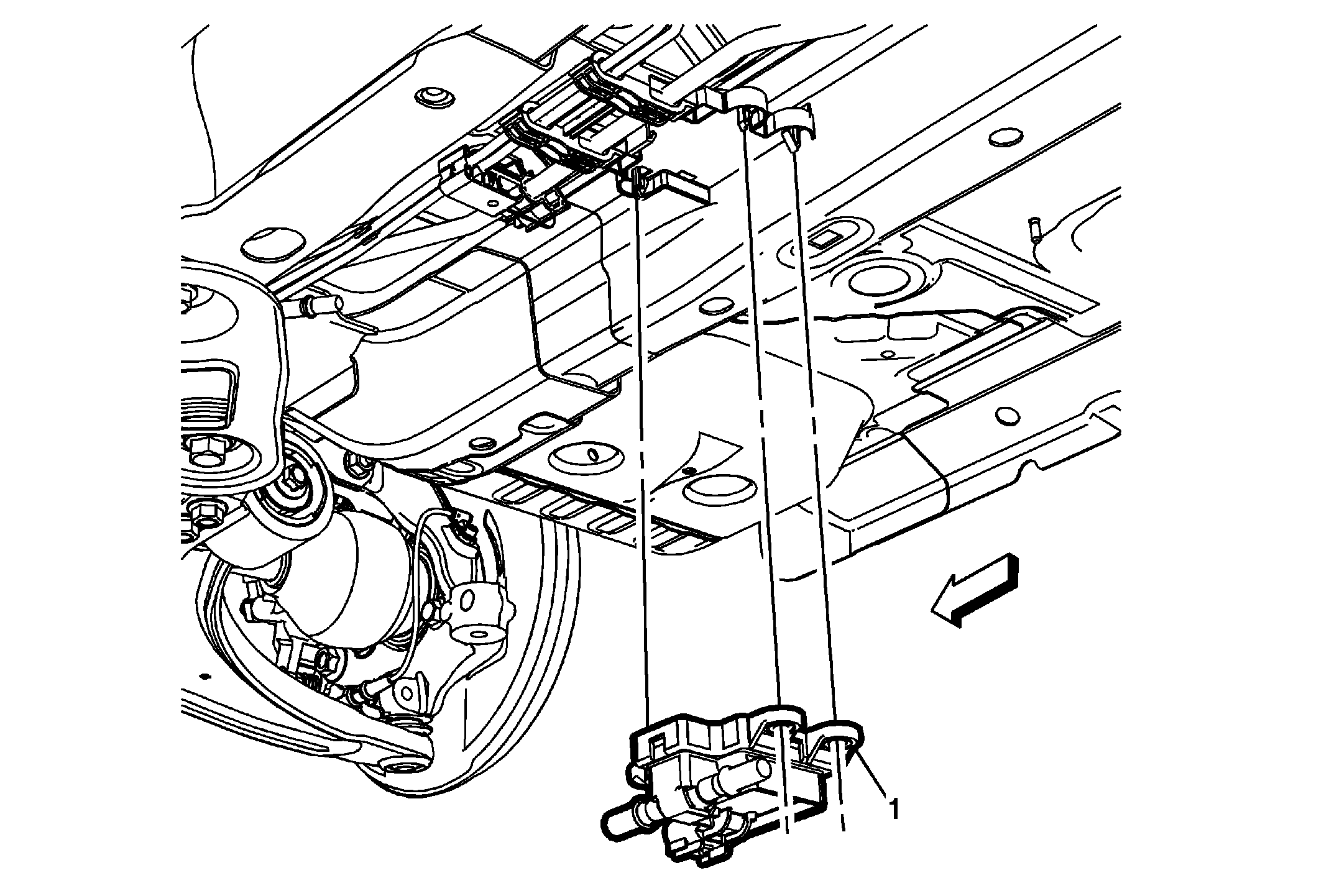

Fig 1: Flexible Fuel Sensor
GM2676777Courtesy of GENERAL MOTORS COMPANY
Flexible Fuel Sensor Replacement

Callout Component Name

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove fuel feed hose- flex sensor to fuel feed pipe. Refer to Fuel Feed Hose Replacement (Flex Sensor to Fuel Feed Pipe) , Fuel Feed Hose Replacement (Flex Sensor to Fuel Feed Front Pipe)
  3. Remove fuel feed hose- flex sensor to fuel feed front pipe. Refer to Fuel Feed Hose Replacement (Flex Sensor to Fuel Feed Pipe) , Fuel Feed Hose Replacement (Flex Sensor to Fuel Feed Front Pipe)
1 Flexiable Fuel Sensor.

Procedure

  1. Disconnect the electrical connector.
  2. Depress tabs to release sensor.
