Fuel Feed Intermediate Pipe Replacement

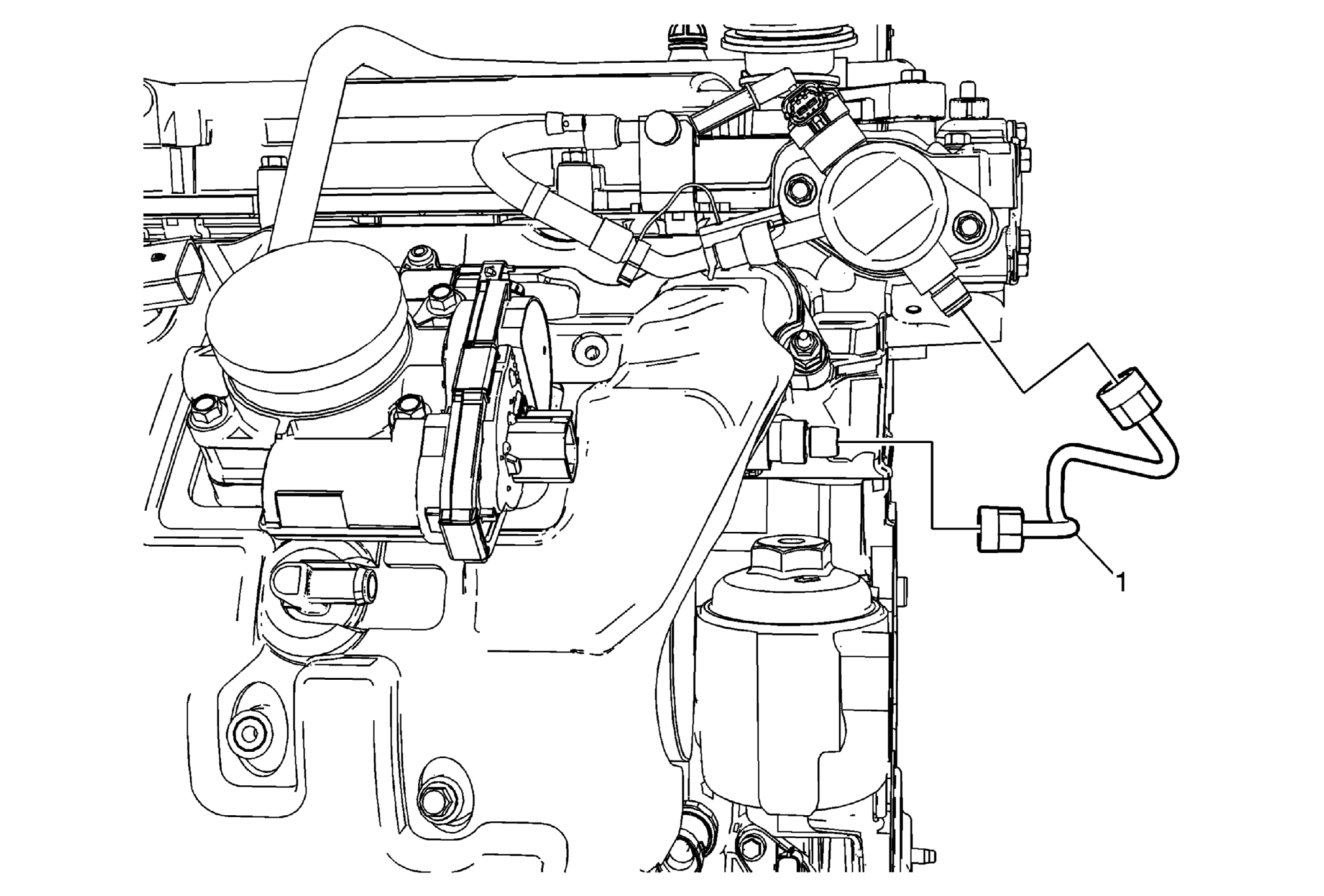

Fig 1: Fuel Feed Intermediate Pipe
GM2241732Courtesy of GENERAL MOTORS COMPANY
Fuel Feed Intermediate Pipe Replacement

Callout Component Name

Preliminary Procedures

  1. Relieve the system pressure. Refer to Fuel Pressure Relief .
  2. Remove the fuel pump cover. Refer to Fuel Pump Cover Replacement .
1 Fuel Feed Intermediate Pipe
CAUTION:

Refer to Fastener Caution .

Procedure

  1. DISCARD the pipe when removed, and install a NEW pipe.
  2. Lubricate the pipes with silicon free engine oil. Refer to Adhesives, Fluids, Lubricants, and Sealers .
  3. Pressurize the fuel system and inspect for leaks.

Tighten
30 N.m (22 lb ft)
