Installation Procedure

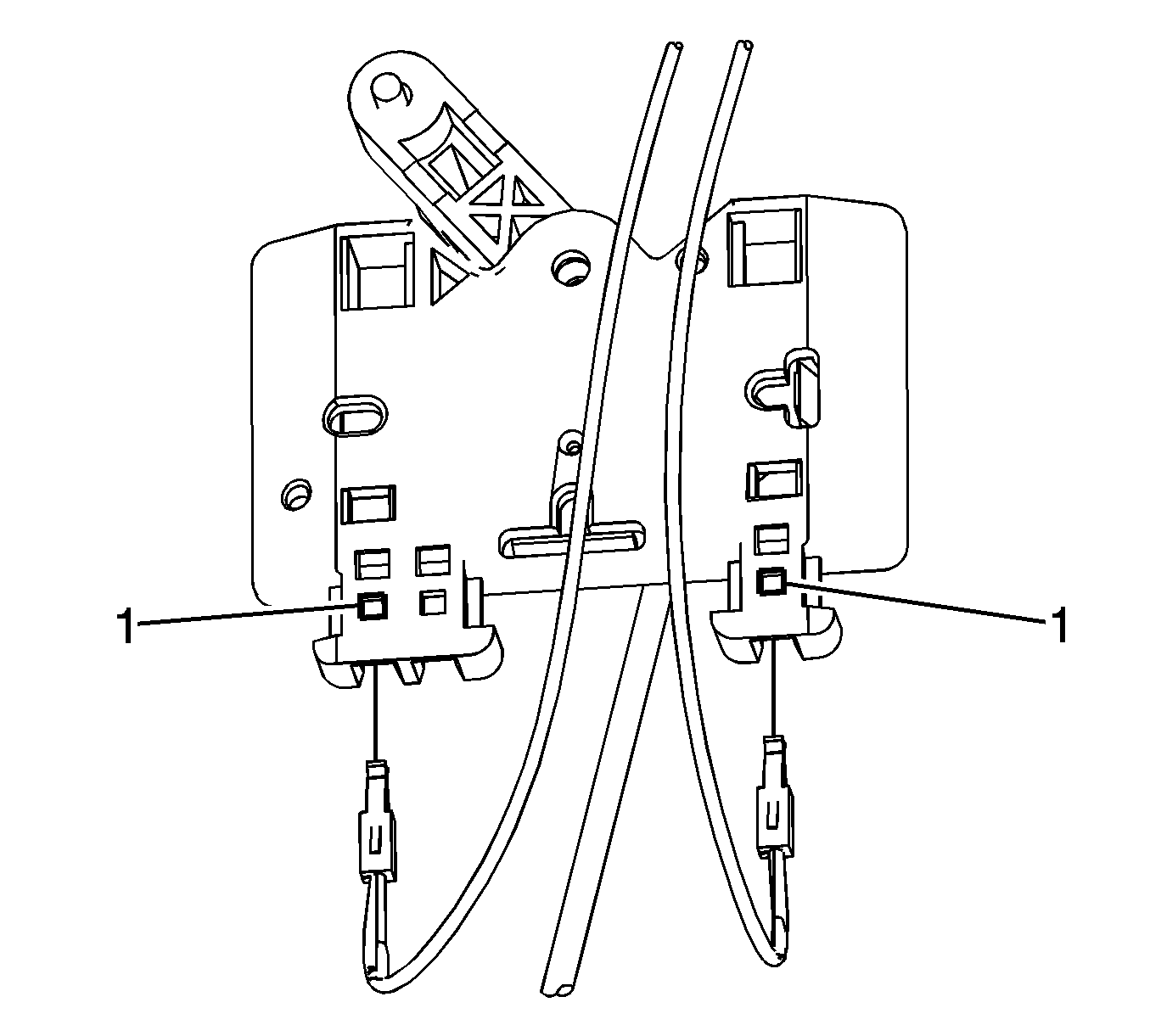

    Fig 1: Identifying Electrical Terminals
    GM2029362Courtesy of GENERAL MOTORS COMPANY
  1. Push in the electrical terminals (1) and ensure the terminals are secure.

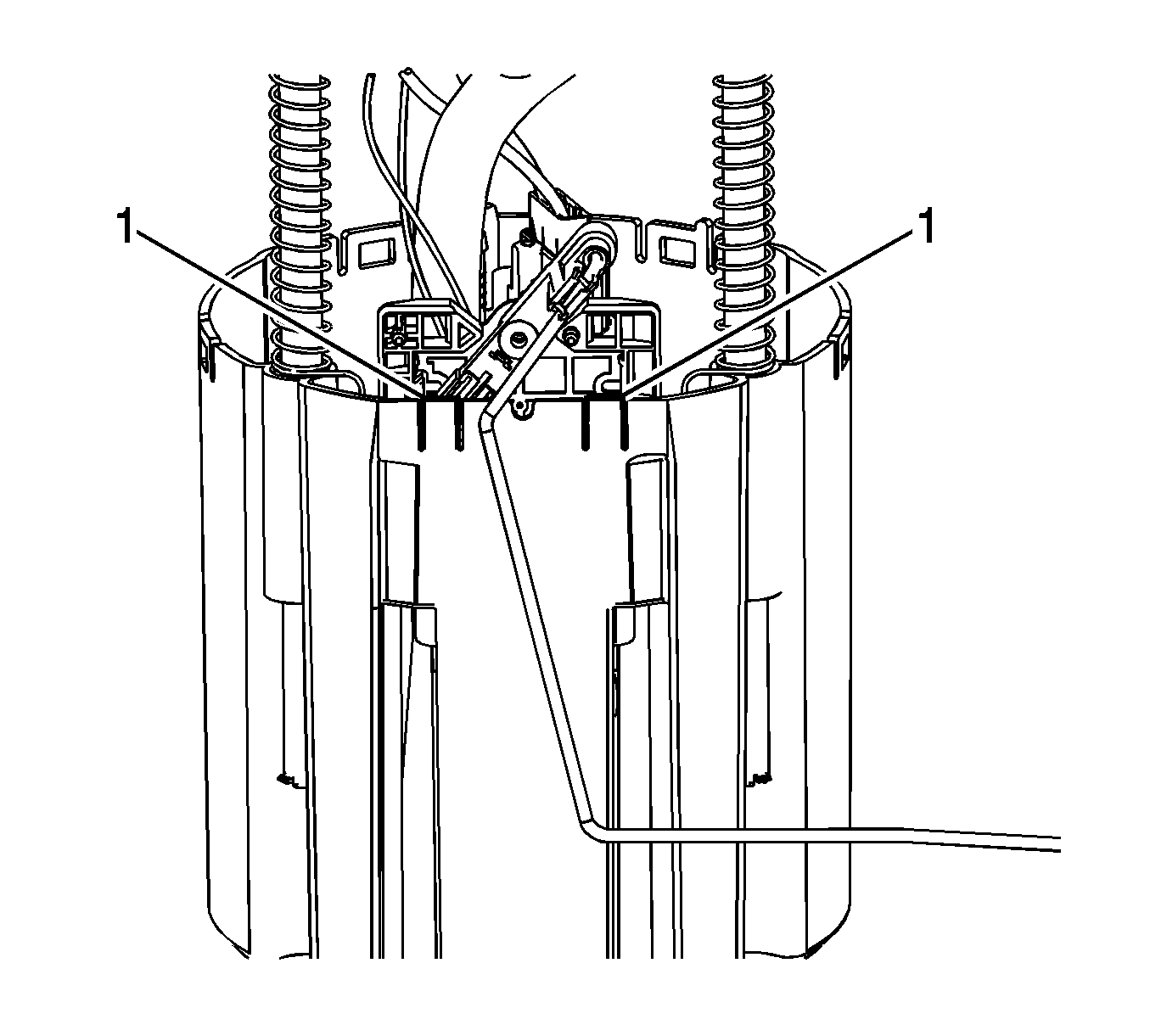

    2. Fig 2: Identifying Locking Tabs
    GM2029355Courtesy of GENERAL MOTORS COMPANY
  2. Carefully insert the level sensor until the locking tabs (1) snap into the locking position.
  3. Install the fuel tank pump module. Refer to Fuel Tank Fuel Pump Module Replacement (NT7) , Fuel Tank Fuel Pump Module Replacement (NU6) .
