Fuel Pump Flow Control Module Replacement

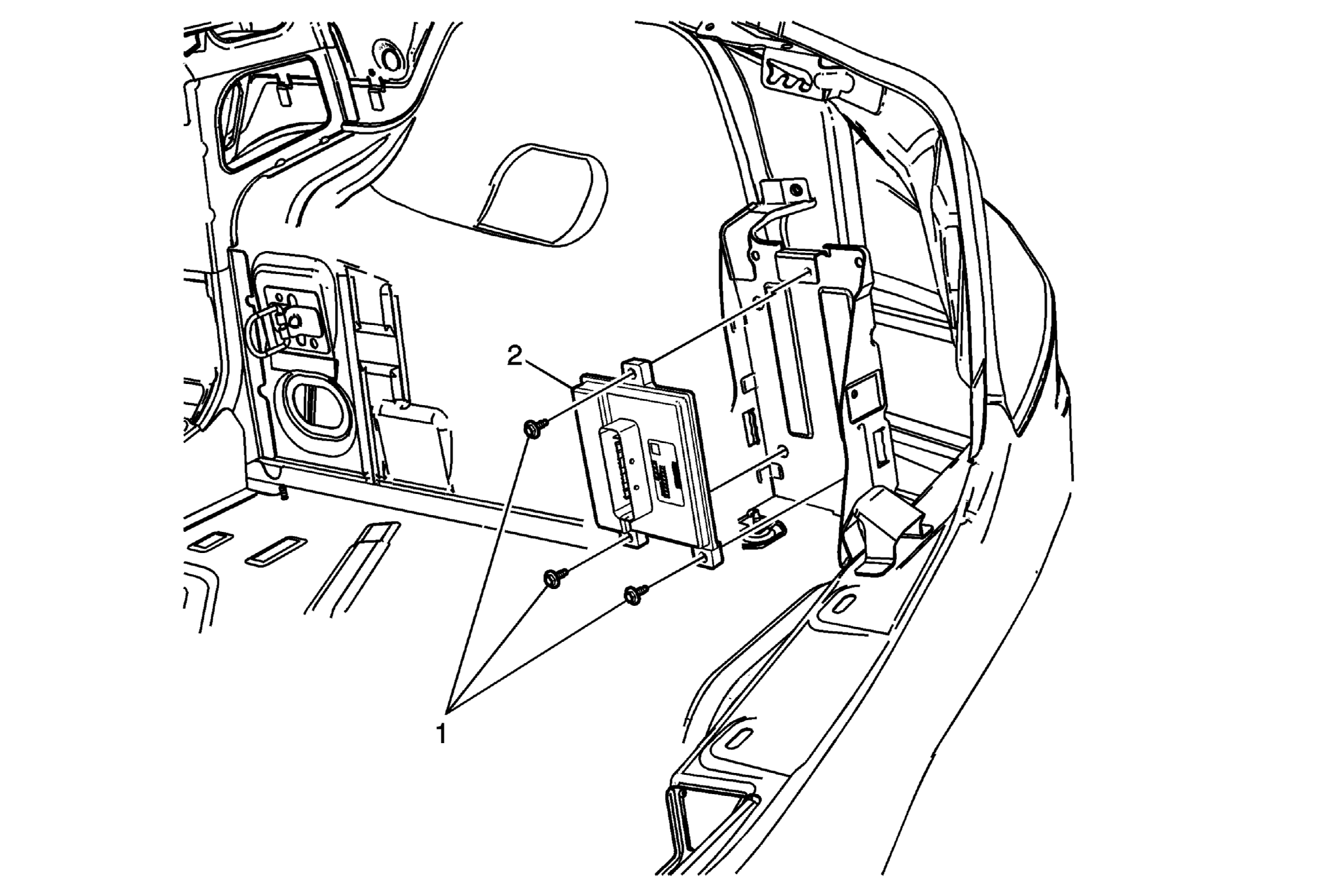

Fig 1: Fuel Pump Flow Control Module
GM2206953Courtesy of GENERAL MOTORS COMPANY
Fuel Pump Flow Control Module Replacement

Callout Component Name
Preliminary Procedure
Remove the passenger rear side trim panel. Refer to Rear Compartment Side Trim Panel Replacement (without HP6) , Rear Compartment Side Trim Panel Replacement (HP6, Left Side) , Rear Compartment Side Trim Panel Replacement (HP6, Right Side) .
1 Fuel Pump Flow Control Module Fastener (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Fuel Pump Flow Control Module

Procedure

  1. Disconnect the electrical connector.
  2. If replacing, reprogram the module. Refer to Control Module References .
