Installation Procedure

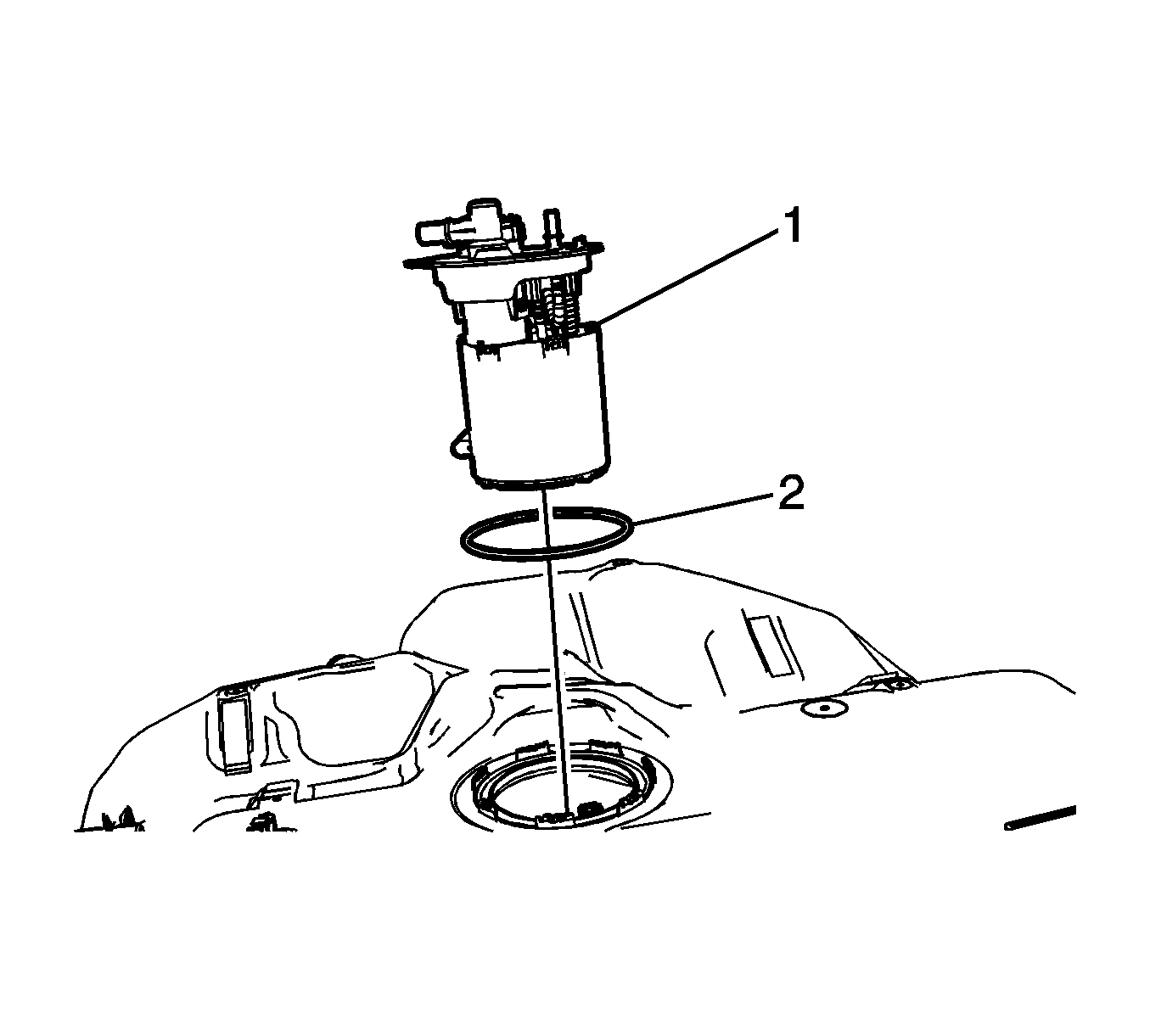

    Fig 1: Fuel Tank Module & O-Ring
    GM2205628Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW seal (2) and the fuel tank module (1).

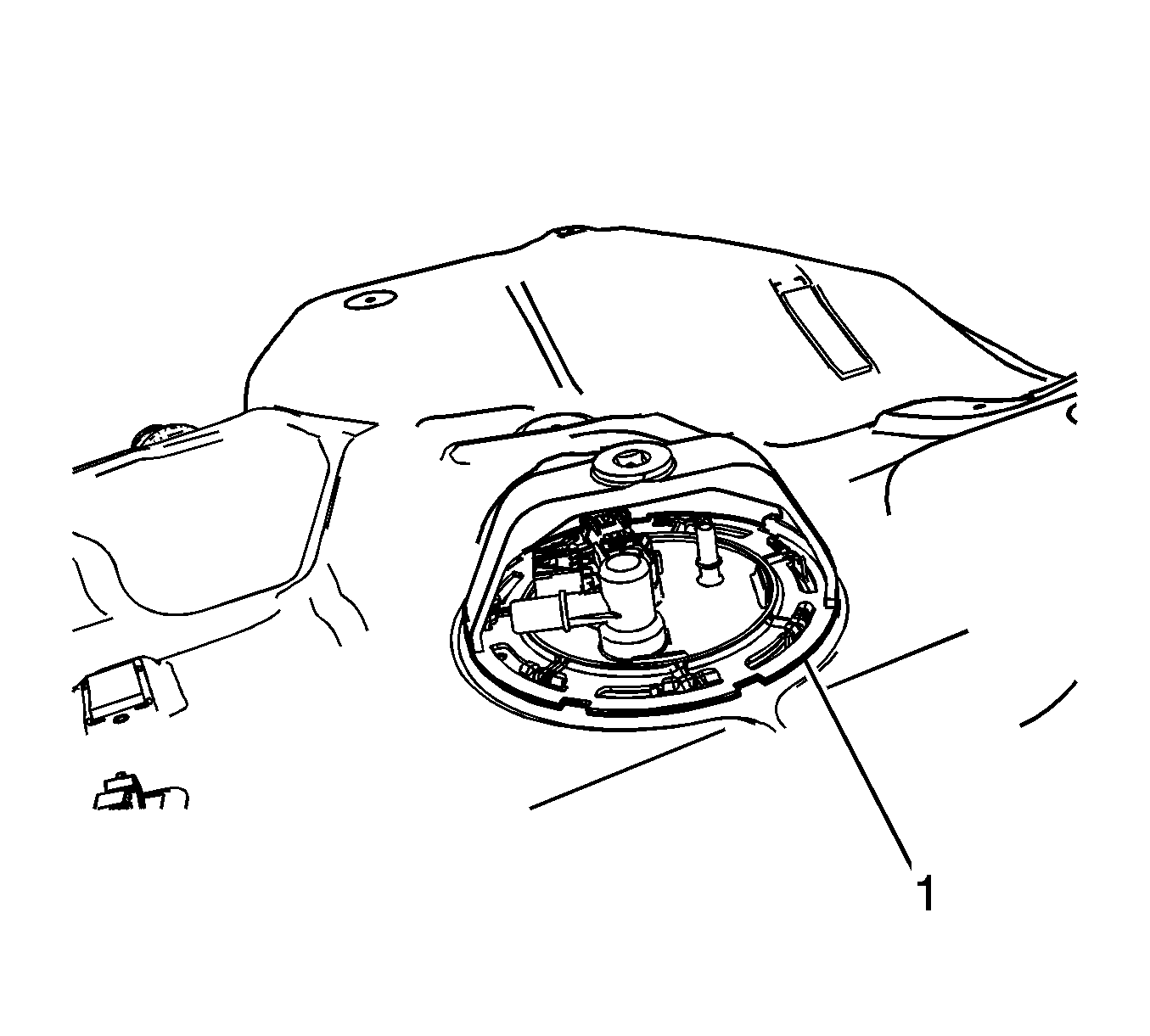

    2. Fig 2: Lock Ring
    GM2205627Courtesy of GENERAL MOTORS COMPANY
  2. Use the J 45722  wrench by turning clockwise and install the lock ring (1).

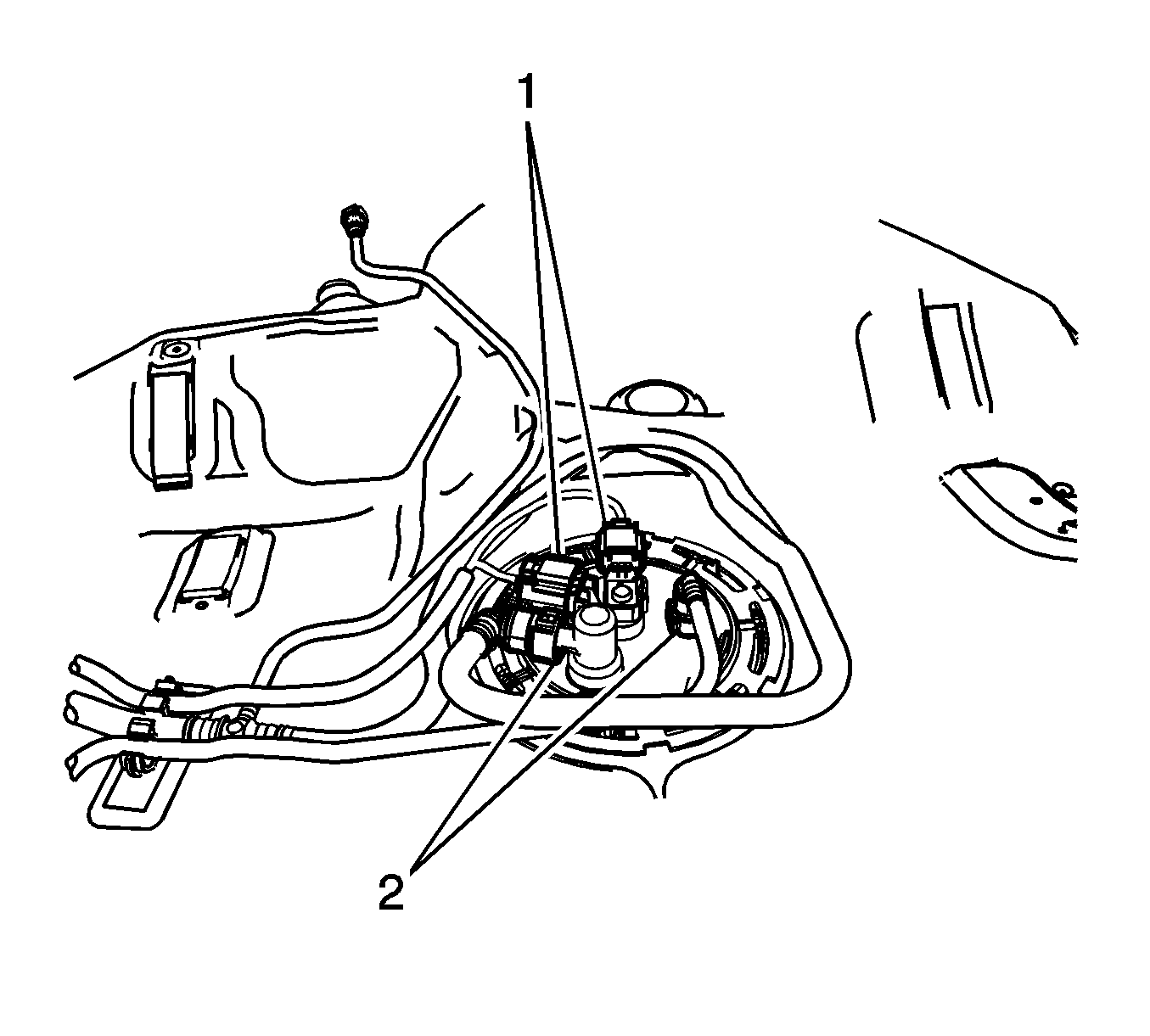

    3. Fig 3: Fuel Pump Electrical Connector & Quick Connects
    GM2205626Courtesy of GENERAL MOTORS COMPANY
  3. Connect the fuel pump electrical connector (1) and the quick connects (2). Refer to Plastic Collar Quick Connect Fitting Service .
  4. Install the fuel tank. Refer to Fuel Tank Replacement .
