Fuel Tank Vent Pipe Replacement

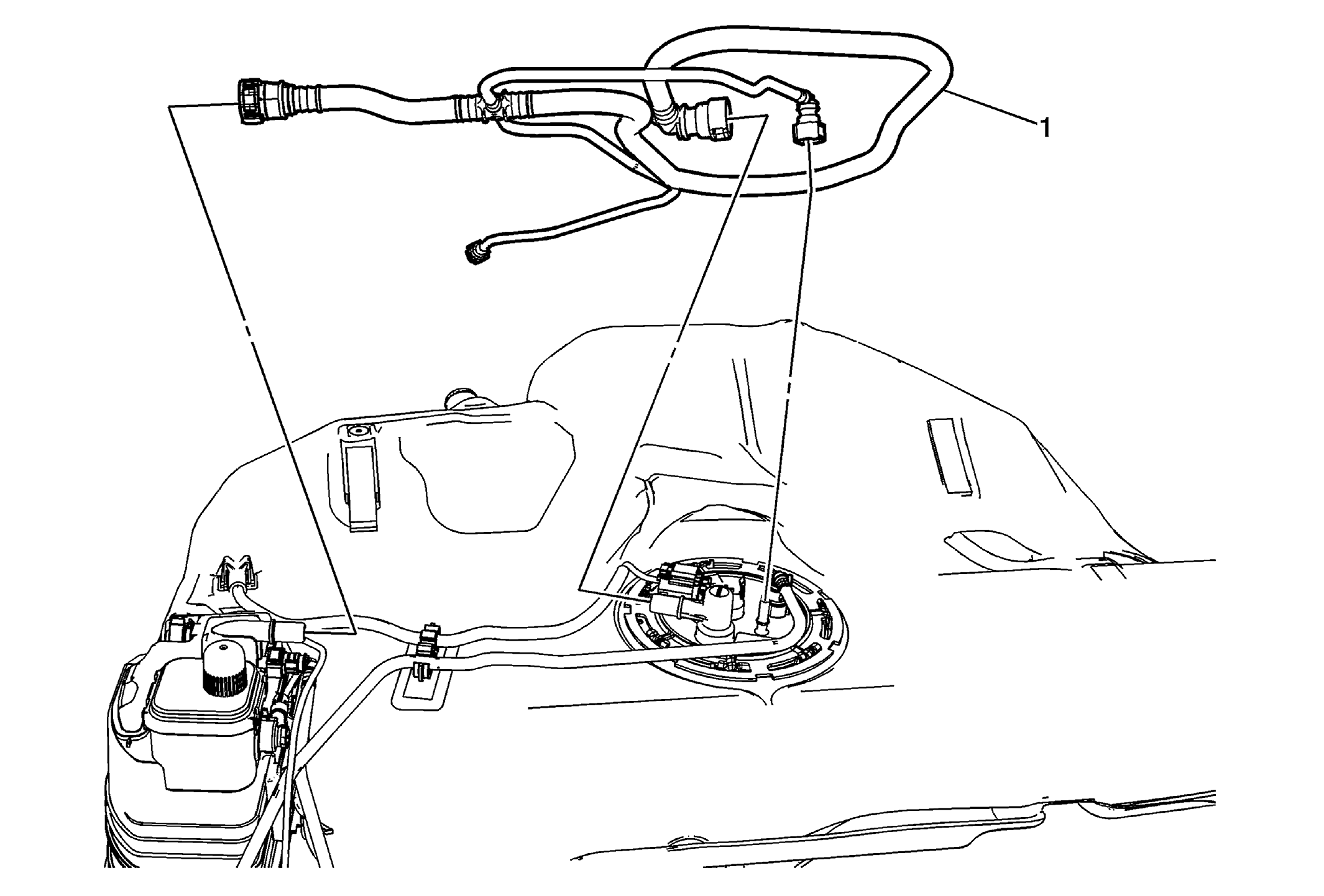

Fig 1: Evaporative Emission Canister Vent Front Pipe
GM2202562Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Vent Pipe Replacement

Callout Component Name
Preliminary Procedure
Remove the fuel tank. Refer to Fuel Tank Replacement .
1 Evaporative Emission Canister Vent Front Pipe
Procedure
Disconnect the evaporative emission quick connects. Refer to Plastic Collar Quick Connect Fitting Service .
