Manifold Absolute Pressure Sensor Replacement

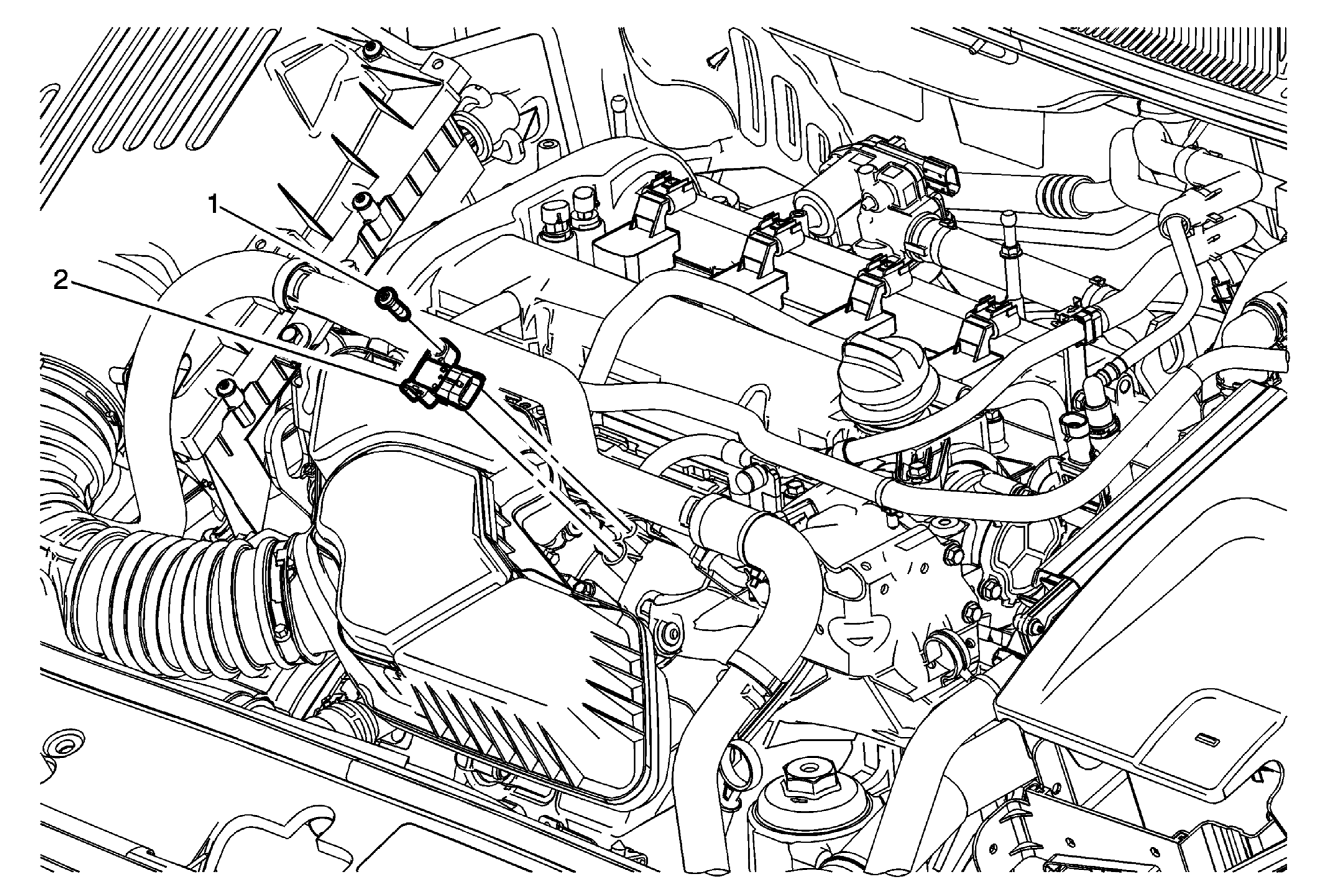

Fig 1: Manifold Absolute Pressure Sensor
GM2579130Courtesy of GENERAL MOTORS COMPANY
Manifold Absolute Pressure Sensor Replacement

Callout Component Name
1 Manifold Absolute Pressure Sensor Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
4 N.m(35 lb in)
2 Manifold Absolute Pressure Sensor
