Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

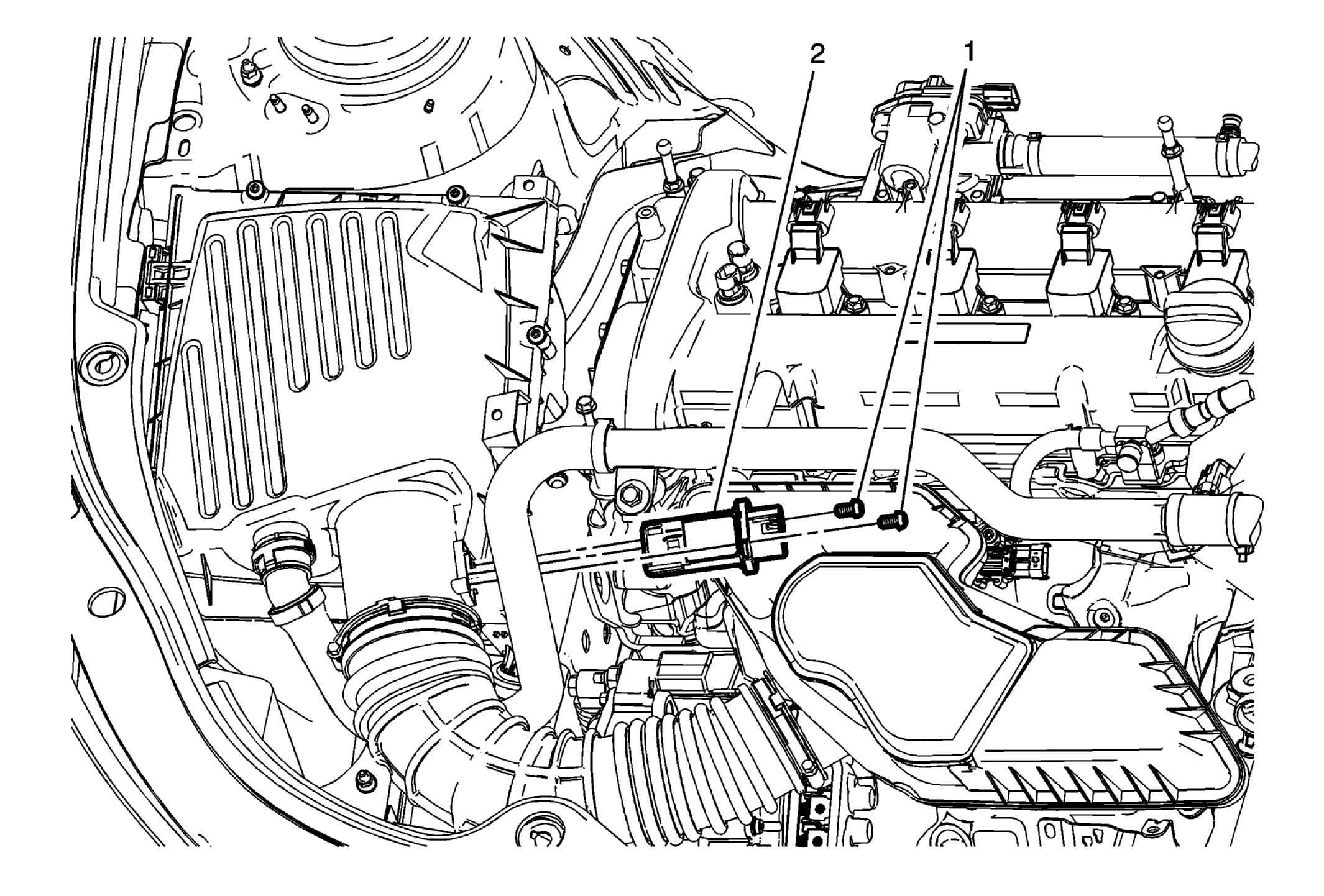

Fig 1: Mass Airflow Sensor with Intake Air Temperature Sensor
GM2579096Courtesy of GENERAL MOTORS COMPANY
Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

Callout Component Name
1 Mass Airflow Sensor Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
4 N.m(35 lb in)
2 Mass Airflow Sensor
Procedure
Disconnect the electrical connector.
