Installation Procedure
- Apply a few drops of clean engine oil to the male pipe end.
- Push both sides of the quick-connect fitting together in order to cause the retaining feature to snap into place.
- Pull on both sides of the quick-connect fitting to make sure the connection is secure.
- Insert the tube in the connector until the retainer snaps in place.

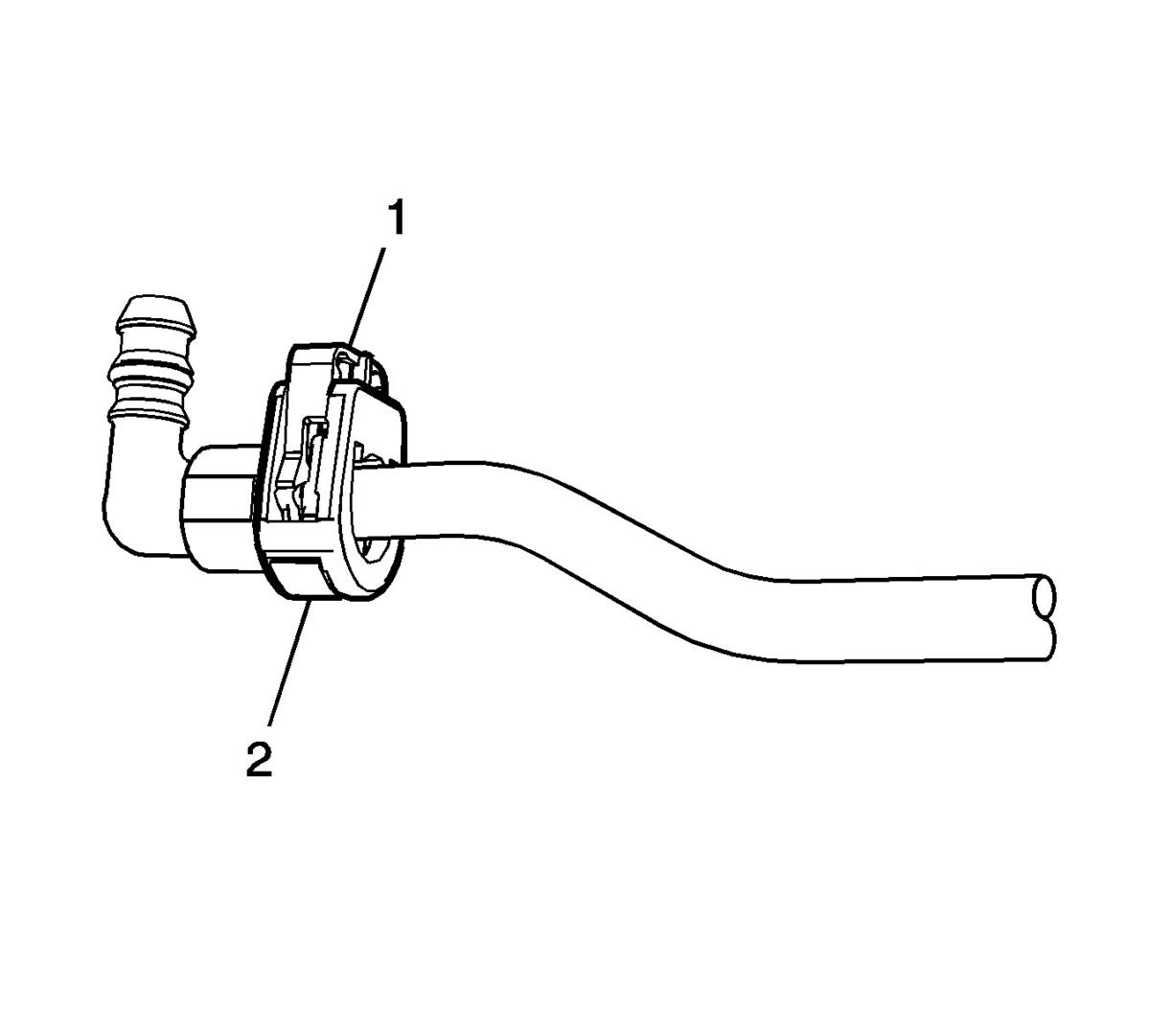

- Push down on the redundant latch (1) until it is fully engaged and snapped into position.
- Insert the tube in the connector until the retainer snaps in place.

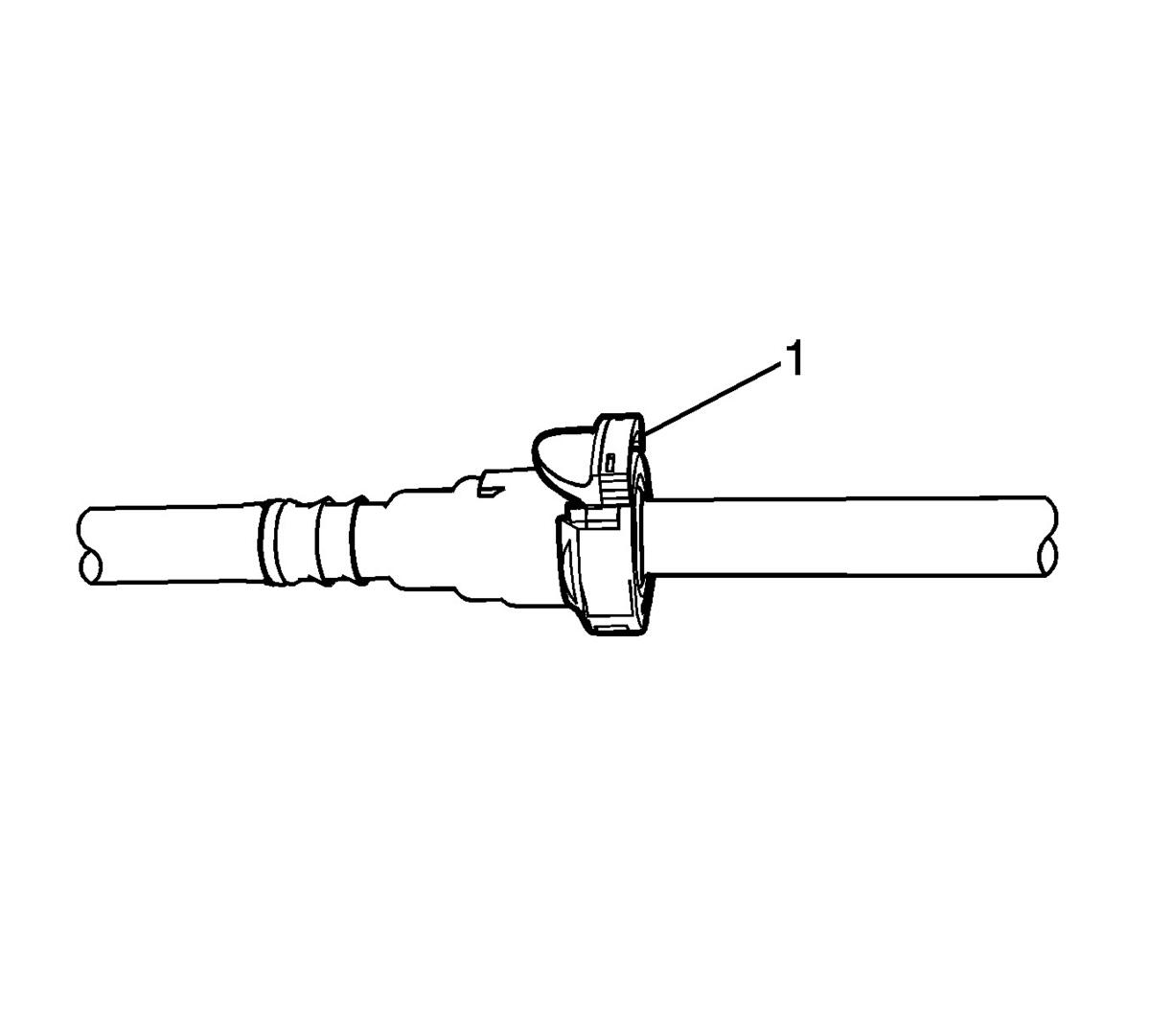

- Push down on the second latch (1) in order to secure the connection.

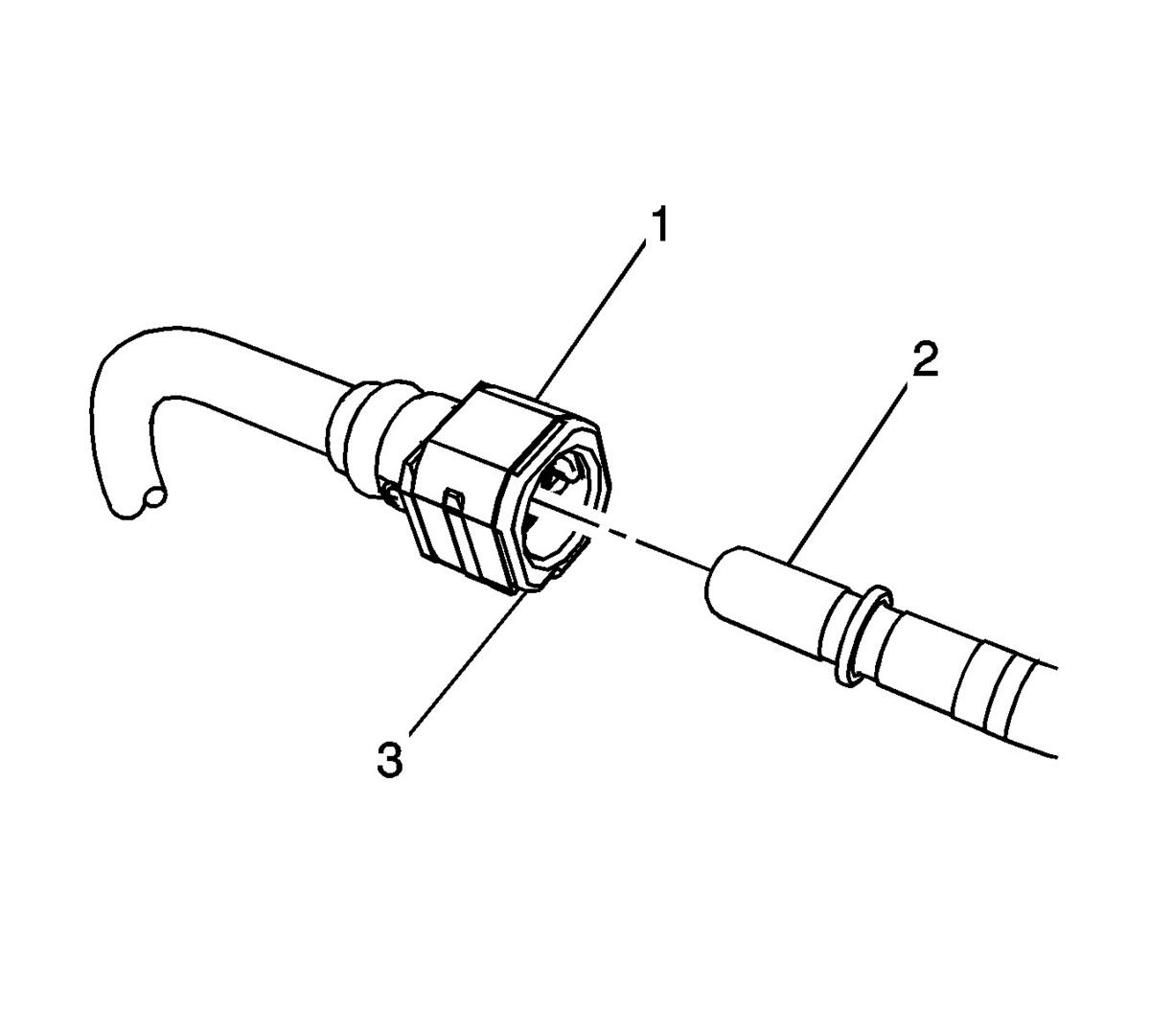

- For the plastic connector type 8, depress the latch (1) while inserting the connector (3) on to the pipe (2).
- Move the latch (1) upward in order to secure the connection.
- Inspect for leaks using the following procedure:
- Turn the ignition ON, with the engine OFF for 2 seconds.
- Turn the ignition OFF, for 10 seconds.
- Turn the ignition ON, with the engine OFF for 2 seconds.
- Turn the ignition OFF.
- Inspect for leaks.
WARNING:
Always apply a few drops of clean engine oil to the male pipe ends before connecting the fuel pipe fittings. This will ensure proper reconnection and prevent a possible fuel leak. Always replace O-rings.
