Secondary Air Injection Pump Replacement

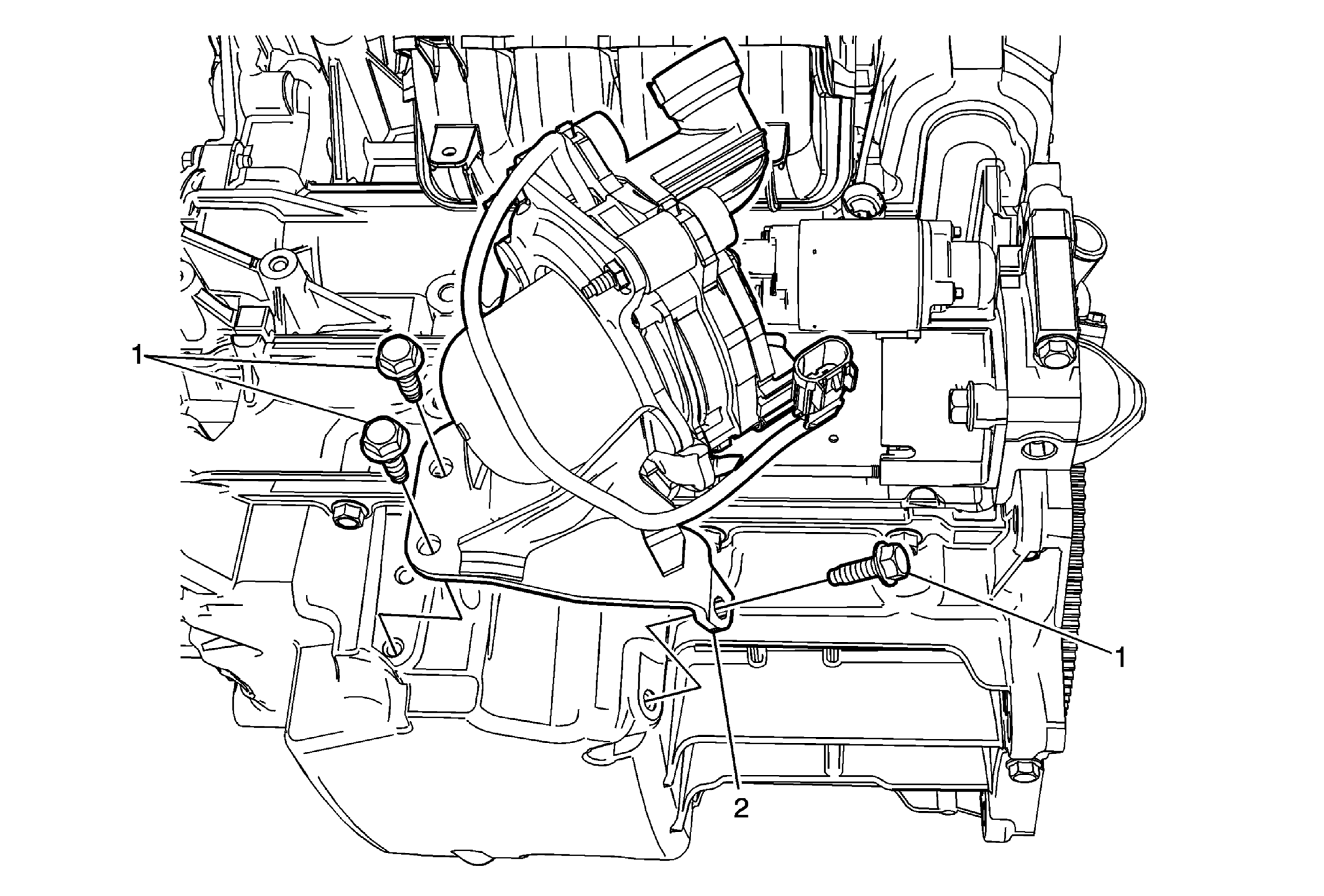

Fig 1: Secondary Air Injection Pump Replacement & Bolts
GM2094061Courtesy of GENERAL MOTORS COMPANY
Secondary Air Injection Pump Replacement

Callout Component Name
Preliminary Procedure
Disconnect the secondary injection pump hose. Refer to Secondary Air Injection Pump Hose Replacement
1 Secondary Air Injection Pump Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
30 N.m(22 lb ft).
2 Secondary Air Injection Pump
