Installation Procedure

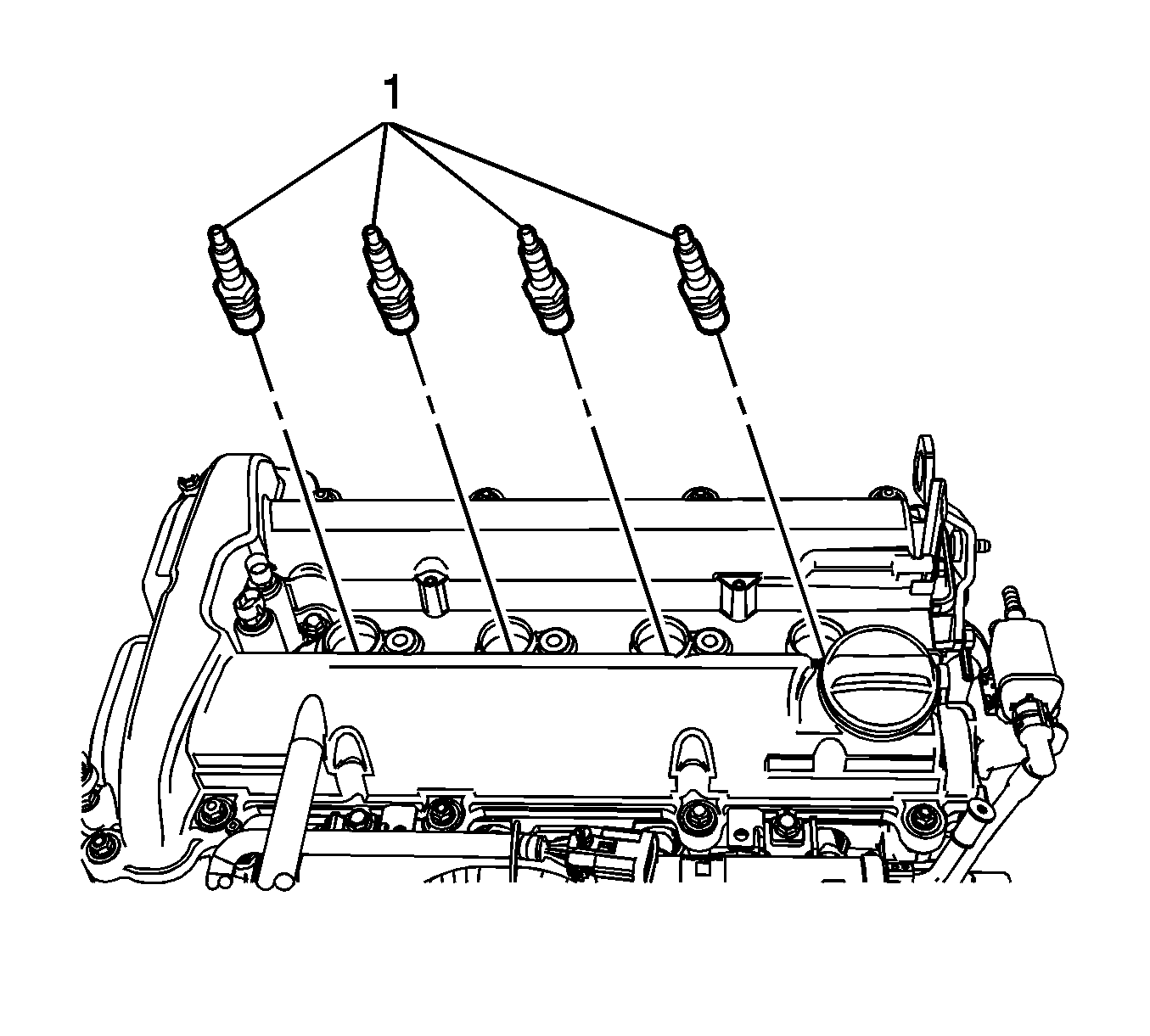

- Install the spark plugs (1).
Specification
The spark plug gap is 1.0 mm (0.040 in).
Tighten
Tighten the plugs to 20 N.m (15 lb ft).
- Install the ignition coil(s). Refer to Ignition Coil Replacement .
CAUTION:
Refer to Fastener Caution .
CAUTION:
Do not coat spark plug threads with anti-seize compound. If anti-seize compound is used and spark plugs are over-torqued, damage to the cylinder head threads may result.
