Throttle Body Assembly Replacement

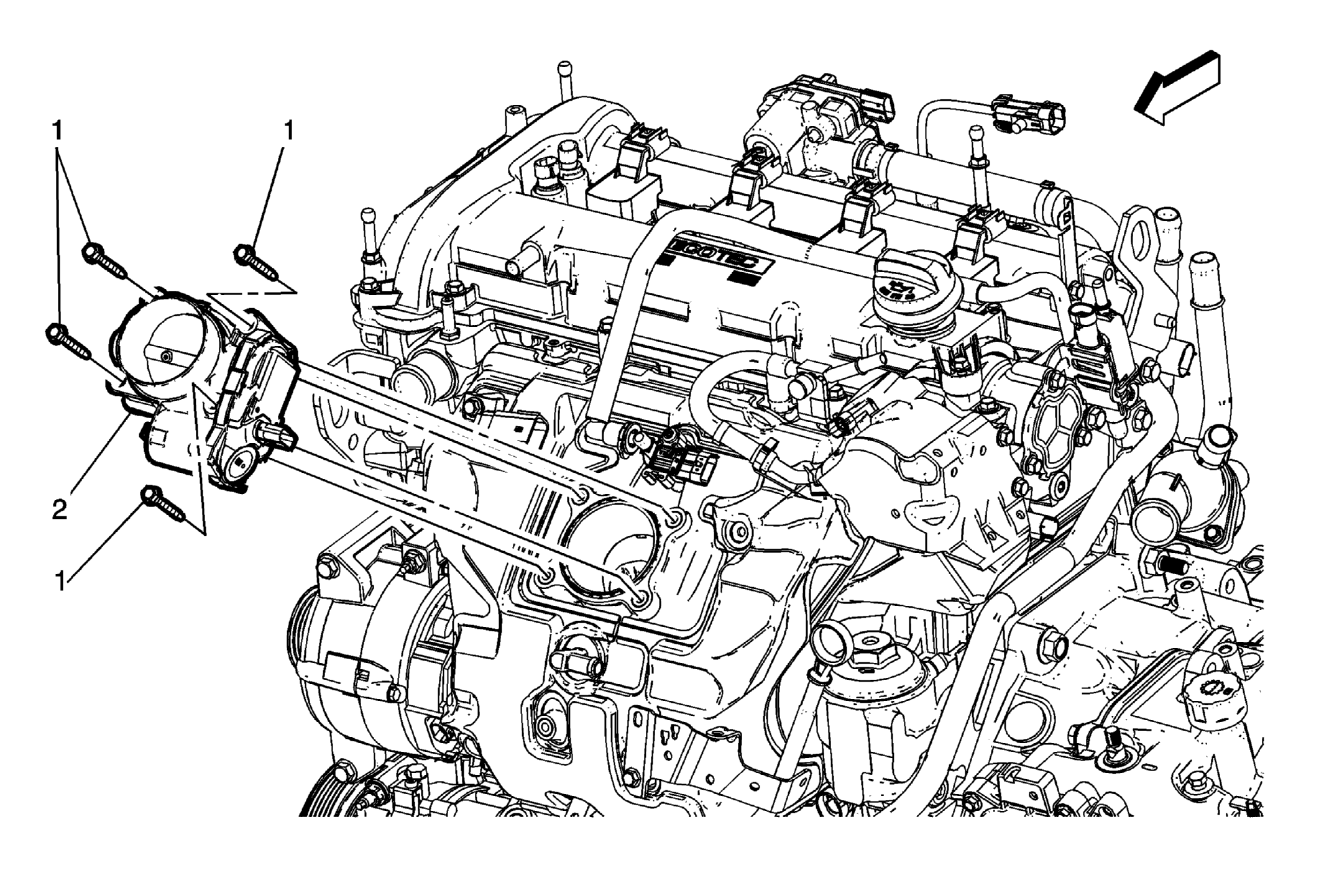

Fig 1: Throttle Body Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Throttle Body Assembly Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 10 N.m (89 lb in)
2	Throttle Body Assembly Procedure Disconnect the electrical connector. Use a NEW throttle body O-ring. Perform the throttle learn procedure. Refer to Throttle/Idle Learn .

Callout

Component Name

Preliminary Procedure
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement

Throttle Body Assembly Fastener (Qty: 4)

CAUTION:

Procedure
Disconnect the electrical connector.
Tighten
10 N.m (89 lb in)

Throttle Body Assembly

Procedure
