Air Cleaner Outlet Duct Replacement

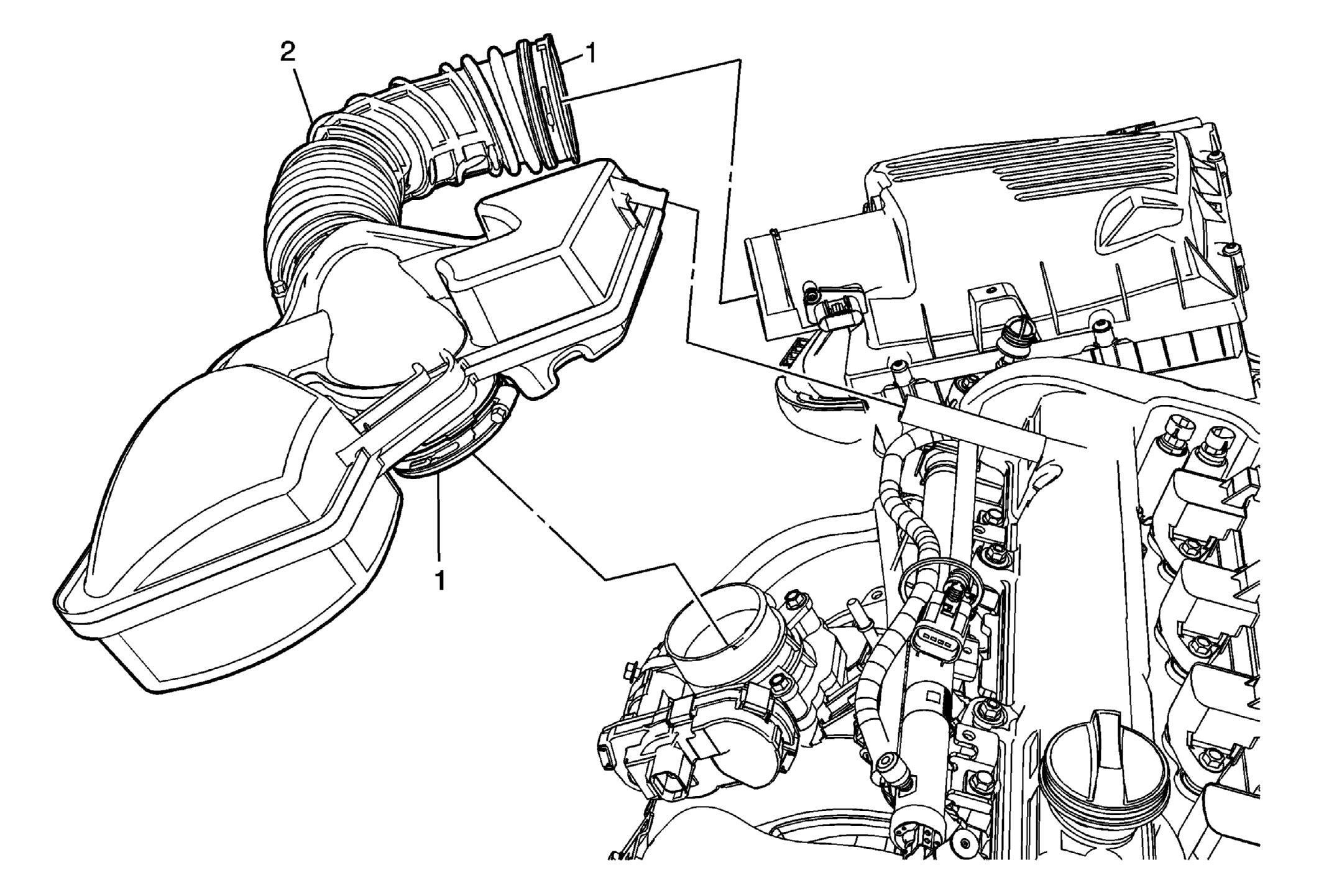

Fig 1: Air Cleaner Outlet Duct
GM2223549Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Outlet Duct Replacement

Callout Component Name
1 Air Cleaner Outlet Duct Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
4 N.m (35 lb in)
2 Air Cleaner Outlet Duct with Resonator
