Body Control Module Bracket Replacement

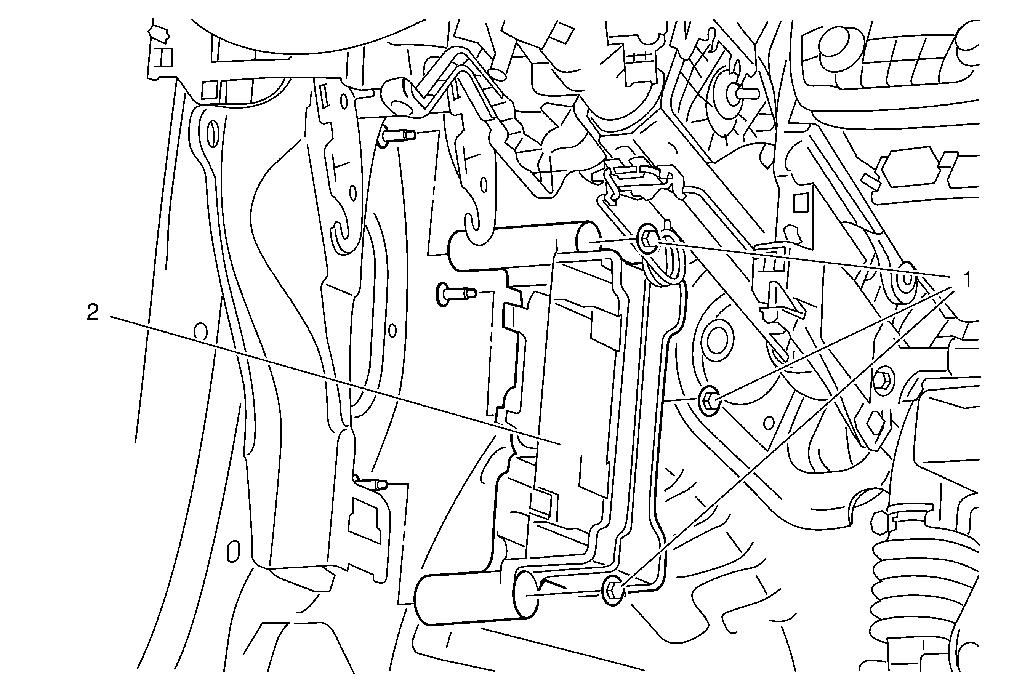

Fig 1: Body Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the body control module. Refer to Body Control Module Replacement (Left Hand Drive) . Remove the headlamp control module. Refer to Headlamp Control Module Replacement . Remove the floor air outlet duct - left side. Refer to Floor Air Outlet Duct Replacement - Left Side .
1	Body Control Module Bracket Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Body Control Module Bracket

Callout

Component Name

Preliminary Procedures

Remove the body control module. Refer to Body Control Module Replacement (Left Hand Drive) .
Remove the headlamp control module. Refer to Headlamp Control Module Replacement .
Remove the floor air outlet duct - left side. Refer to Floor Air Outlet Duct Replacement - Left Side .

Body Control Module Bracket Fastener (Qty: 3)

CAUTION:

Tighten
9 N.m (80 lb in)

Body Control Module Bracket
