Body Control Module Replacement (Left Hand Drive)

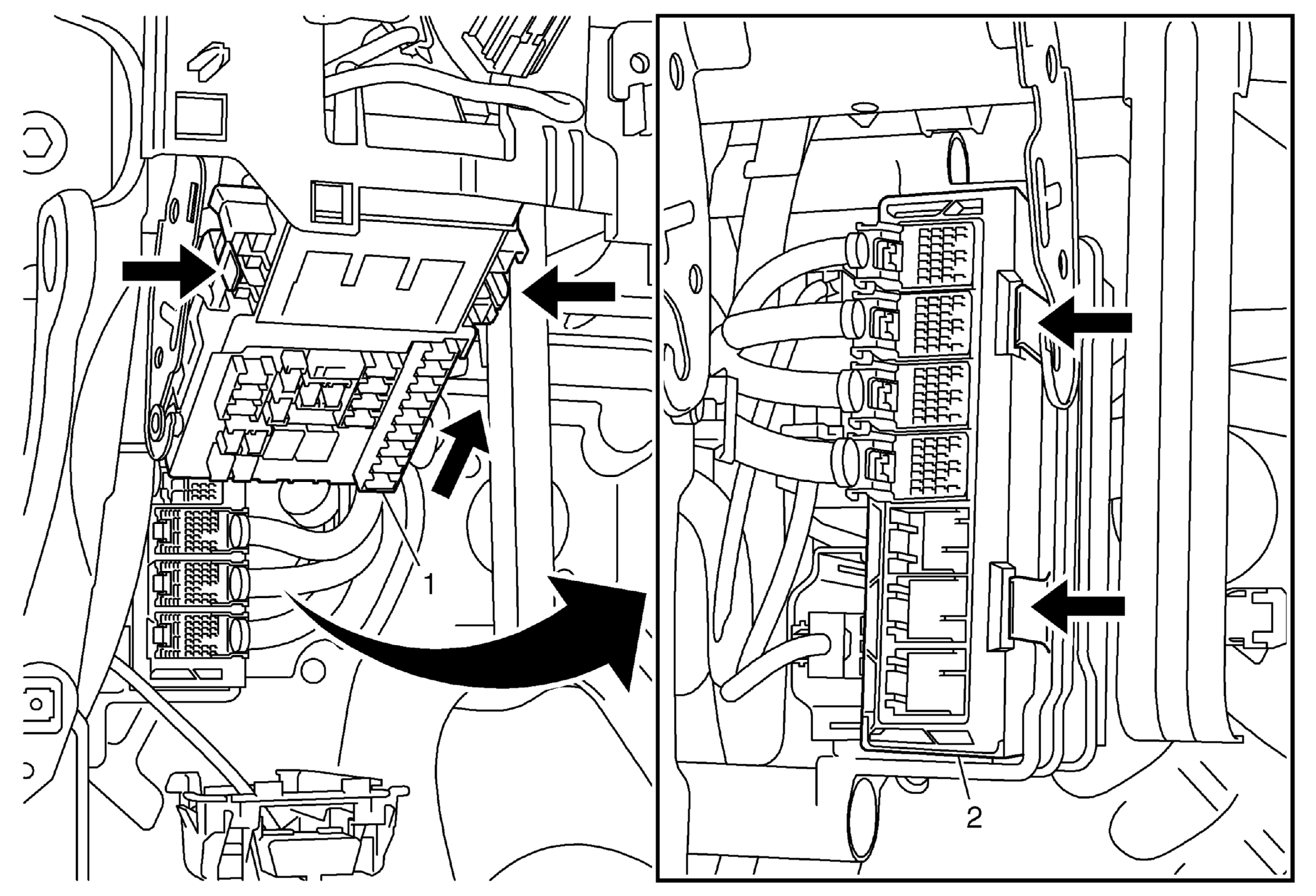

Fig 1: Body Control Module (Left Hand Drive)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower trim panel- left side. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side .
1	Inner Electrical Center Procedure Disconnect the lower three electrical connectors on the body control module. Clip out the inner electrical center.
2	Body Control Module Procedure Disconnect the upper four electrical connectors on the body control module. Pull out the body control module of the bracket. For programming and set up information, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the instrument panel lower trim panel- left side. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side .

Inner Electrical Center

Procedure

Body Control Module

Procedure
