Power, Ground and Serial Data Wiring Schematics

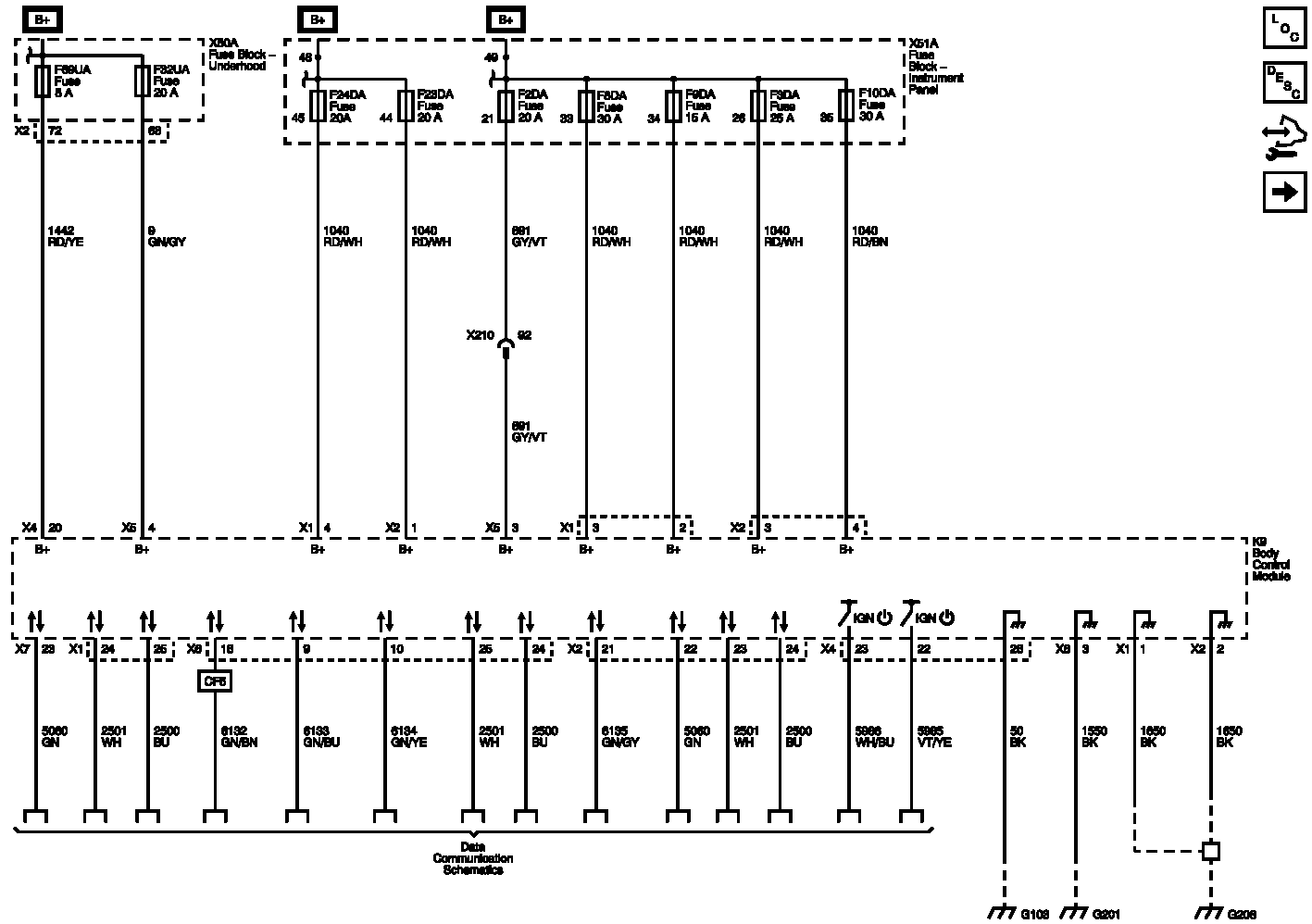

Fig 1: Power, Ground and Serial Data Wiring Schematics
GM2611726Courtesy of GENERAL MOTORS COMPANY
