Linear Interconnect Network Wiring Schematics

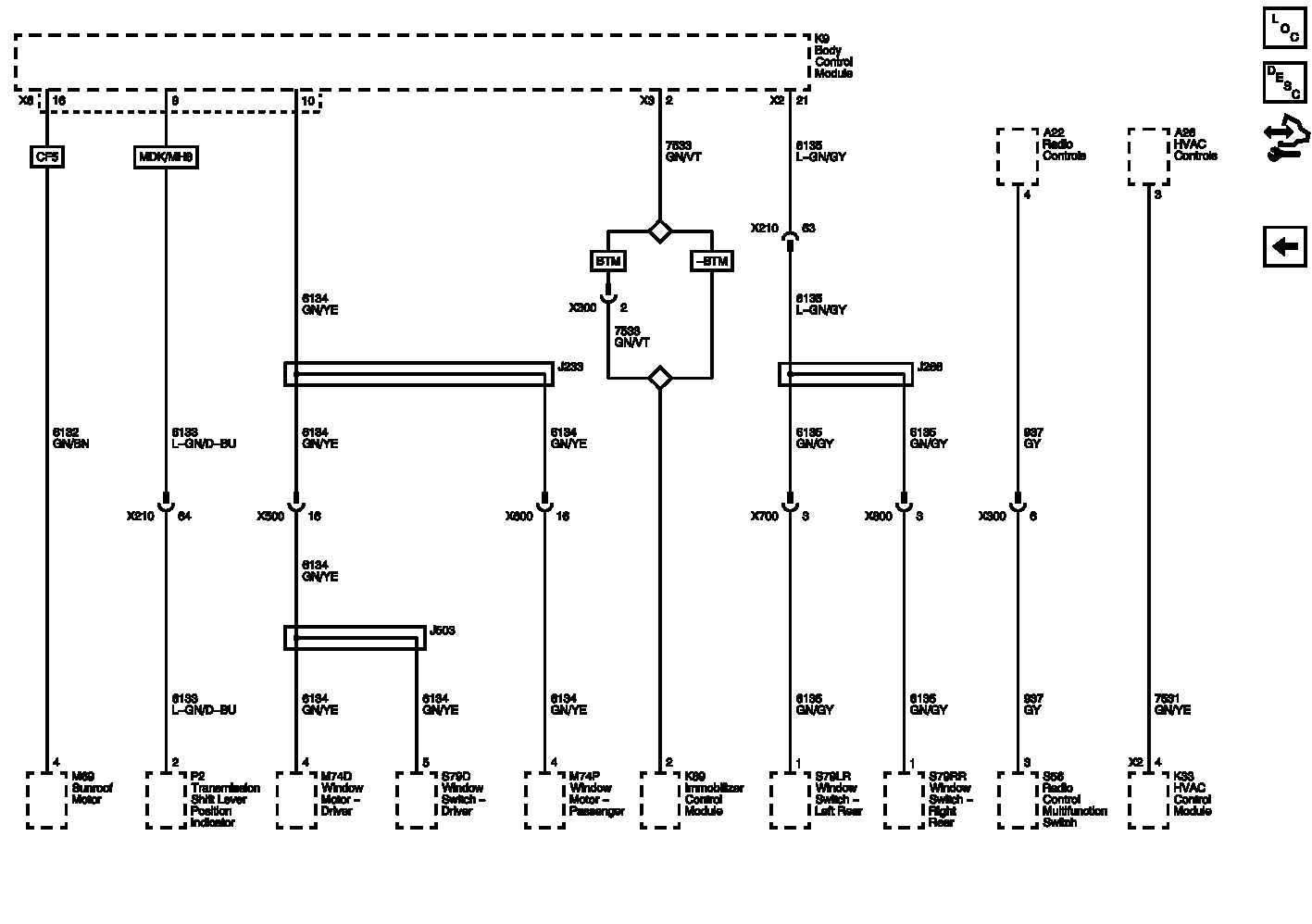

Fig 1: Linear Interconnect Network Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
