Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

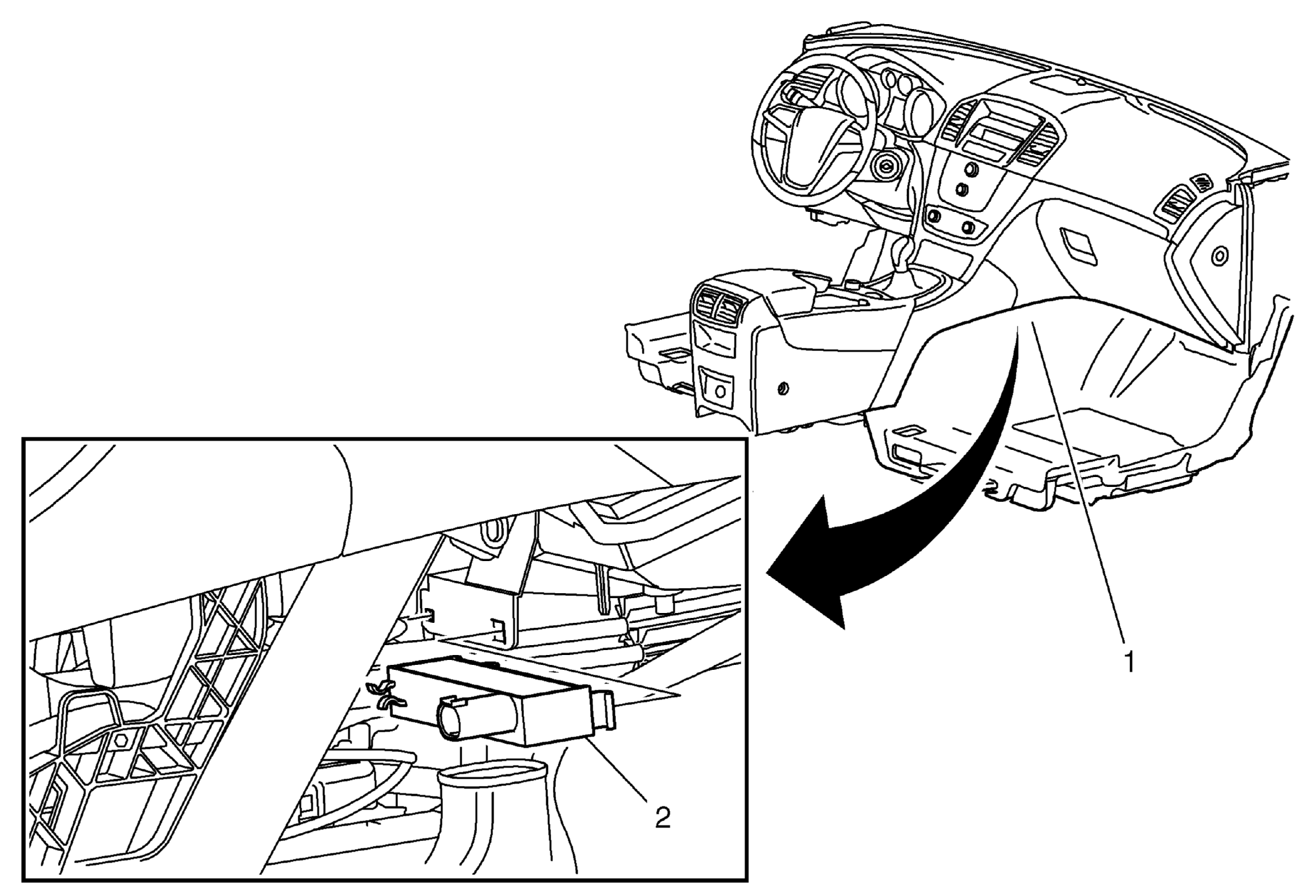

Fig 1: Ignition Lock Key Transmitter Antenna - Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1	Carpet
2	Ignition Lock Key Transmitter Antenna - Instrument Panel Procedure Release the carpet in the area of centre console - right side. Clip out the two fixing points. Disconnect the wiring harness connector of ignition lock key transmitter antenna. Remove the ignition lock key transmitter antenna.

Callout

Component Name

Preliminary Procedure:
Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .

Carpet

Ignition Lock Key Transmitter Antenna - Instrument Panel

Procedure

Release the carpet in the area of centre console - right side.
Clip out the two fixing points.
Disconnect the wiring harness connector of ignition lock key transmitter antenna.
Remove the ignition lock key transmitter antenna.
