Sunroof Air Deflector Cover Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

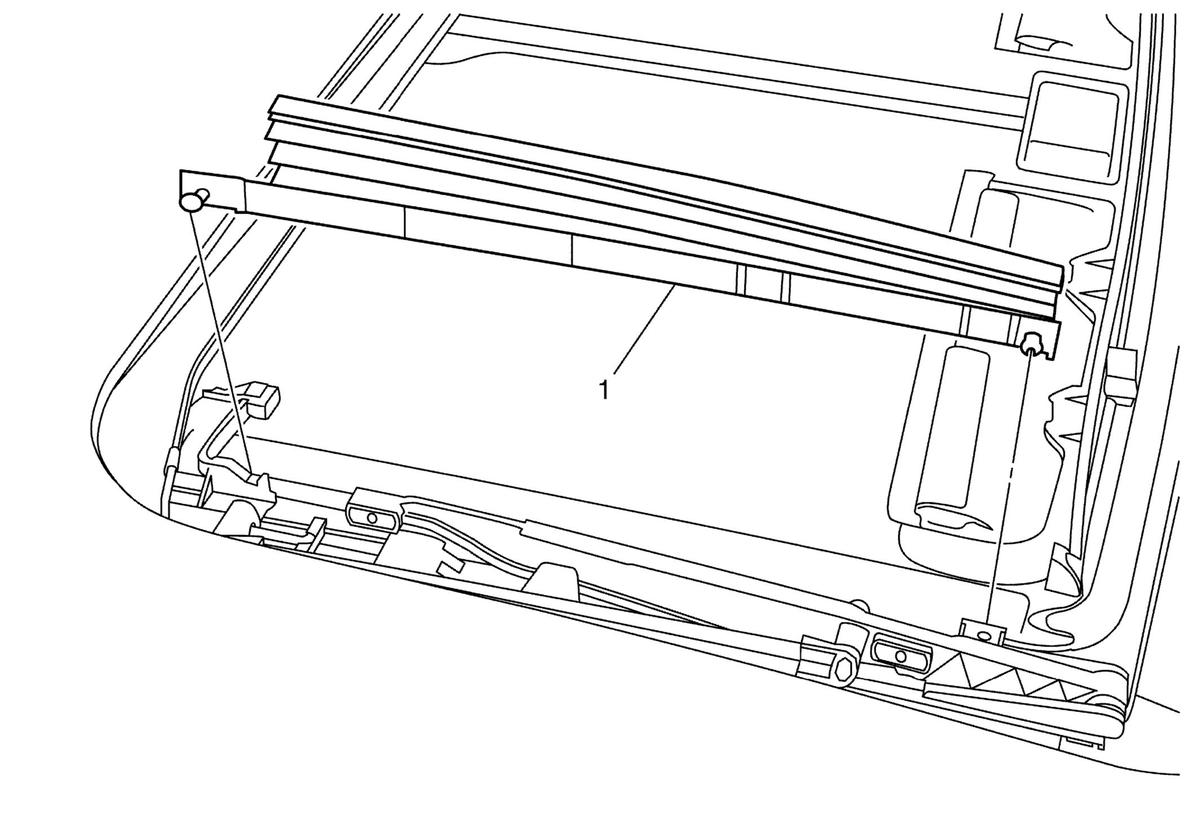

Fig 1: Sunroof Air Deflector Cover

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Air Deflector Cover Procedure Lift the sunroof window. Move the sunshade to the maximum rear position. Clip out the sunroof air deflector cover in front. Clip out the sunroof air deflector cover in rear.
