Sunroof Housing Drain Gutter Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

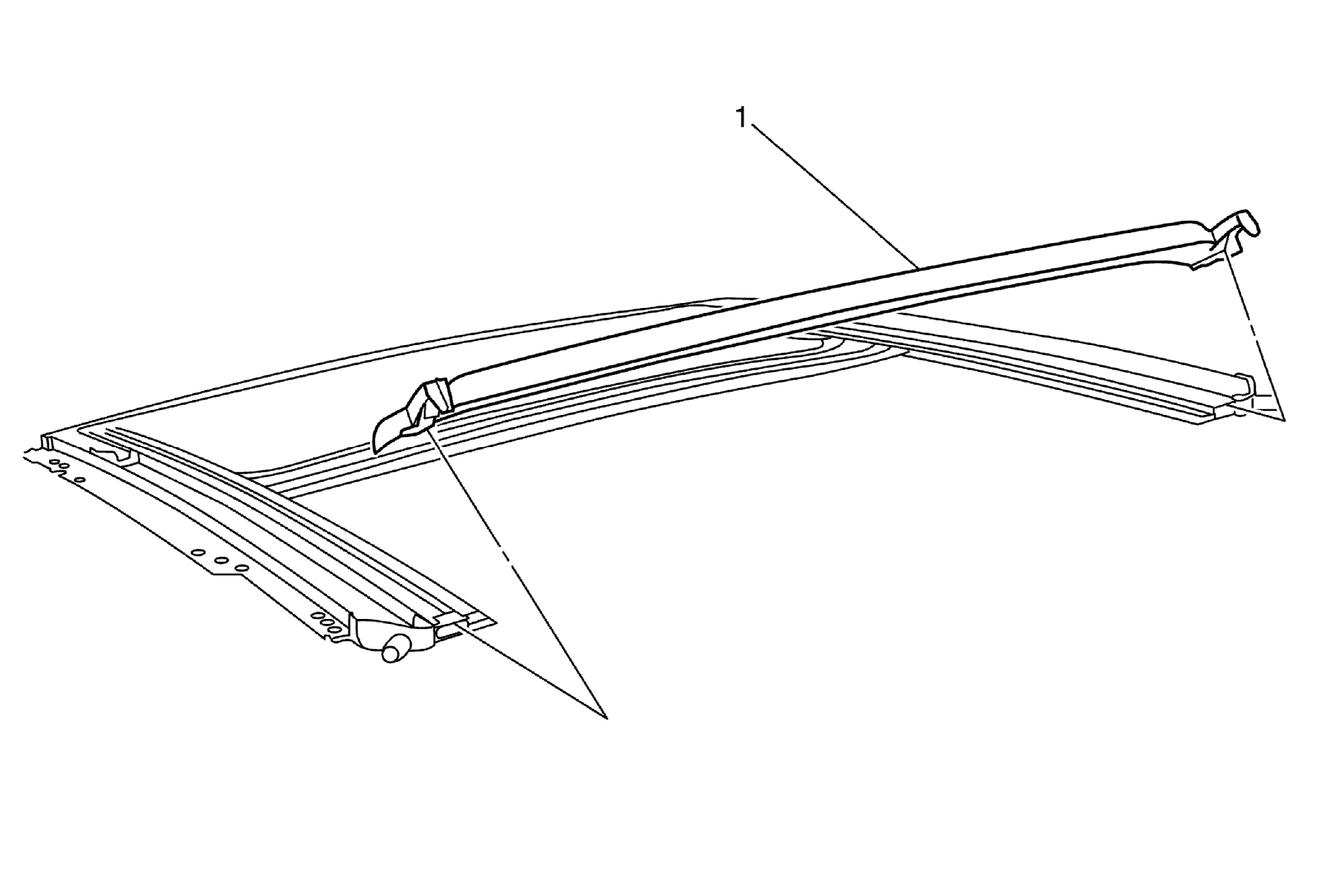

Fig 1: Sunroof Housing Drain Gutter

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove sunroof window front and rear windows. Refer to Sunroof Window Replacement - Front and Sunroof Window Replacement - Rear . Remove sunroof housing assembly. Sunroof Housing Replacement .
1	Sunroof Housing Drain Gutter Procedure Do not remove the motor or sunshades. Remove clips from the sunroof housing drain gutter bracket on the left and right side. Verify sunroof window height and opening fit adjustment. Refer to Sunroof Window Height and Opening Fit Adjustment .

Callout

Component Name

Preliminary Procedures

Remove sunroof window front and rear windows. Refer to Sunroof Window Replacement - Front and Sunroof Window Replacement - Rear .
Remove sunroof housing assembly. Sunroof Housing Replacement .

Sunroof Housing Drain Gutter

Procedure

Do not remove the motor or sunshades.
Remove clips from the sunroof housing drain gutter bracket on the left and right side.
Verify sunroof window height and opening fit adjustment. Refer to Sunroof Window Height and Opening Fit Adjustment .
