Sunroof Sunshade Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

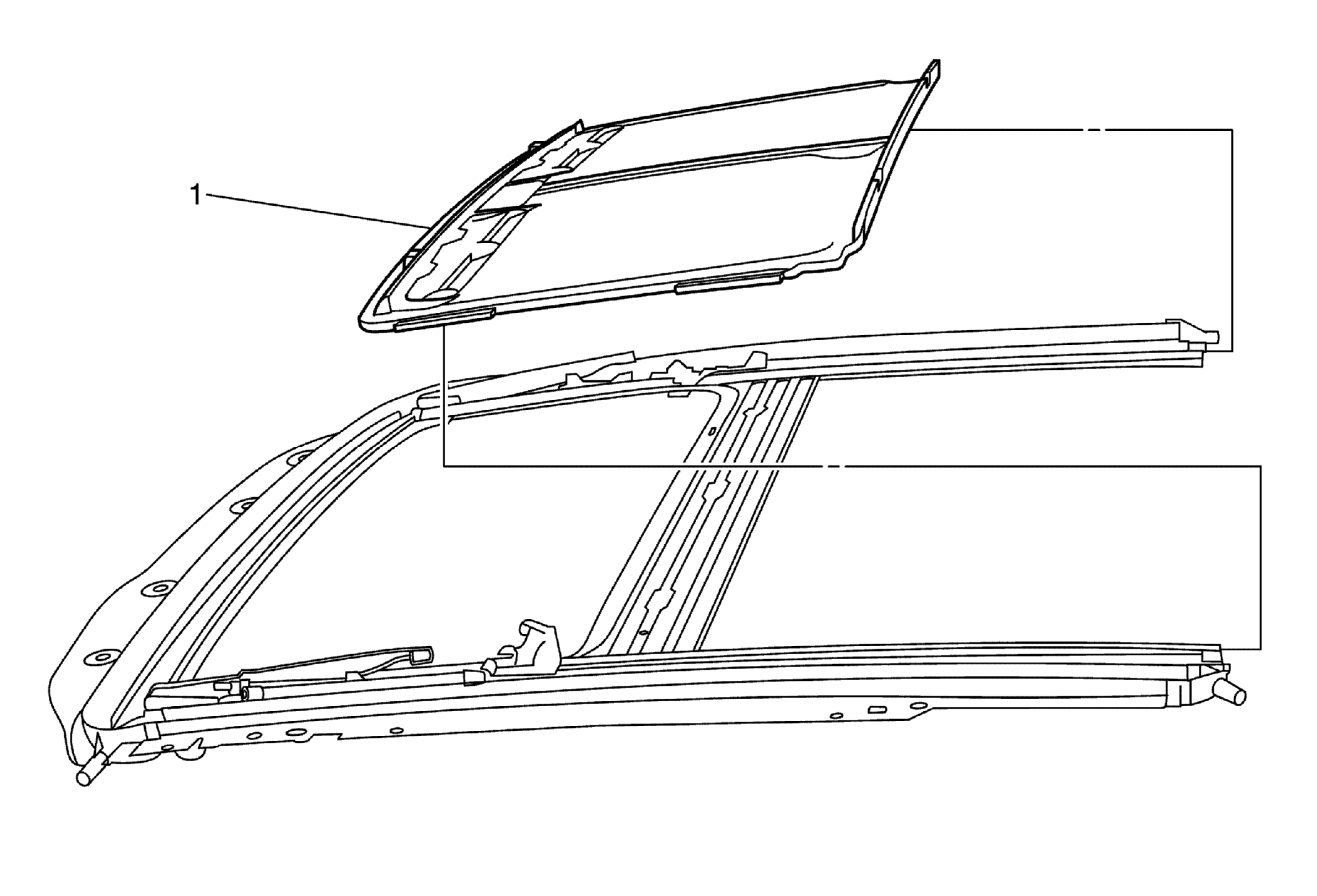

Fig 1: Sunroof Sunshade

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove front and rear sunroof window. Refer to Sunroof Window Replacement - Front and Sunroof Window Replacement - Rear . Remove the sunroof housing assembly. Refer to Sunroof Housing Replacement .
1	Sunroof Sunshade Procedure Remove the 2 rear sunroof housing assembly brackets. Move the sunroof sunshade rearward out of the sliding rail.

Callout

Component Name

Preliminary Procedures

Remove front and rear sunroof window. Refer to Sunroof Window Replacement - Front and Sunroof Window Replacement - Rear .
Remove the sunroof housing assembly. Refer to Sunroof Housing Replacement .

Sunroof Sunshade

Procedure

Remove the 2 rear sunroof housing assembly brackets.
Move the sunroof sunshade rearward out of the sliding rail.
