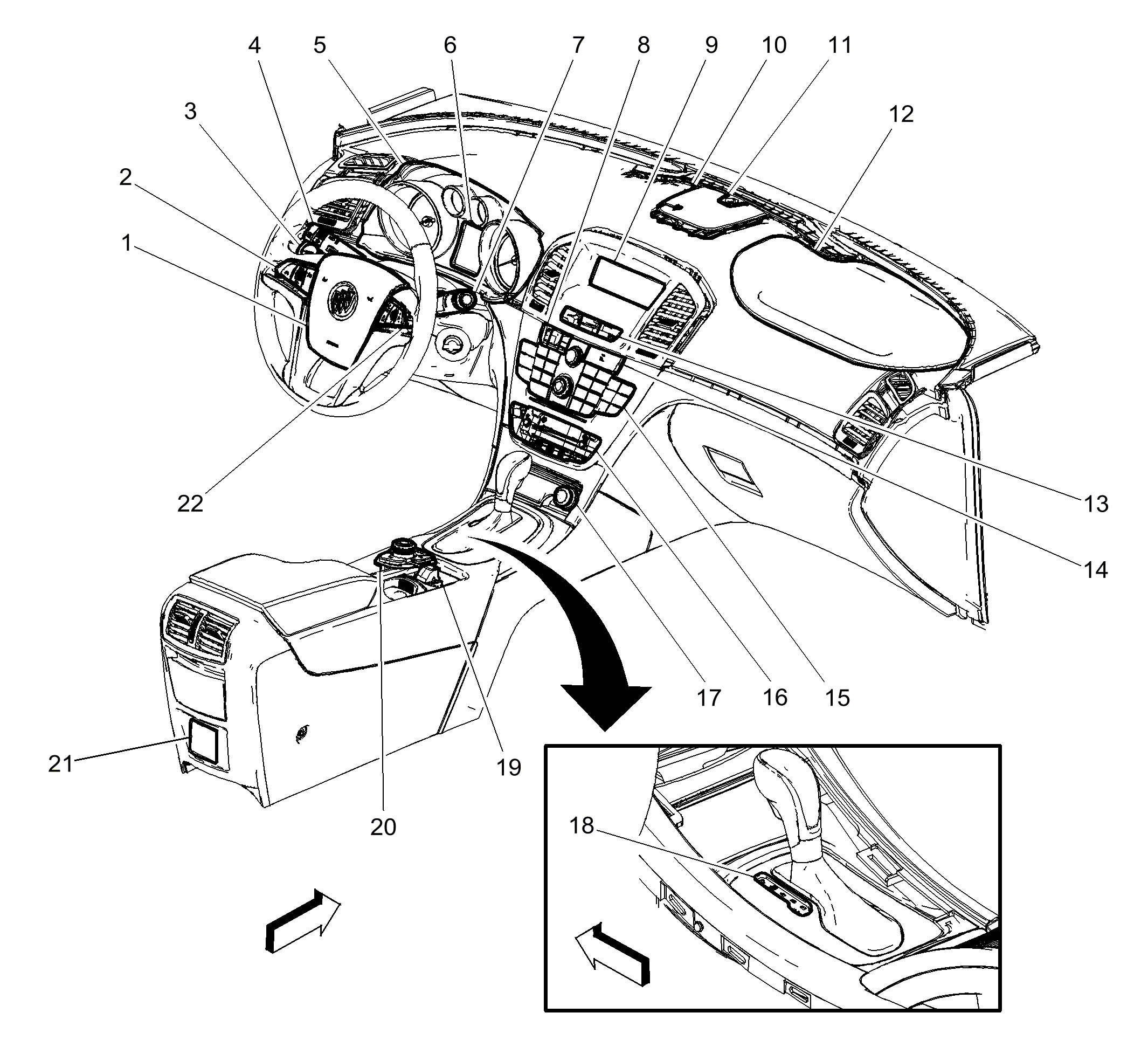

Instrument Panel and Floor Console Components
Instrument Panel and Floor Console Components
| Component Name | Callout |
|---|---|
| F107 Steering Wheel Air Bag | 1 |
| S70L Steering Wheel Controls Switch - Left | 2 |
| S30 Headlamp Switch | 3 |
| S78 Turn Signal/Multifunction Switch | 4 |
| P16 Instrument Cluster | 5 |
| P9 Driver Information Center Display | 6 |
| S82 Windshield Wiper/Washer Switch | 7 |
| S48D Multifunction Switch 2 - Instrument Panel | 8 |
| P17 Info Display Module | 9 |
| P19B Speaker - Center Instrument Panel | 10 |
| B10B Ambient Light/Sunload Sensor | 11 |
| F105 Passenger Instrument Panel Air Bag | 12 |
| S48C Multifunction Switch 1 - Instrument Panel | 13 |
| S107 Parking Assist Disable Switch | 14 |
| A22 Radio Controls | 15 |
| A26 HVAC Controls | 16 |
| X80G Accessory Power Receptacle - Instrument Panel | 17 |
| P2 Transmission Shift Lever Position Indicator | 18 |
| S91 Park Brake Control Switch | 19 |
| S56 Radio Control Multifunction Switch | 20 |
| X81 Accessory Power Receptacle - 110V AC | 21 |
| S70R Steering Wheel Controls Switch - Right | 22 |
